Description

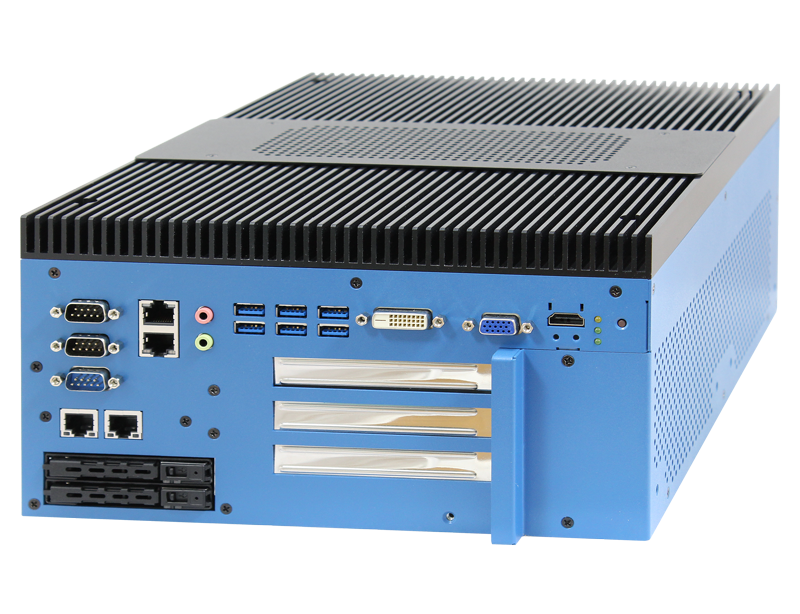

AIS-7000-P is an Autonomous Driving Controller and Autonomous Driving Servers computer that is built for AI edge applications. It has a 10th Generation Intel Core Xeon/i9/i7 Processor (Comet Lake) and runs on Intel W480E chipset, with a maximum TDP of 80W. The computer supports up to 64GB of DDR4 3200 SODIMM memory (Non-ECC) and has 2 GigaLAN ports and 6 USB 3.2 Gen2 ports. There is 1 PCIe x16 slot and 1 PCIe x4 slot for expansion, and it can support one NVIDIA RTX 30 series graphics card with a maximum power of 320W. The AIS-7000-P also has CAN Bus support and two front-accessible 2.5" SATA III storage bays. It runs on 9-50Vdc power with in-vehicle power ignition control and a maximum power input of 500W, and has 2 RJ45 Type PoE ports.
  Ask an Expert  >





 I/O Connectors
 Acrosser Academy

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 Features

● Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3
   Processor (CML-S) running with Intel® W480E chipset supports max 80W
   TDP CPU
● Support 2 DDR4 3200 SODIMM, up to 64GB (Non-ECC)
● Support 2 GigaLAN, 6 USB 3.2 Gen2
● Support 1 PCIe x16, 1 PCIe x4 expansion slots
● Could Spports one NVIDIA RTX 30 series graphics cards (Max.320W)
● CAN Bus Provide
● Two Front Easy Access 2.5” SATA III Storage Bay
● 9-50Vdc Power Input w/in-vehicle Power Ignition Control, up to 500W Power
   Input
● 2 RJ45 Type PoE ports



Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 System
 CPU  Intel® 10th Gen. Xeon®/Core™ i9/i7 Processor, support max 80W TDP CPU, socket type, LGA1200
 Chipset  Intel® W480E
 Memory  2 x 260 PIN DDR4-3200 SODIMM supports up to 64GB
 (Up to 32GB per socket)
 Video
 Graphic
 Controller
 Intel® UHD Graphics 630
 Interface  1 VGA, 1 DVI-D, 1 HDMI1.4b
 Storage
 SATA   2 SATA III (6Gbps) support S/W RAID 0, 1
 M.2  1 M.2 Key M Socket (2280) NVMe SSD (Internal)
 Storage Device  2 Front-access 2.5" SSD/HDD Tray
 I/O
 LAN  LAN 1 : RJ45 Type Intel® I210IT GigE LAN
 LAN 2 : RJ45 Type Intel® I210IT GigE LAN
 Serial  4 DB9 Type RS-232/RS422/485
 USB  6 Type A USB 3.2 Gen2
 DIO  4DI,4DO, DB15 Type connector
 Audio  1 Mic-in, 1 Line-out
 CAN BUS  1 DB9 CANBus
 PoE  2 RJ45 Type PoE ports, Complies with IEEE 802.3af,up to 15.4W at 48V per PoE port-Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
 LED  Power, HDD, Status
 Button  1 Power Press Button
 Antenna Hole  7 Antenna Holes
 Expansion
 Mini PCIe  2 x Full Size Mini PCIe Slots
 M.2  1 x M.2 B Key(3042)
 SIM Slot  1 SIM Slot (Internal)
 PCIe Slot  1 PCIe[x16] Slot, 1 PCIe[x4] Slot
 Others
 TPM    Optional By Request
 Watchdog Timer  255 Levels
 Smart
 Management
 Wake on LAN, PXE supported
 HW Monitor  Monitoring temperature, voltages. Auto throttling control
 when CPU overheats.
 Software
 OS Support  Windows 10, Linux
 Power Requirement
 Power Input  9V to 55V, DC-in
 Power Interface  3-pin Terminal Block : V+, IGN, V- With Power Ignition
 Control
 Mechanical & Environment
 Dimension  TBD
 Weight  TBD
 Mounting  Wallmount
 Operating
 Temperature
 35W TDP CPU : -30°C to 60°C
 65W TDP CPU : -30°C to 50°C
 80W TDP CPU : -30°C to 40°C with system fan
 When Install Graphics Card: -20°C to 45°C with system fan
 Storage Temp  -40°C to 85°C (-40°F to 185°F)
 Humidity  5% to 90% Humidity, non-condensing
 Shock  IEC 60068-2-27
 SSD : 50G @ wallmount, Half-sine, 11ms
 Vibration  IEC 60068-2-64
 SSD : 5Grms, 5Hz to 500Hz, 3 Axis
 EMC  CE / FCC class A/ E-Mark
 Packing List
 ● 1 x AIS-7000-P
 ● 2 x Wall mount bracket
 ● 1 x Terminal block
 ● 1 x Screws Package
 ● 1 x GPU fixing kit
 CPU List
 Series  CPU  GHz  TDP (W)  ECC RAM
 Intel® Xeon®  W-1290TE  4.5  35   Yes
 W-1270E  4.8  80
 W-1270TE  4.4  35
 W-1250E  4.7  80
 W-1250TE  3.8  35
 Intel® Core™  9-10900E  4.7  65   NA
 i9-10900TE  4.5  35
 i7-10700E  4.5  65
 i7-10700TE  4.4  35
 Order Information
 AIS-7000-01P AIS-7000-01P, Socket Type CPU Platform,2 PCIe, CANBus, PoE
 AIS-7000-02P AIS-7000-02P, Socket Type CPU Platform,2 PCIe, CANBus, PoE, With System Fan
 Optional Accessory
 DDR4 32G  Certified DDR4 32GB 3200MHz RAM(Non-ECC)
 DDR4 16G  Certified DDR4 16GB 3200MHz RAM(Non-ECC)
 DDR4 8G  Certified DDR4 8GB 3200MHz RAM(Non-ECC)
 DDR4 4G  Certified DDR4 4GB 3200MHz RAM(Non-ECC)
 5G Module  5G & GNSS Module with Dual Antenna
 4G Module  4G & GNSS Module with Dual Antenna
 WiFi & Bluetooth   Module  WiFi & Bluetooth Module with Dual Antenna

*Please adopt wide operation temperature RAM, SSD, HDD to get better and stable system performance.
*If customer want to install CPU TDP up to 80W or high level GPU card, we will suggest to choose system sku with system fan version to get better therma l solution and system performance.


Specifications are subject to change without notice.
