| CPU |
Intel® Celeron® Bay Trail J1900, Quad-core, clock speed 2.0GHz |
| Memory |
1 x 204-pin SO-DIMM socket support 1600MHz DDR3L
up to 8GB |
| BIOS |
AMI UEFI |
| WatchDog Timer |
Software programmable 1~255 sec. |
| Graphic Controller |
Integrated graphics support for processors with Intel Graphics Technology
|
| Video Interface |
1 x VGA (1 x internal header) |
| Chipset |
4 x Intel I211-AT LAN [1:4]
|
| Connector |
4 x RJ45 with LED |
| LAN bypass |
6LAN SKU : 2-pair (LAN3 & LAN4；LAN5 & LAN6)
4LAN SKU : 1-pair (LAN3 & LAN4) |
|
SATA
|
1 x SATAII port
|
|
mSATA
|
1 x mSATA
|
| HDD Bay |
1 x 2.5” HDD Bay |
| Console Port |
1 x Console (1 x RJ45) |
| USB |
2 x USB 2.0 |
|
Power Input
|
DC in 12V / 60W Adapter
|
|
OS Support
|
Linux Kernel 3.11 (32/64-bit)
|
|

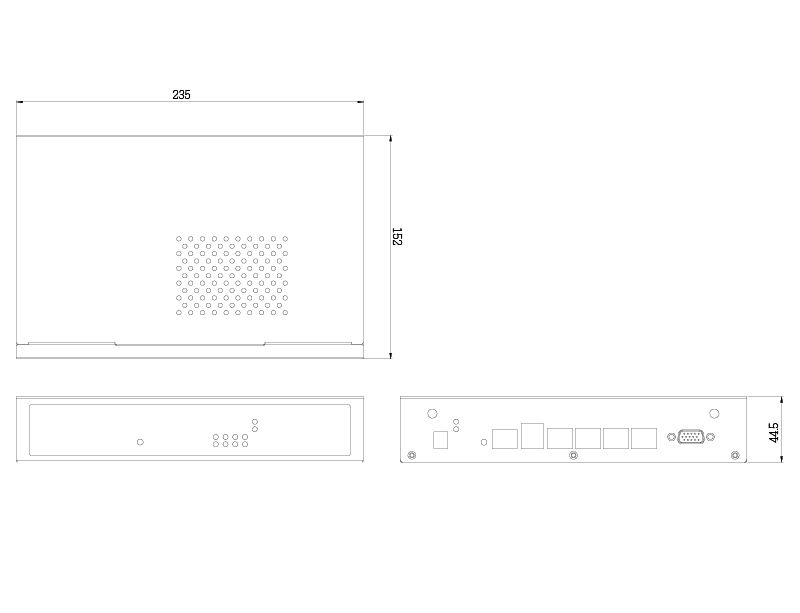

Dimension
|
235 x 152 x 44.5 mm
|
|
Operating Temp.
|
0~40°C
|
|
Storage Temp.
|
-20~80°C
|
|
Certifications.
|
CE,FCC class A, RoHS 2 |
| ● 1 x AND-J190N2-FS |
| ● 1 x Driver CD |
| ● 1 x Console Cable (DB9) |
| ● 1 x SATA Cable |
| ● 1 x SATA Power Cable |
| ● 1 x Power Adaptor |
| ● 1 x Power Cord (Option for USA/UK/EU/JPN/AU/RSA/IND) |
| AND-J190N2-FS |
8GB DDR3L-1600 memory (non-ECC SO-DIMM)
|
| AND-J190N2-FS |
Intel® Celeron® Bay Trail J1900 Networking
Microbox, DDR3L, GbE, USB 2.0, SATA II,
mSATA, CF
|
Specifications are subject to change without notice.
|
