The ANR-J190N2-C612 or ANR-J180N2-C612 is a 1U rackmount platform in networking
appliance designed with Intel®Celeron® J1900 quad-core 2.00GHz, or J1800 dual-core 2.41GHz CPU, and 6x or 4x GbE LAN ports supporting up to 2 pairs bypass function.

1. Intel® Celeron® Bay Trail J1900/J1800
2. 1 x 204-pin DDR3L-1333 MHz, 1 x SO-DIMM Slot, Up to 8GB
3. 6 x GbE, 2 x USB
4. 1 x Mini PCIe Expansion
5. 2 x COM
6. 8 x GPIO



System
 CPU  1. Intel® Celeron® Bay Trail J1900, Quad-core, clock speed 2.0GHz
 2. Intel® Celeron® Bay Trail J1800, Dual-core, clock speed 2.41GHz
 Memory  1 x 204-pin SO-DIMM socket support 1600MHz DDR3L up to 8GB
 BIOS  AMI UEFI
 WatchDog Timer  Software programmable 1~255 sec.



Video
 Graphic Controller  Integrated graphics support for processors with Intel Graphics Technology
 Video Interface  1 x VGA (1 x internal header)



 Ethernet
 Chipset  6 x Intel GbE chip
 Connector   6 x RJ45 with LED
 LAN bypass  Yes (2-pair: LAN3&LAN4, LAN5&LAN6)



Storage
 SATA  1 x SATAII port
 CF  1 x Compact Flash Type II socket
 HDD Bay  1 x 2.5” HDD Bay



 I/O
 Expansion  1 x mini PCIe slot
 Console Port  1 x Console (1 x RJ45)
 USB  2 x USB 2.0



 Power Requirement
 Power Input   Internal 250W power supply, input range 100V AC
  60Hz ~ 240V AC 50Hzz



 Software

 OS Support

 1. Windows 7 (32/64-bit)
 2. Linux Kernel 3.11 (32/64-bit)



 Mechanical & Environment

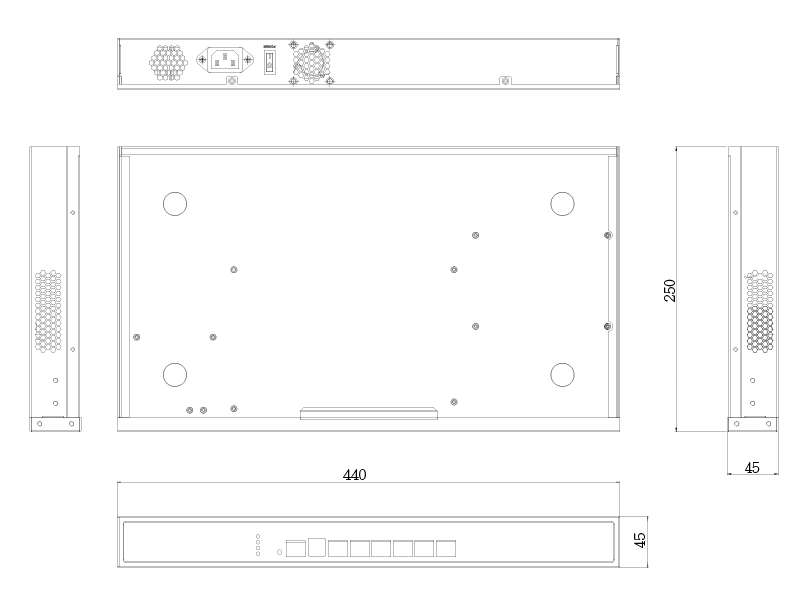

 Dimension  440 x 250 x 45 mm
 Operating Temp.  0~40°C
 Storage Temp.  -20~80°C
 Safety  CE, FCC class A



Packing List
 ● 1 x ANR-J190N2/J180N2-C612 system
 ● 1 x Driver CD
 ● 1 x Console Cable (DB9)
 ● 1 x SATA Cable
 ● 1 x SATA Power Cable
 ● 2 x Bracket Ears
 ● 1 x Power Cord (Option for USA/UK/EU/JPN/AU/RSA/IND)



 Option
 ANR-J190N2-C612
 ANR-J180N2-C612
 2GB DDR3L-1333 memory (non-ECC SO-DIMM)
 4GB DDR3L-1333 memory (non-ECC SO-DIMM)
 8GB DDR3L-1333 memory (non-ECC SO-DIMM)



 Ordering Information
 ANR-J190N2-C612
 ANR-J180N2-C612
 Intel® Celeron® Bay Trail J1900/J1800 Networking
 1U Rackmount, DDR3L, GbE, USB 2.0, SATA II,
 CF, Mini PCIei PCIe

Specifications are subject to change without notice.
