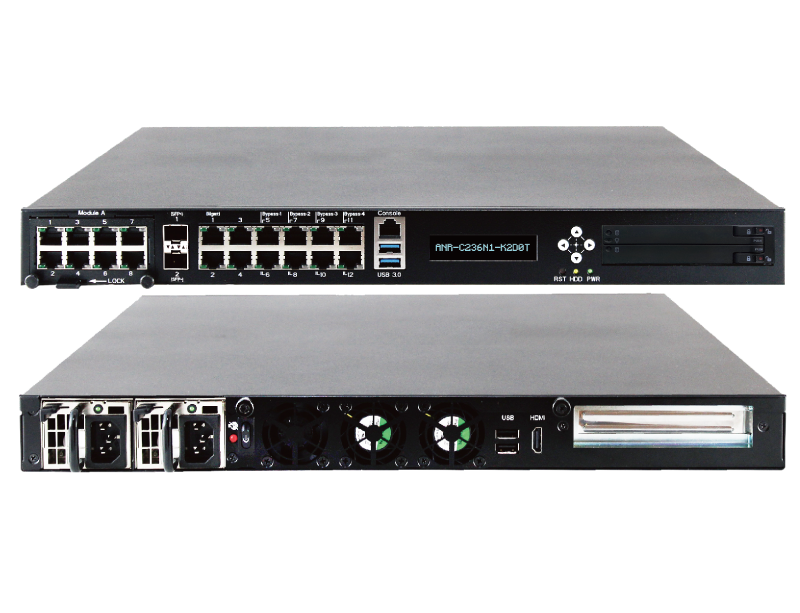

ANR-C236N1, a powerful 1U rackmount server with a unique Dual-Protection feature that allows simultaneously supporting both hot swappable HDD/SSD and the highly effective redundant power supply. This Dual-Protection can eliminate unnecessary failures, reduce the chance of system errors, and improve server efficiency, as well as the IT staff efficiency.

Whether it is the web server, mail server, UTM, or any other network application platform, stability and reliability are absolutely the first 2 priority considerations for buyers. Even for a short period, mechanical failure will cause great loss in business.

To meet these needs, the new and powerful Acrosser ANR-C236N1 series server comes with its unique Dual-Protection feature which protects your server/network to run safely 24/7. The ANR-C236N1 is equipped with a hot-swappable HDD/SSD for RAID 0/1 which allows your IT staff to remove the malfunctioning HDD/SDD without shutting down the machine, thereby eliminating machine downtime. The other feature of Dual-Protection is the ANR-C236 is also equipped with 1+1 redundant power supply units (RPSU) which avoids unexpected power failure and increases the power supply product life by balancing the power output.

1.  Intel® C236 Platform
2.  Intel® Xeon® E3-1275 Family v6
3.  Intel® 7th Gen CPU Kabylake-S Core™ i7/i5/i3
4.  4 x UDIMM DDR4-2400, ECC/non-ECC, (up to 64GB)
5.  1 x Exp. NIM (1G/10G/40G Fiber/Copper/LAN Bypass)
6.  2 x SFP+ (10G Fiber)
7.  12 x GbE Copper (4-pair bypass) & 1 Mgmt. port
8.  2 x 2.5" Hot-swappable (RAID 0/1), 1 x mSATA & 1 x CFast
9.  3 x Smart cooling fan
10. 1+1 Redundant PSU

 System
 CPU  Intel® Xeon® E3-1275 v6
 Intel® 7th Gen CPU Kabylake-S Core™ i7-7700
 Intel® 7th  Gen CPU Kabylake-S Core™ i5-7500
 Intel® 7th  Gen CPU Kabylake-S Core™ i3-7101E
 Chipset  Intel® PCH C236
 Memory  4 x 288-pin UDIMM DDR4-2400, ECC/non-ECC,(up to 64GB)
 BIOS  AMI
 WatchDog Timer  Software programmable 0~255 sec.



Video
 Video Interface

 HDMI 1.4



 Ethernet
 Chipset

 Intel® I210/I350 (10/100/1000Mbps), LAN[1:8] /
 LAN[9:12]
 Intel® X710-BM2 (10G Fiber), SFP+[1:2]

 Connector   12x GbE Copper (RJ-45)
 2x 10G Fiber (SFP+)
 LAN bypass  4-pair



Storage

 mSATA

 1 x mSATA socket (support full-size module)

 CFast

 1 x CFast socket

 HDD Bay  2 x 2.5” SATA-III Hot-swappable (RAID 0/1)



 I/O
 Console port  1 x Serial console (RJ-45)
 USB port  2 x USB 3.0 (front-side)
 2 x USB 2.0 (rear-side)
 LCM

 16 x 2 characters LCM with 4-key button

 GPIO  8-bit GPIO (4-In, 4-Out), on-board pin header
 Exp. NIM

 1 x Exp. NIM(1G/10G/40G, Fiber/Copper/LAN Bypass)

 Exp. PCIe slot  1 x Exp. PCIe slot
 OPMA slot

 1 x OPMA slot (for IPMI 2.0 module, by project)



 Power Requirement

 Power Supply Unit

  1+1 Redundant PSU (250-300W) 100-240VAC



 Software

 OS Support

 Linux Kernel 4.4 or above, (64-bit)



 Mechanical & Environment

 Dimension

 440 (W) x 44 (H) x 500 (D) mm

 Operating Temp.

 0~ 40°C (32~104°F)

 Storage Temp.

 -20~80°C (-4~176°F)

 Relative Humidity

 0 to 90% @40°C, non-condensing

Operating Temp.

 CE, FCC Class A, RoHS 2, cULus



 Packing List
 ● ANR-C236N1 series system x 1
 ● SATA cable x 2
 ● CD utility x 1
 ● Console cable (RJ-45 to DB9) x 1
 ● USA / EU / JPN / UK / AS / NZS / SA / India power cord x 2
 ● Rack bracket x 1
 ● Box packing x 1
 ● Screw pack x 1
 ● Slide Rail x 1



 Ordering Information
 ANR-C236N1-
 K2D0T
Networking 1U Rackmount
Intel® C236 PCH + Kabylake platform
1 Exp. NIM, 12 GbE LANs + 1 Mgmt., 2 SFP+
Redundant PSU
 ANR-C236N1-
 K2D00
Networking 1U Rackmount,
Intel® C236 PCH + Kabylake platform,
.1x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass)
.12x GbE LANs (4-pair bypass) + 1x Mgmt.
.1+1 Redundant PSU
 ANR-C236N1-
 K1D00
Networking 1U Rackmount,
Intel® C236 PCH + Kabylake platform,
.1x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass)
.12x GbE LANs (4-pair bypass) + 1x Mgmt.
.Single PSU,
Specifications are subject to change without notice.
