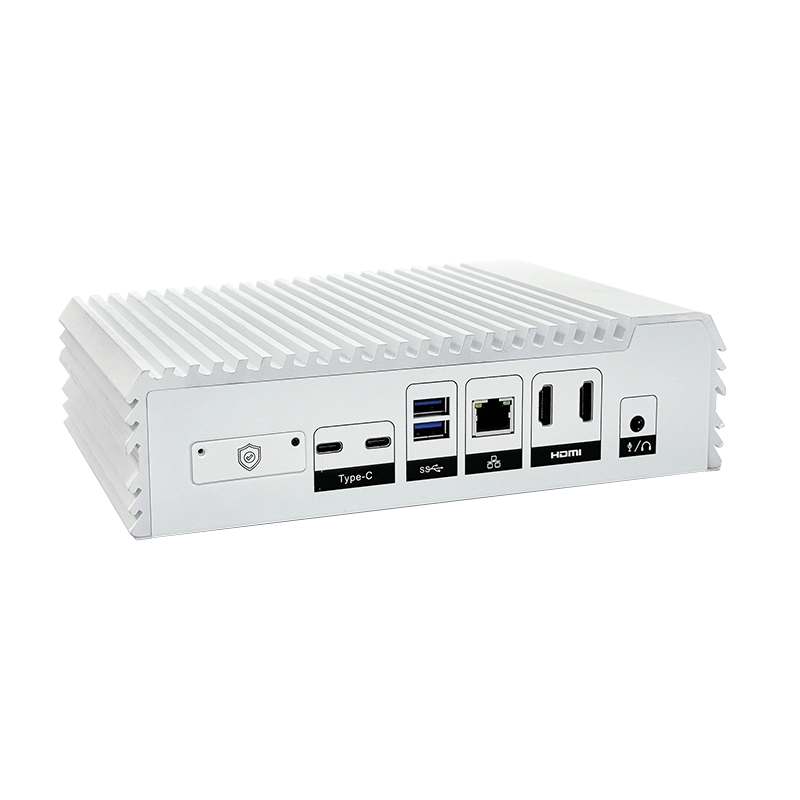

EAC-ENDO

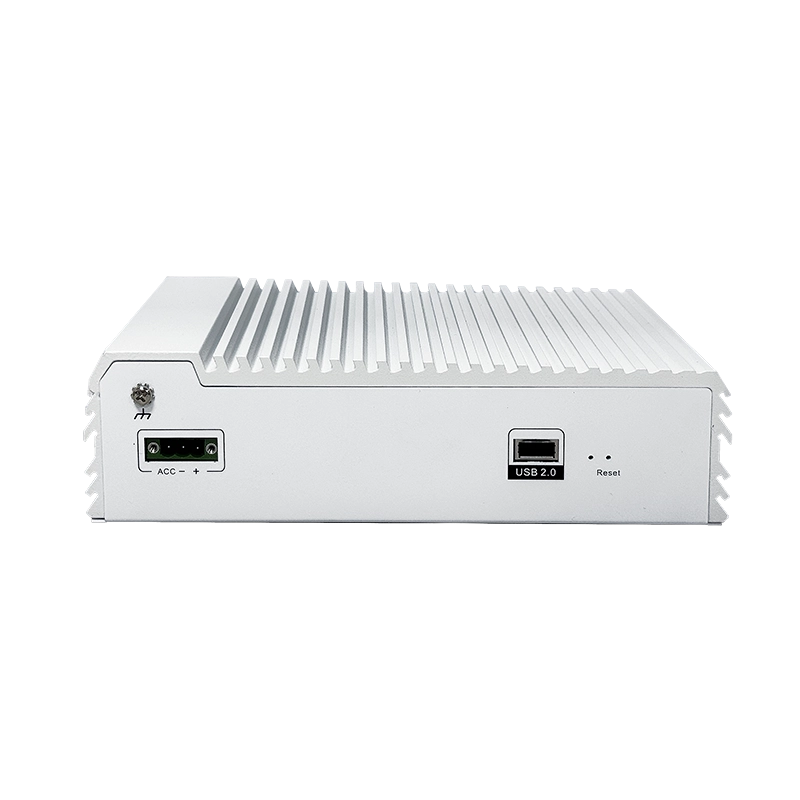

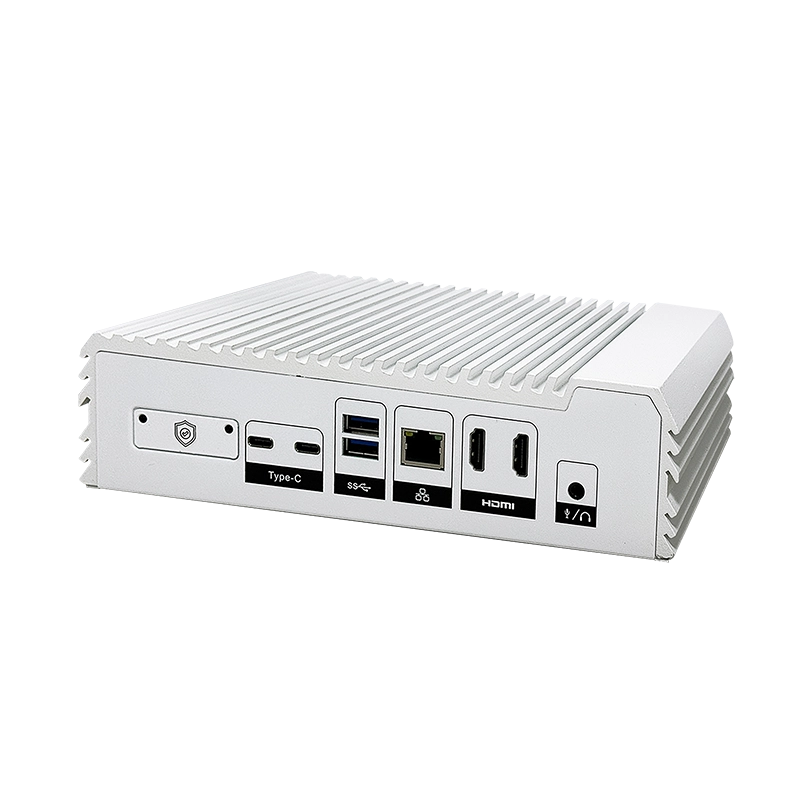

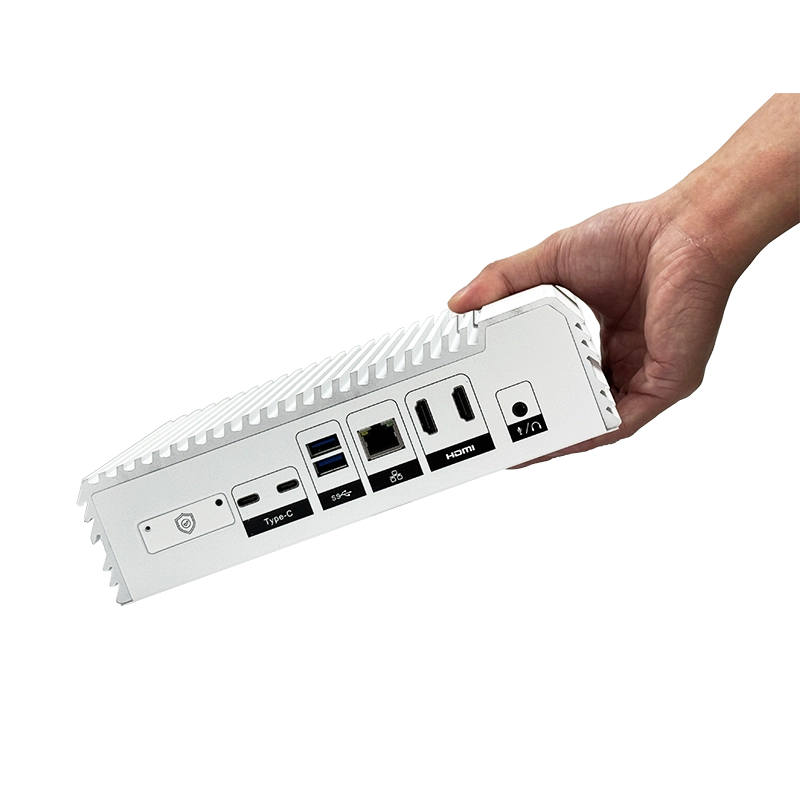

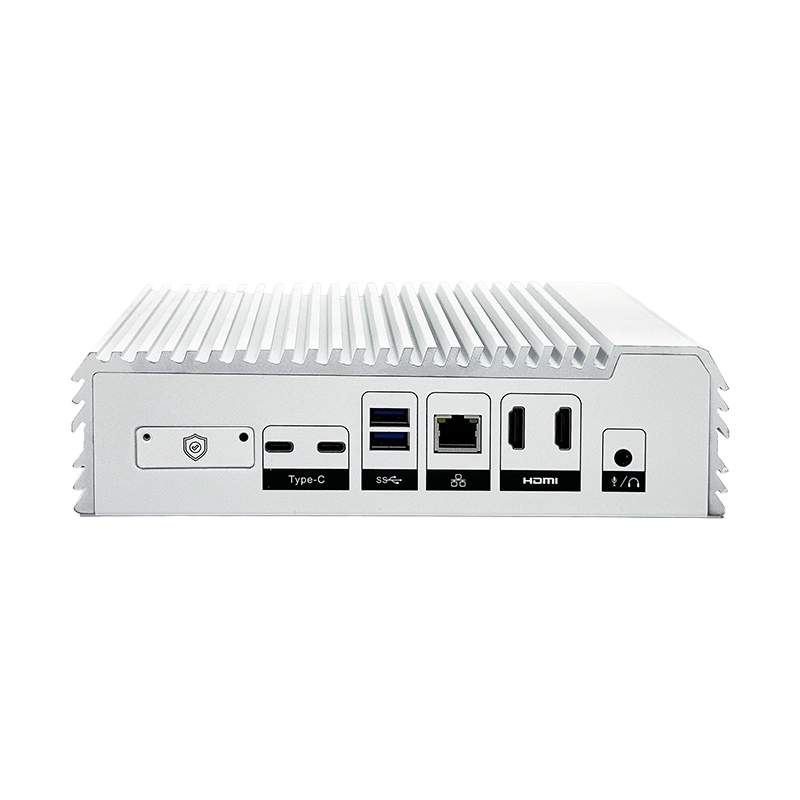

High Performance Edge Vision AI Platform with NVIDIA® Jetson AGX Orin™ [Preliminary Release]
• Powered by NVIDIA® Jetson AGX Orin™ Module
• GbE LAN, USB Type-C/Type-A, HDMI Input/Output
• Wide range power input 24 VDC
• GbE LAN, USB Type-C/Type-A, HDMI Input/Output
• Wide range power input 24 VDC
DOWNLOAD
Specification
System
| Model | NVIDIA® Jetson AGX Orin™ NVIDIA 8/12-core Arm® Cortex®-A78AE v8.2 |
| Memory | 32/64 GB 128-bit LPDDR5 DRAM |
| Storage | 1 x M.2 M-Key 2280, support NVMe |
| Real time clock | Yes |
| Wireless | 1 x M.2 E-Key 2230 |
| Operating System | Linux (NVIDIA JetPack 5.1.2 and above) |
Power Supply
| Power Requirement | 24 VDC |
| Power Consumption | TBD |
Environmental and Mechanical
| Dimension | 224 x 512 x 61 mm (8.81” x 20.15” x 2.4”) |
| Weight | TBD |
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 176 °F) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
Certification
| Regulations | CE, FCC |
Interface
| Ethernet | 1 x GbE LAN, RJ45 |
| USB | 2 x USB 3.2, Type-C, 2 x USB 3.2, Type-A, 1 x USB 2.0, Type-A |
| Display | 1 x HDMI 2.0-Input, 1 x HDMI 2.0-Output |
| Audio | Yes |
| Debug Port | 1 x Micro USB |
| Expansion Slot | 1 x SD Slot |
| Other Interface | 2 x Fan |

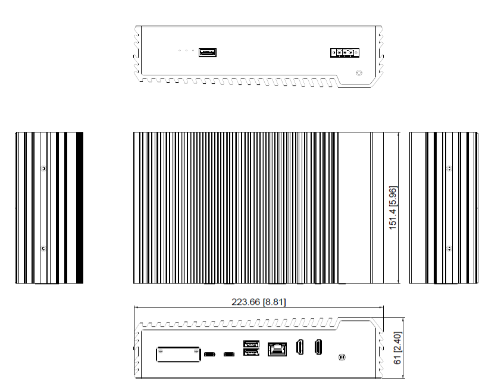

Dimension
