Edge Computing Systems

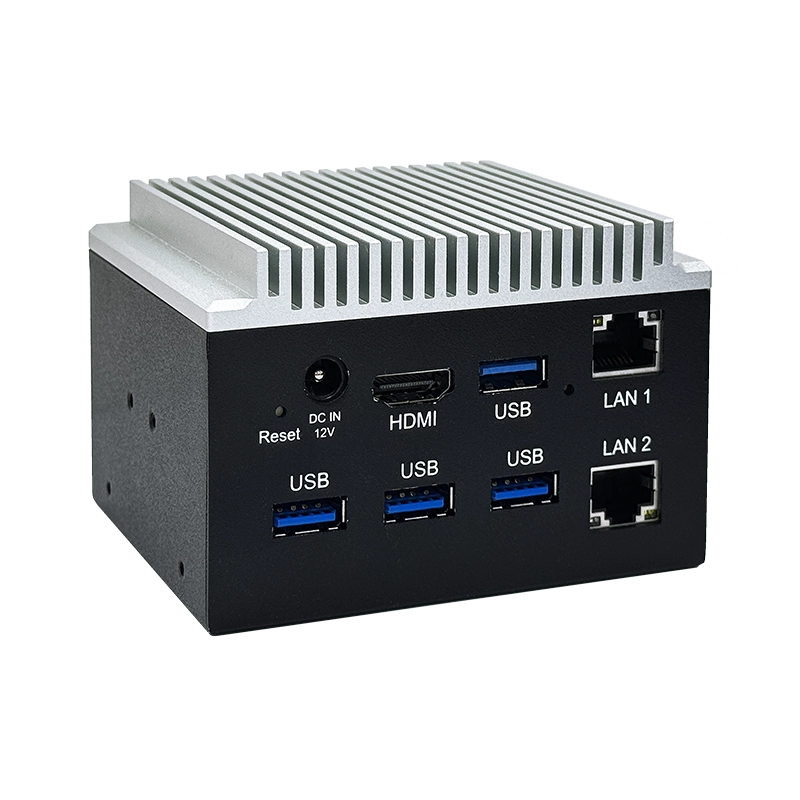

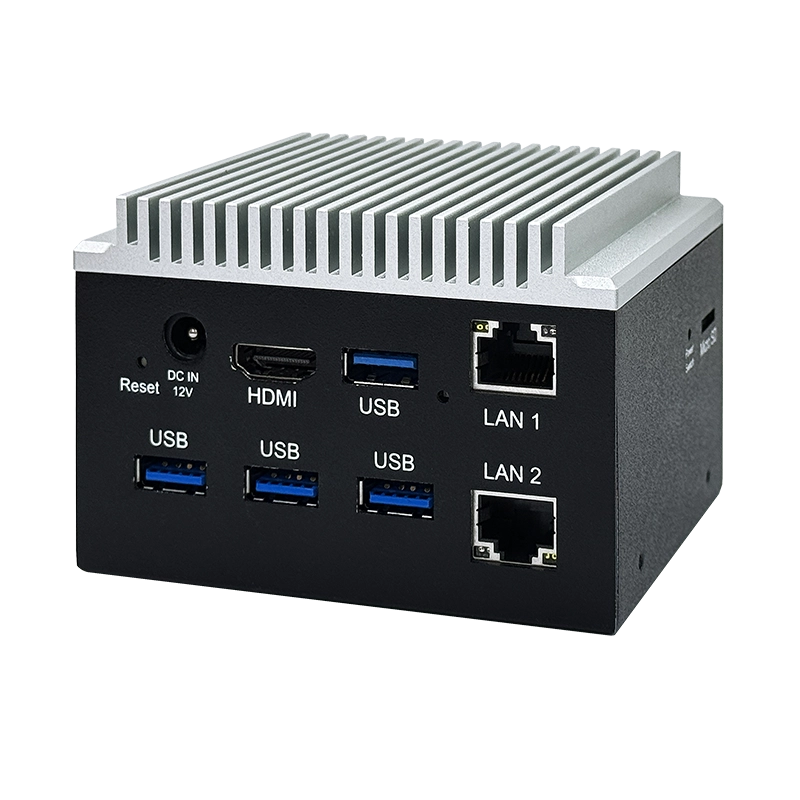

IES-10A0
Fanless Embedded Edge System with Intel® Atom X5-E3940
• Intel® Atom X5-E3940
• Onboard LPDDR4 4 GB
• Onboard eMMC 32 GB
• 12 VDC
• Support LAN, USB, Display
• Onboard LPDDR4 4 GB
• Onboard eMMC 32 GB
• 12 VDC
• Support LAN, USB, Display
DOWNLOAD
Specification
System
| CPU | Intel® Atom X5-E3940 Processor SoC, Intel® HD 500 Graphics |
| Memory | Onboard LPDDR4 4GB |
| Storage | eMMC 5.1 32GB |
| Real time clock | Yes |
| Thermal Design | Fanless design |
| Operating System | Windows 10 IoT Enterprise/Linux |
Power Requirement
| Input Voltage | 12 VDC |
| Power Consumption | 20 W (Full Loading) |
| Power Connector | 1 x 5.5 mm x 2.5 mm DC input |
Environmental and Mechanical
| Dimension | 80.28 x 95 x 63.6 mm (3.16” x 3.7” x 2.5”) |
| Weight | 0.45 kg |
| Mouting/Installation | Wall Mount, DIN Rail (Optional) |
| Operating Temperature | 0 ~ 60 °C (32 ~ 140 °F) |
| Storage Temperature | -40 ~ 80 °C (-40 ~ 176 °F) |
| Operating Humidity | 5% ~ 95% relative humidity (RH), non-condensing |
Certification
| Regulations | CE/FCC (with CE-RED), RoHs |

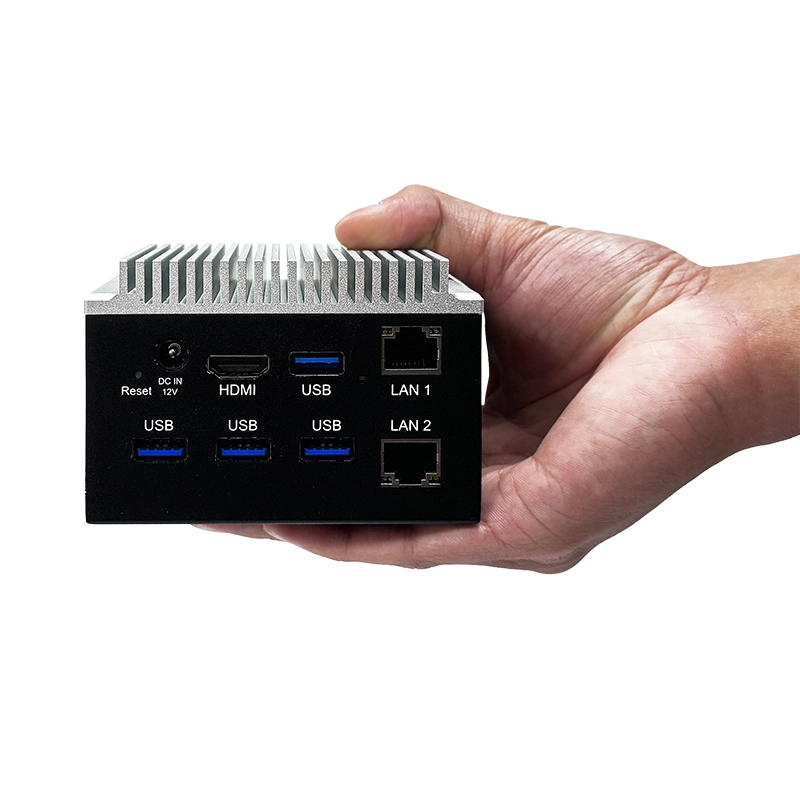

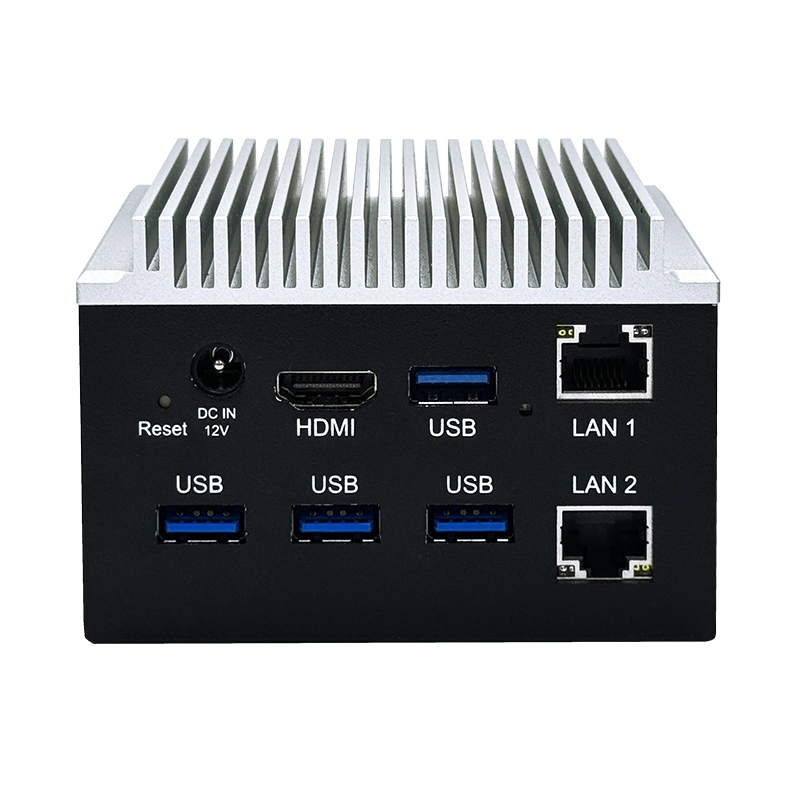

Interface
| Ethernet | 2 x RJ45 Intel® WGI210AT GbE LAN |
| USB | 4 x USB 3.0 (Type A) |
| Display | 1 x HDMI |
| Expansion Slot | 1 x mPCIe Connector, 1 x M.2 E-Key 2230, 1 x microSD Slot |
| SIM Slot | 1 x Nano SIM Card Socket |
| Other Interface | 1 x Power switch button, 1 x Reset switch button |

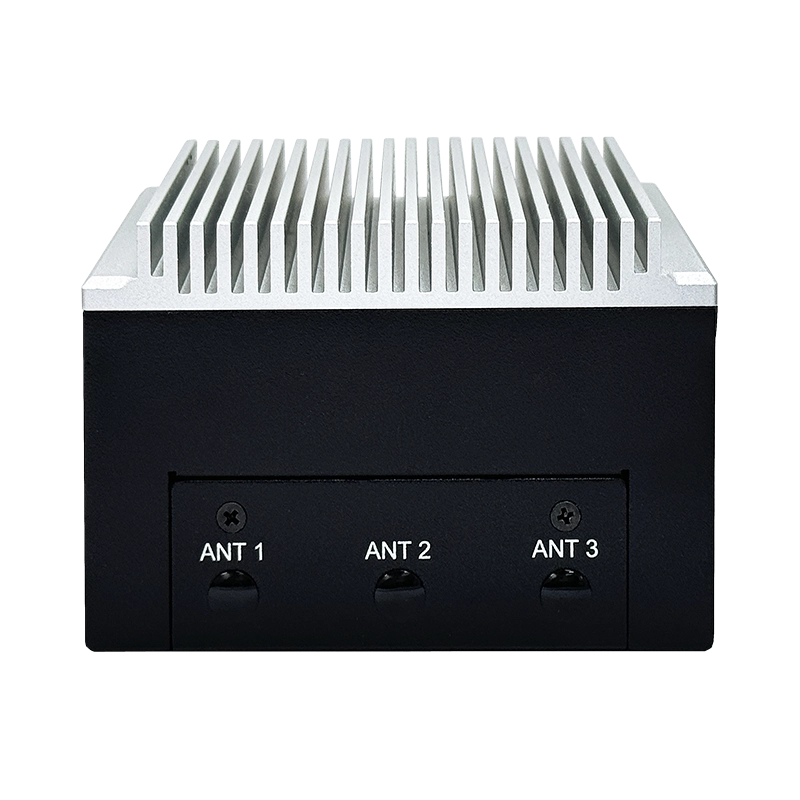

| Antenna | 3 x External Antenna holes |
Dimension
