AI Accelerator Compatible Computers

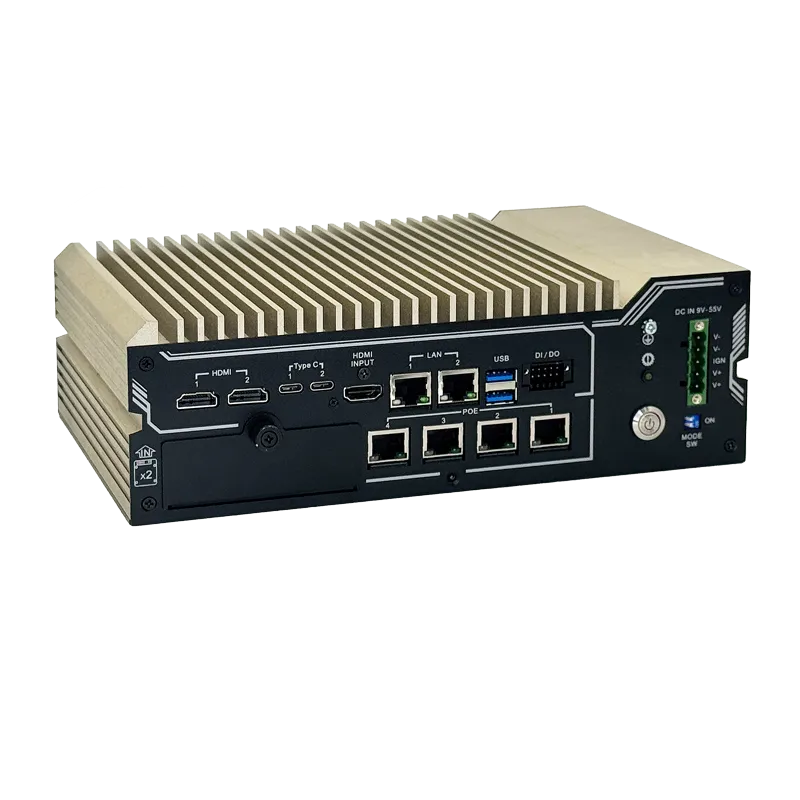

IVS-44U0
Fanless In-Vehicle Computer with Intel® Core™ Ultra 7 / Ultra 5
• Intel® Meteor Lake Ultra 7/5
• 1 x DDR5 SODIMM
• 9 ~ 55 VDC with Ignition
• TPM 2.0
• Support LAN, COM, USB, Display, DIO, CAN, POE
• Optional 4G LTE, 5G, Wi-Fi
• Fanless design
• 1 x DDR5 SODIMM
• 9 ~ 55 VDC with Ignition
• TPM 2.0
• Support LAN, COM, USB, Display, DIO, CAN, POE
• Optional 4G LTE, 5G, Wi-Fi
• Fanless design
DOWNLOAD
Specification
System
| CPU | Intel® Core™ Ultra 7-155U, Ultra 5-125U |
| Memory | 1 x DDR5 SODIMM up to 48 GB |
| Storage | 2 x Front-access 2.5” SSD Bay 1 x M-Key 2280, NVMe SSD |
| Real time clock | Yes |
| Security | TPM 2.0 |
| Thermal Design | Fanless design |
| Operating System | Ubuntu 22.04 LTS, Windows 10,11 (64-bit) |
Power Requirement
| Input Voltage | 9 ~ 55 VDC (Ignition) |
| Power Consumption | 60 W (typical) without PoE |
| Power Connector | 5 pin terminal block |
Environmental and Mechanical
| Dimension | 250(L) x 165(W) x 90(H)mm |
| Weight | 2.9kg |
| Mouting/Installation | bracket(s) for installation |
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -40 ~ 80 °C (-40 ~ 176 °F) |
| Operating Humidity | 5% ~ 95% relative humidity (RH), non-condensing |
Certification
| Regulations | CE, FCC, RoHs |
Interface
| Serial Port | 4 x RS232/422/485 DB9 |
| CAN Bus | 2 x CAN Bus, DB9 |
| Ethernet | 2 x RJ45 Intel® I226IT 2.5GbE LAN |
| USB | 4 x USB 3.2 Gen2 x1 (Type A) 2 x USB 3.2 (Type C) |
| DI/DO | 4 x DI, 4 x DO Isolated |
| Display | 2 x HDMI |
| PoE | 4 x RJ45 Intel® I226IT 2.5GbE PoE. total 40W (Optional) |
| Indicator | 1 x Status LED |
| Expansion Slot | 2 x M.2 B-Key 3042/3052 Power Consumption PCIe x1 + USB 3.2/2.0 Power Connector 1 x M.2 E Key 2230, PCIe x1 + USB 2.0 1 x mPCIe (Half), USB 2.0 |
| SIM Slot | 2 x Nano SIM Card Socket |
| Other Interface | 1 x HDMI Capture |
| Antenna | 6 x External Antenna holes |
