Qualcomm AI Computing Platforms

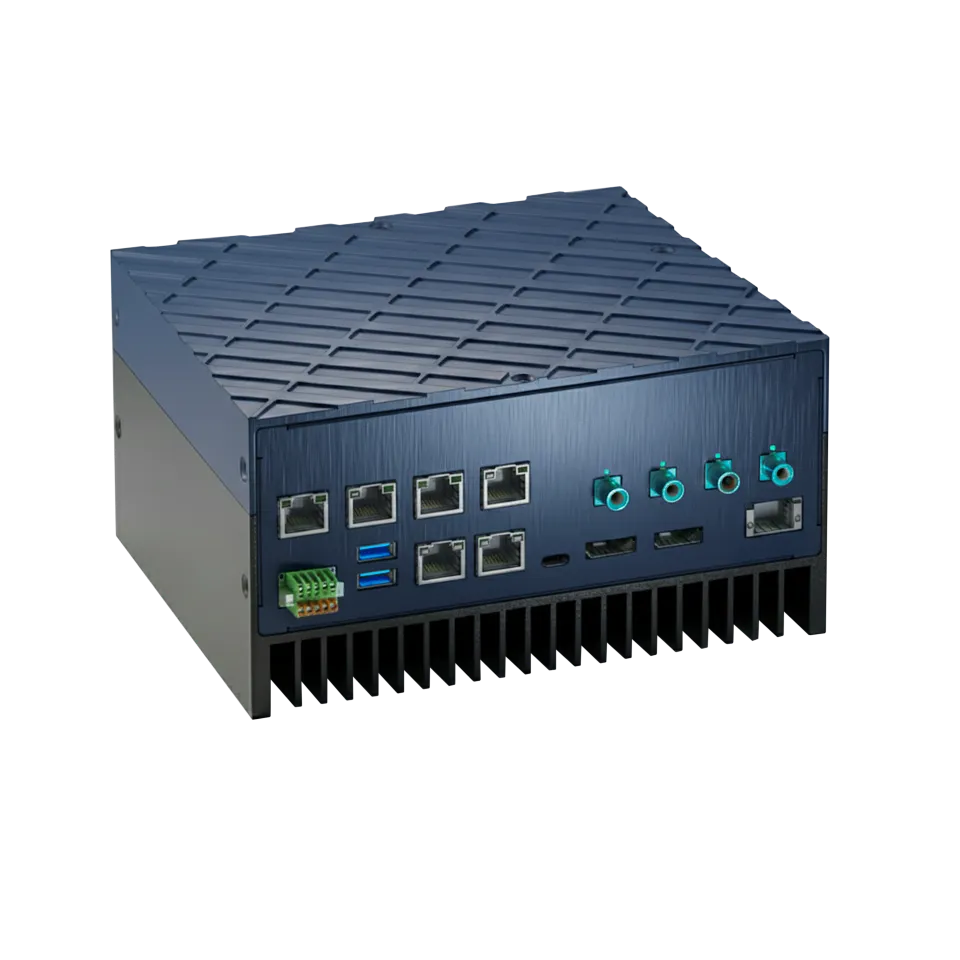

QXe-900
Qualcomm®KryoGen 6 CPU built on Arm v8.2 Cortex technology (Preliminary)
• Qualcomm® IQ9075M with onboard 36GB LPDDR5
• Low Power consumption 20Watt (SoC) with AI performance of up to 180 TOPS
• Multiple I/O interface for data collection
• 4x MIPI Camera or (optional) 8x GMSL2 FAKRA
• (Optional) 4x PoE IEEE802.3 AF
• Wide operating temperature range -20˚C~60˚C and wide power input 9~55V
• Low Power consumption 20Watt (SoC) with AI performance of up to 180 TOPS
• Multiple I/O interface for data collection
• 4x MIPI Camera or (optional) 8x GMSL2 FAKRA
• (Optional) 4x PoE IEEE802.3 AF
• Wide operating temperature range -20˚C~60˚C and wide power input 9~55V
DOWNLOAD
Specification
System
| CPU | Qualcomm®KryoGen 6 CPU built on Arm v8.2 Cortex technology |
| GPU | Qualcomm®Adreno663 GPU |
| NPU | Dual V73, four HVX, two HMX, up to 1.5 GHz |
| Video Processor | Decode 4k275, encode 4k170, concurrent 4k120 decode/encode |
| SoC | Qualcomm® QCS9075 |
| Memory | 36GB LPDDR5 |
| Storage | 1 M.2 M-key 2280 (PCIE x4) for NVMe |
| Indicators | 1 x LED indicator for Power status |
| Security | Yes |
| RTC Battery | RTC battery |
| Wireless | 1 x M.2 Key-E 2230 (USB2.0/PCIEx1) |
| Operating System | Linux Kernel 4.14 & above, (64-bit) |
I/O Interface
| USB | 2 x USB3.0 Type-A , 1 x USB3.1 Type-C |
Power
| Power Consumption | TBD |
Power Supply
| Power Requirement | Support DC input range of 9V to 55V |
| MTBF(Hours) | TBD |
Network
| Antenna | TBD |
| 4G/5G | 1 x M.2 Key-B 3052 (USB3.0/USB2.0) |
| GPS/CAN Bus | Terminal block for 1 x CAN |
External I/O
| Serial Port | 2 x DB9 (RS232/422/485) |
Environmental and Mechanical
| Dimension | 175mm(W) x 120mm(D) x 72mm(H) |
| Weight | 1.5kg |
| Operating Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage Temperature | -40 °F ~ 176 °F (-40 °C ~85 °C) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
Interface
| Ethernet | 2 x RJ45 2.5Gb Ethernet (10/100M/1000M/2.5G) |
| DI/DO | Terminal block 2x5 for 4DI/4DO |
| Display | 2 x DP out |
| Audio | 1 x Phone Jack (Line-Out/MIC-IN), 2 x Speaker Connector (R/L)(terminal block) |
| Power Connector | Terminal Block |
| SIM | 1 x Nano SIM card |
| microSD | 1 x Micro SD socket |
| Button | IGN ON |
| Hardware Monitoring | CPU Temperature |
Optional
| GMSL Camera | 8 x GMSL2 (FAKRA) |
| PoE IEEE802.3 AF | 4 x RJ45 Gigabit Ethernet (10/100M/1000M) |
