SIG-C302
Industrial IoT Edge Gateway with NXP i.MX 8M Plus Quad Cortex-A53/M7
• NXP i.MX 8M Plus Quad Cortex-A53/M7 Processor
• Max. LPDDR4 8 GB/eMMC 32 GB
• 2 x Serial port (RS232/485/422)
• CAN-FD x 2CH
• 2 x M.2 connector for RF Module
• Support RTC, TPM 2.0
• Pre-Install Debian 12 (Kernel 6.6)/Yocto Kirkstone (Kernel 5.15) (Optional)
• Wide temperature -20 ~ 70 °C
• Seamlessly integrated with the Hailo-8 AI accelerator boasting 26 TOPS (Optional)
• Max. LPDDR4 8 GB/eMMC 32 GB
• 2 x Serial port (RS232/485/422)
• CAN-FD x 2CH
• 2 x M.2 connector for RF Module
• Support RTC, TPM 2.0
• Pre-Install Debian 12 (Kernel 6.6)/Yocto Kirkstone (Kernel 5.15) (Optional)
• Wide temperature -20 ~ 70 °C
• Seamlessly integrated with the Hailo-8 AI accelerator boasting 26 TOPS (Optional)
DOWNLOAD
Specification
System
| CPU | NXP i.MX 8M Plus, Quad-Core ARM Cortex-A53/M7 Processor |
| Memory | LPDDR4 4/8GB (Optional) |
| Storage | eMMC 32 GB |
| Real time clock | 1 x RTC, with 3V CR2032 lithium battery |
| Indicators | 7 x LED indicator |
| Security | 1 x TPM 2.0 |
| Cellular | 1 x M.2 B-key |
| Wireless LAN | 1 x M.2 E-key |
| Operating System | Debian 12 (Kernel 6.6)/Yocto Kirkstone (Optional) |
Power Supply
| Power Requirement | 9 ~ 36 VDC |
| Power Consumption | 9.36 W (Full Loading) |
| MTBF(Hours) | 479,374 |
Environmental and Mechanical
| Dimension | 140.5 x 98 x 39 mm (5.5” x 3.9” x 1.5”) |
| Weight | 0.5 kg |
| Mouting/Installation | Din Rail, Wall Mount (Optional) |
| Operating Temperature | -20 ~ 70 °C (-4 ~ 158 °F) |
| Storage Temperature | -40 ~ 80 °C (-40 ~ 176 °F) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
Certification
| Regulations | CE, FCC |
| Carrier | Planning |
Interface
| Serial Port | 2 x RS232/RS485, Phoenix Connector |
| CAN Bus | 2CH x CAN-FD, Phoenix Connector |
| Ethernet | 2 x GbE LAN, RJ45 |
| USB | 2 x USB 3.0, Type A |
| Display | 1 x HDMI (Output) |
| Power Connector | 1 x Terminal Block 2pin |
| Debug Port | 1 x Micro USB |
| Expansion Slot | 1 x SIM card slot, 1 x microSD slot |
| Other Interface | 3 x SMA for RF Module |

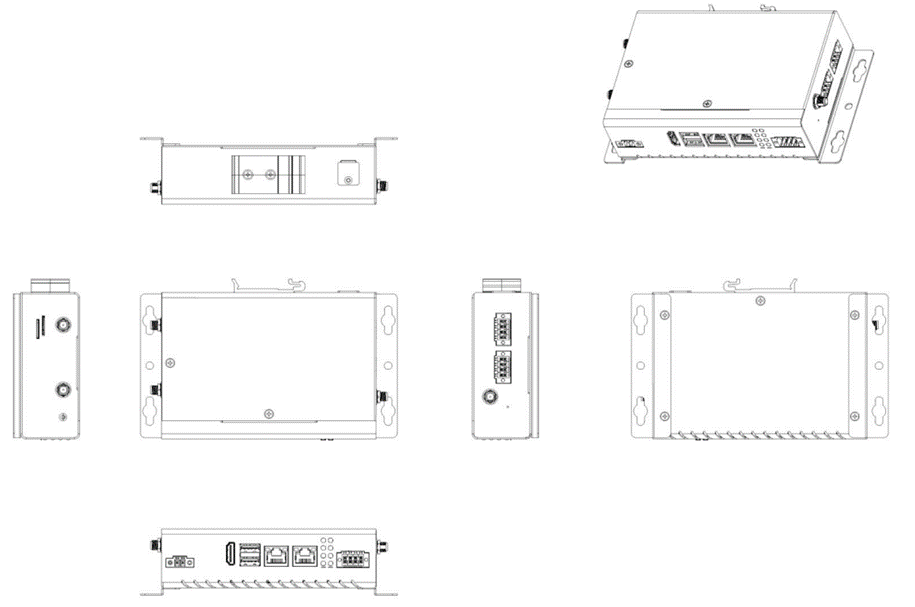

Dimension
.png)
