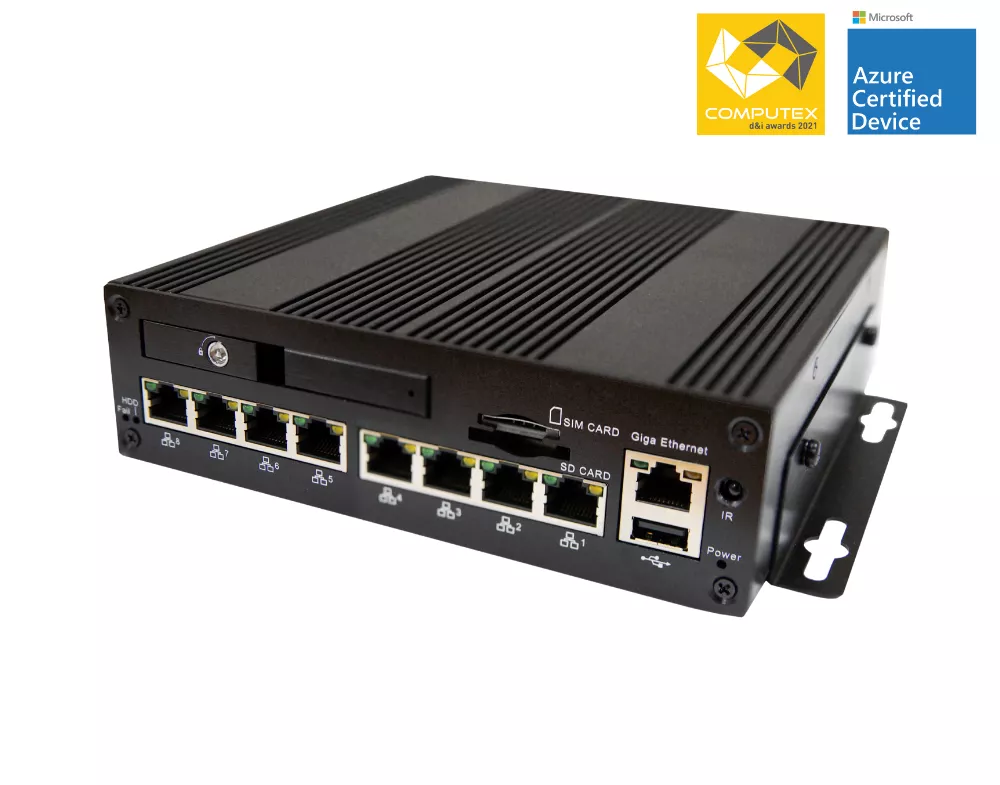

eNVP-JNX-IV-V0008
Compact Rugged Edge AI Network Video Recorder Platform with NVIDIA® Jetson Xavier™ NX
• Fanless AI network video recorder platform
• 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor
• NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores
• Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s
• Supports 8 x PoE ports
• Supports 1 x HDMI display output
• Supports Ethernet 9 x ports (8 x PoE, 1 x GbE)
• Supports ONVIF 2.0, 2MP IP camera up to 16 channels
• Supports AI functions
• CE, FCC, E-Mark, EN50155, MIL-STD-810G
• 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor
• NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores
• Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s
• Supports 8 x PoE ports
• Supports 1 x HDMI display output
• Supports Ethernet 9 x ports (8 x PoE, 1 x GbE)
• Supports ONVIF 2.0, 2MP IP camera up to 16 channels
• Supports AI functions
• CE, FCC, E-Mark, EN50155, MIL-STD-810G
DOWNLOAD
Specification
System
| CPU | 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3 processor |
| GPU | NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores (21 TOPS [INT8]) |
| Main Memory | Onboard 8 GB 128-bit LPDDR4x @1600 MHz 51.2 GB/s |
| OS | 16 GB eMMC 5.1 |
Video
| Format | H.265/H.264 |
| Video Input | 16 x IP camera EverFocus AiO NVR: up to 8ch |
| Video Output | 1 x HDMI 2.0 a/b (max. 3840 x 2160), 1 x VGA (optional) |
| Resolusion | 2 x 4K @60 fps, 4 x 4K @30 fps,16 x 1080p @30 fps |
Audio
| Audio Input | 1 x RCA |
| Audio Output | 1 x RCA |
Recording
| Format | H.265/H.264 |
| Resolusion | 2 x 4K @60 fps, 4 x 4K @30 fps, 16 x 1080p @30 fps |
Storage
| SATA SSD | 1 x 2.5” SATA (removable) |
| RAID | N/A |
Network
| Ethernet | 1 x GbE port, 8 x PoE port (10/100 MbE, total 75 W) |
| Wi-Fi/3G/4G | Supported (optional) |
| GPS/G-Sensor | Onboard G-Sensor, GPS (optoinal) |
Alarm
| Alarm In/Out | 4 x Alarm Input, 4 x Alarm Output |
Interface
| Front I/O Panel | 1 x Power button, 1 x IR receiver, 1 x USB 2.0, 1 x GbE port, 8 x PoE port, 1 x Micro USB 2.0 (Internet OTG), 1 x 2.5” SSD bay, 1 x SIM card slot, 2 x LED indicator (HDD, Fail) |
| Rear I/O Panel | 1 x Audio in, 1 x Audio out 1 x USB 3.0, 1 x RS-232, 1 x RS-485, 1 x HDMI, 1 x Alarm IO (4-input, 4-output), 1 x Power input, 5 x Antenna port |
| Expansion Slot | 2 x mPCIe (1 x full-size USB 2.0, 1 x half-size USB 2.0) |
Software
| NVR Software | EverFocus AiO NVR |
General
| Power Supply | 9 ~ 36 VDC (with ignition pin) |
| Dimensions | 175.6 x 183.3 x 50.5 mm (6.9” x 7.2” x 2”) (without bracket) |
| Gross Weight | 1.8 kg/4 lb |
| Operating Temperature | -20 ~ 65 °C (-4 ~ 149 °F) |
| Storage Temperature | -20 ~ 85 °C (-4 ~ 185 °F) |
| Storage Humidity | 95% @40 °C, non-condensing |
| Vibration/Shock | MIL-STD-810G |
| Certification | CE, FCC, E-Mark, EN50155 |

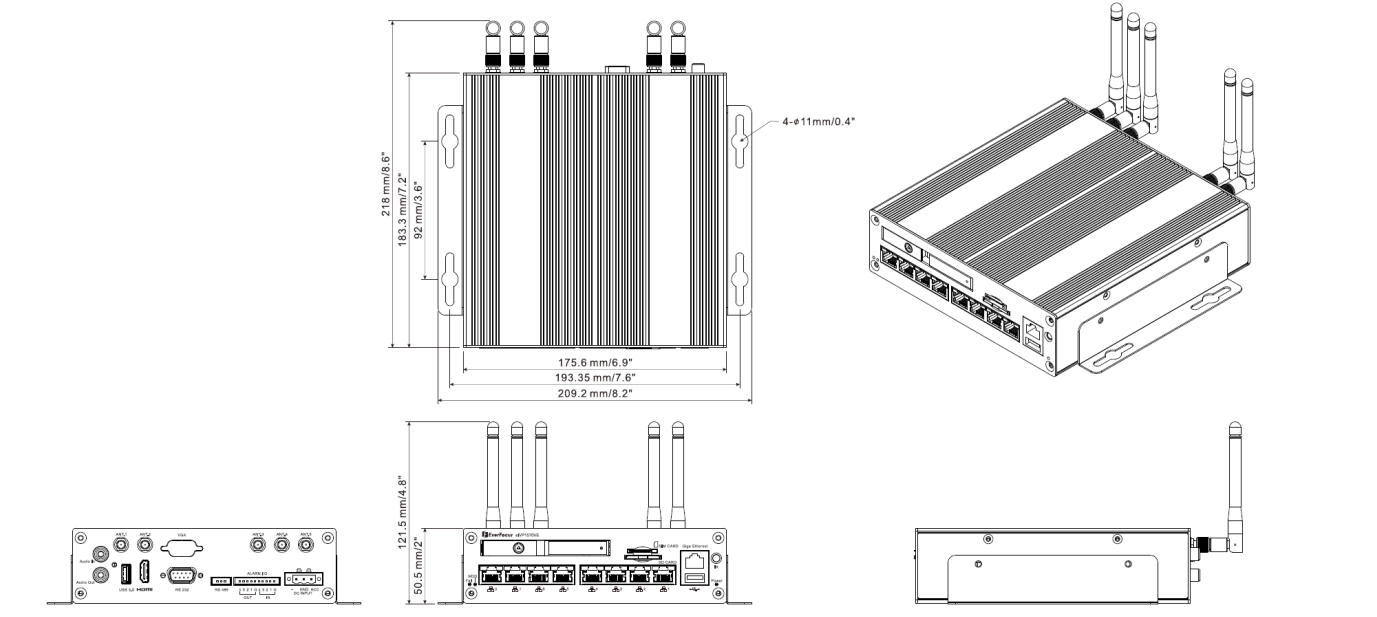

Dimension
.png)
