NVIDIA AI Computing Platforms

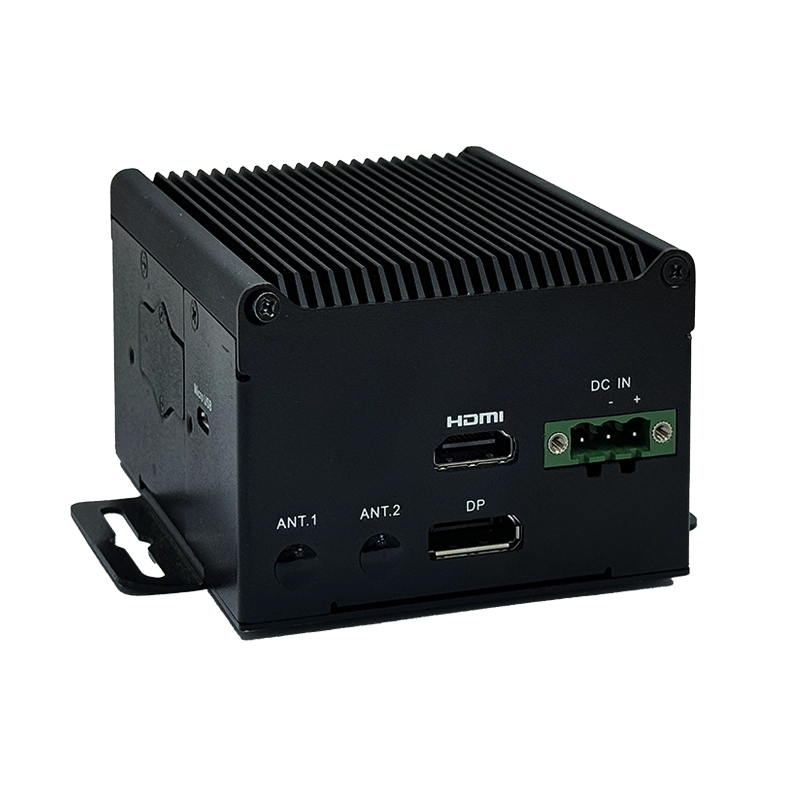

eNVP-JOX-UB
Fanless Embedded Edge AI System with NVIDIA® Jetson Orin™ NX
• Powered by NVIDIA® Jetson Orin™ NX
• Onboard 16/8 GB 128-bit LPDDR5
• Multiple I/O interface connections for data collection GbE LAN, USB 3.1, Serial Port, CAN, Alarm I/O
• Wide operating temperature range -20 to 50˚C
• Onboard 16/8 GB 128-bit LPDDR5
• Multiple I/O interface connections for data collection GbE LAN, USB 3.1, Serial Port, CAN, Alarm I/O
• Wide operating temperature range -20 to 50˚C
DOWNLOAD
Specification
System
| CPU/GPU | NVIDIA® Jetson Orin™ NX, 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| Memory | Onboard 16/8 GB 128-bit LPDDR5 |
| Storage | 1 x M.2 M-Key 2280, support NVMe |
| Real time clock | Yes |
| Indicators | 3 x LED indicator (Power, SD Card, SSD) |
| Wireless | 1 x M.2 E-Key 3042/3052 |
| Operating System | Linux (NVIDIA Jetpack 5.1 and above) |
Power Supply
| Power Requirement | 12 VDC |
| Power Consumption | Max. 25 W (with Fan) |
Environmental and Mechanical
| Dimension | 114 x 104 x 79.2 mm (4.4” x 4.0” x 2.38”) |
| Weight | 0.65 kg |
| Mouting/Installation | Din Rail, Wall Mount |
| Operating Temperature | -20 ~ 50 °C (-4 ~ 122 °F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 176 °F) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
Certification
| Regulations | CE, FCC |
| Carrier | Planning |
Interface
| Serial Port | 2 x UART, 1 x RS-485 |
| CAN Bus | 1 x CAN bus |
| Ethernet | 1 x GbE LAN, RJ45 |
| USB | 3 x USB 3.1, Type-A, 1 x USB 2.0, Type-A |
| DI/DO | 6 x GPIO |
| Display | 1 x HDMI 2.0-Out |
| Power Connector | Terminal Block |
| Debug Port | 1 x Micro USB for console |
| Expansion Slot | 1 x SIM card slot, 1 x microSD slot |

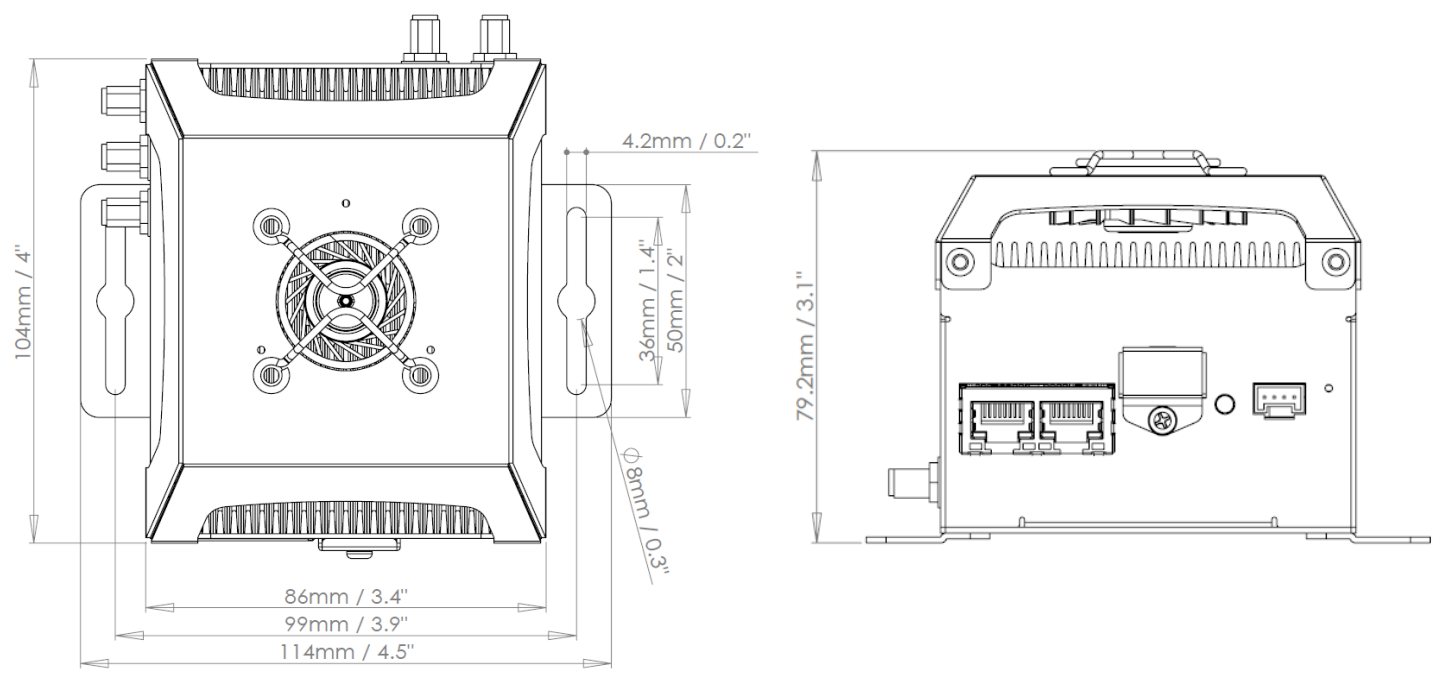

Dimension
