SMARC
iEC-N141

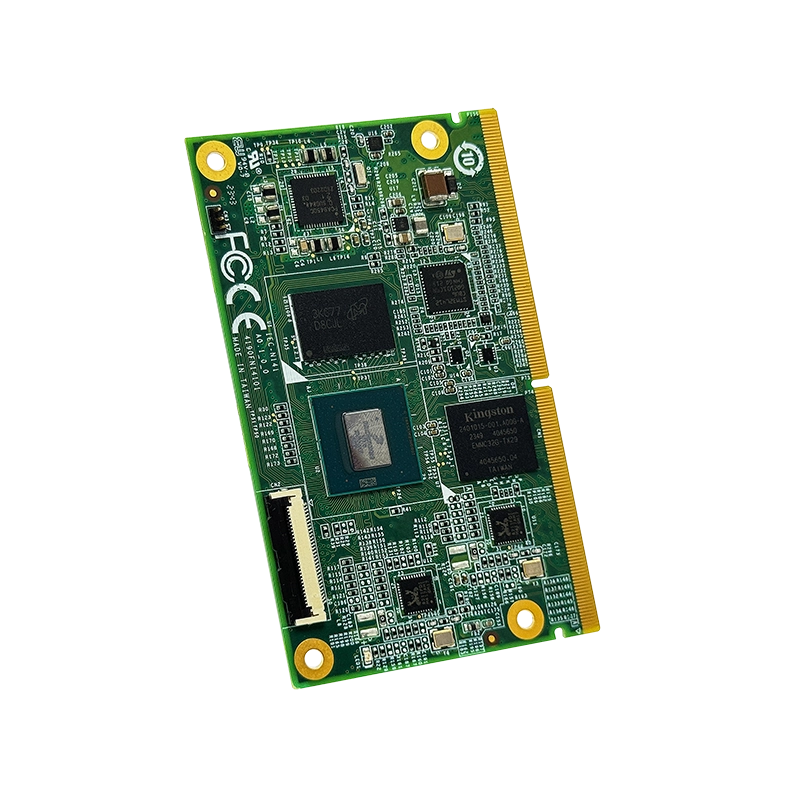

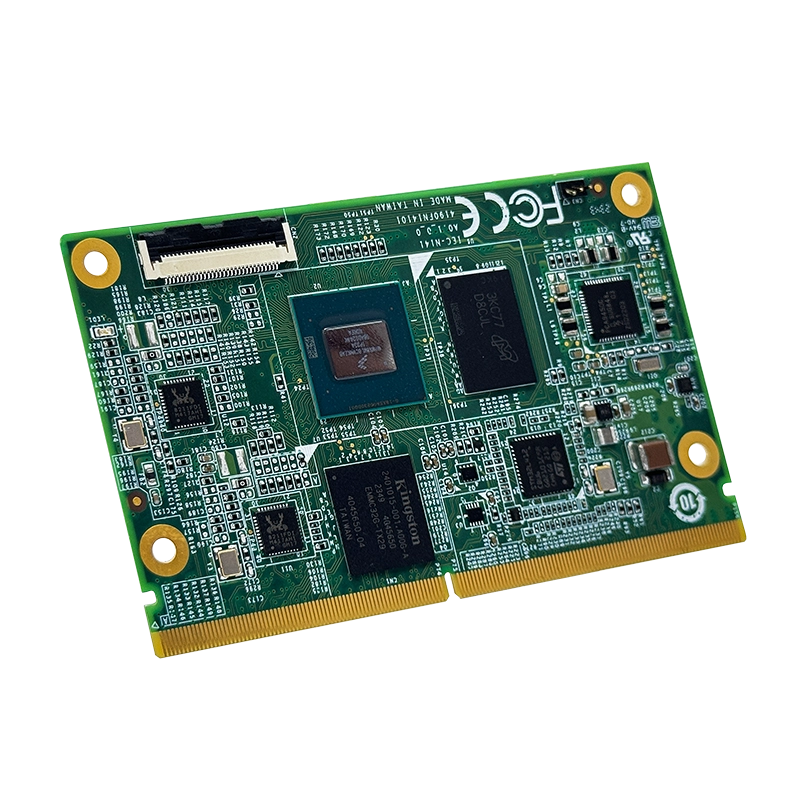

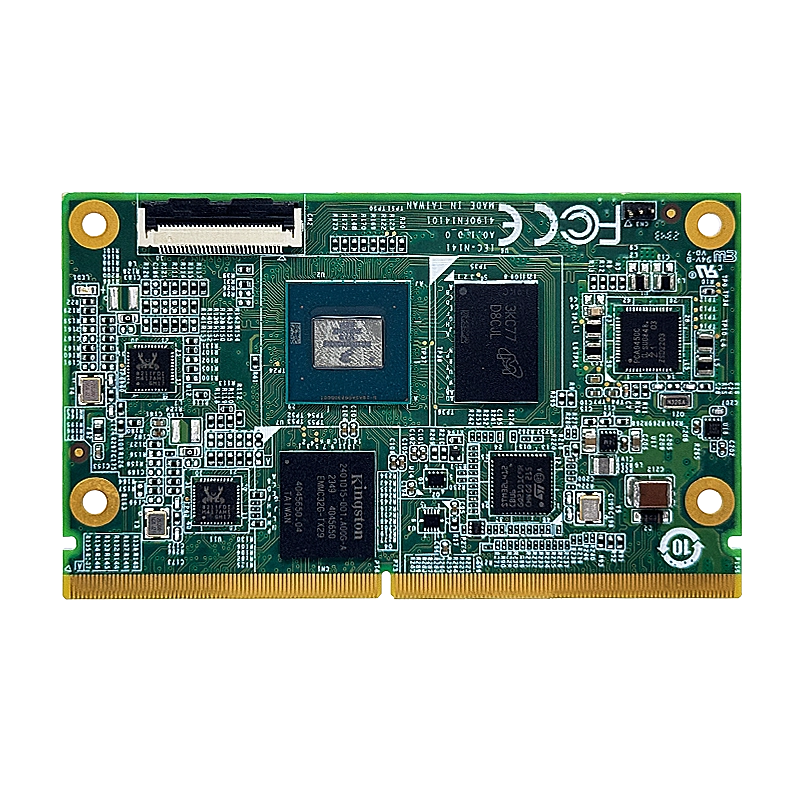

Short-sized SMARC 2.1 Module with NXP i.MX 8M Plus Quad Cortex-A53/M7
• NXP i.MX 8M Plus Quad-core Cortex-A53/M7
• Short-sized SMARC (82 x 50 mm) with MXM3 connector
• 4 GB LPDDR4, 32 GB eMMC
• Double display: HDMI 2.0, LVDS
• Industrial operating temperature: -40 ~ 85°C
• Short-sized SMARC (82 x 50 mm) with MXM3 connector
• 4 GB LPDDR4, 32 GB eMMC
• Double display: HDMI 2.0, LVDS
• Industrial operating temperature: -40 ~ 85°C
DOWNLOAD
Specification
System
| CPU/MCU | NXP i.MX 8M Plus Quad-core Cortex- A53/M7 Processor |
| Memory | 4 GB LPDDR4 |
| Storage | 32 GB eMMC |
Power Supply
| Power Requirement | 5 VDC |
Environmental and Mechanical
| Dimension | 82 x 50 mm (3.22” x 1.96”) |
| Weight | 0.02 kg |
| Operating Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
Interface (Supply by carry board)
| CAN Bus | 2 x CAN Bus |
| Ethernet | 2 x Ethernet 10/100/1000 |
| USB | 2 x USB 3.0 |
| Display | 1 x HDMI 2.0 1080P @60, 1 x 4 Lane LVDS |
| Video Input | MIPI CSI 2.0 4-lane, MIPI DSI 4-lane with PHY |
| Expansion Slot | 1 x SD slot, 1 x PCIe Gen3 |
| Other Interface | 2 x SPI, 5 x GPIO 1.8 VDC |
Dimension
