SMARC
iEC-N321

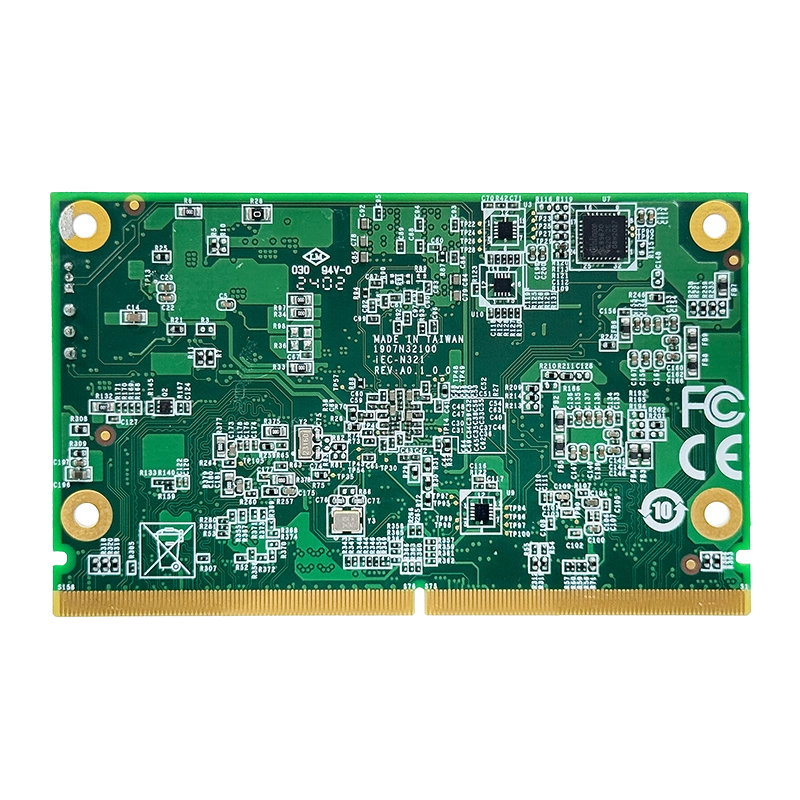

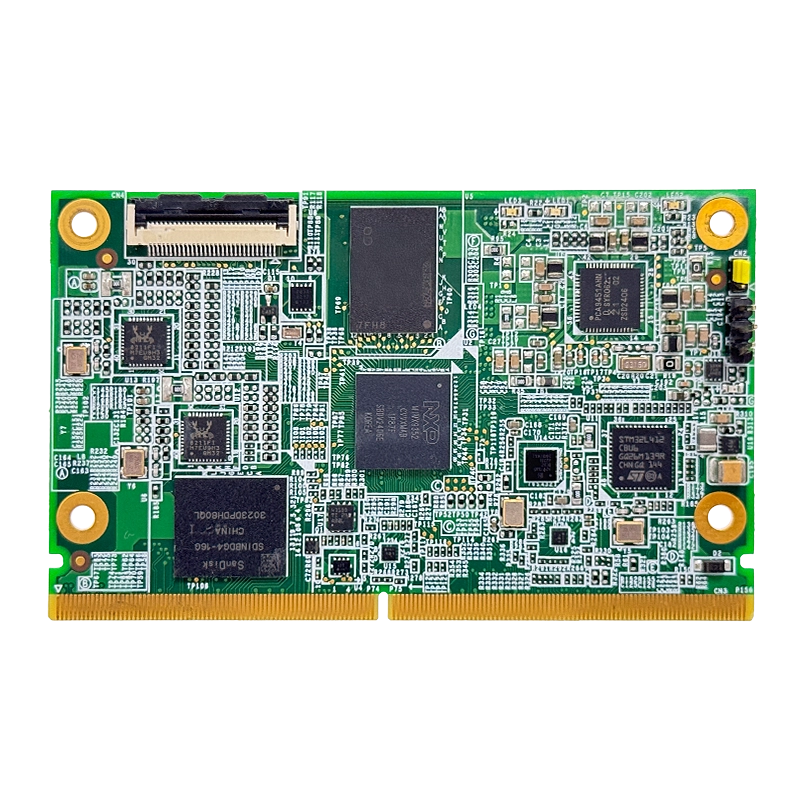

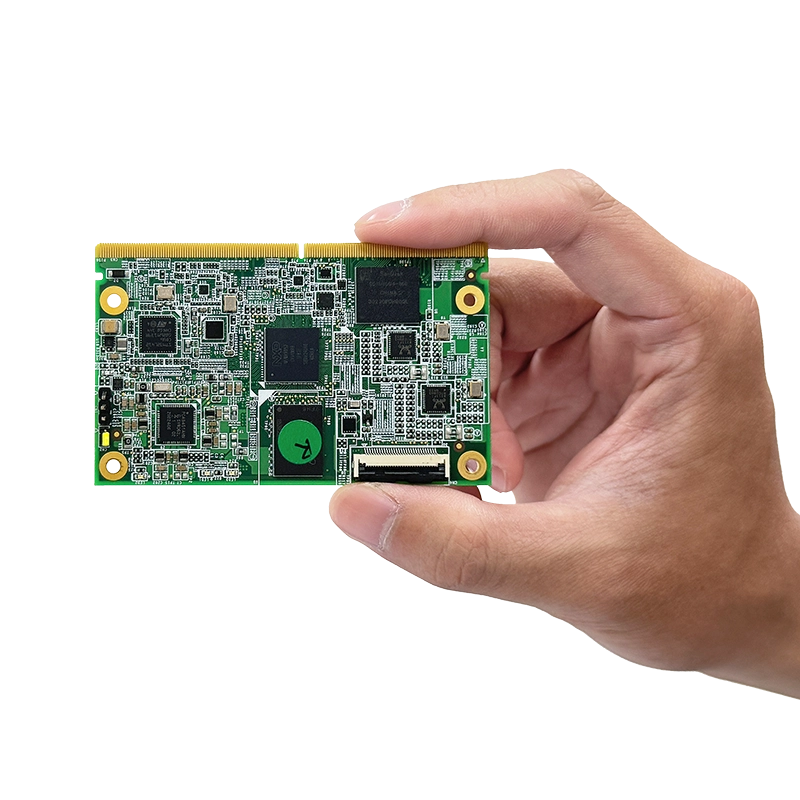

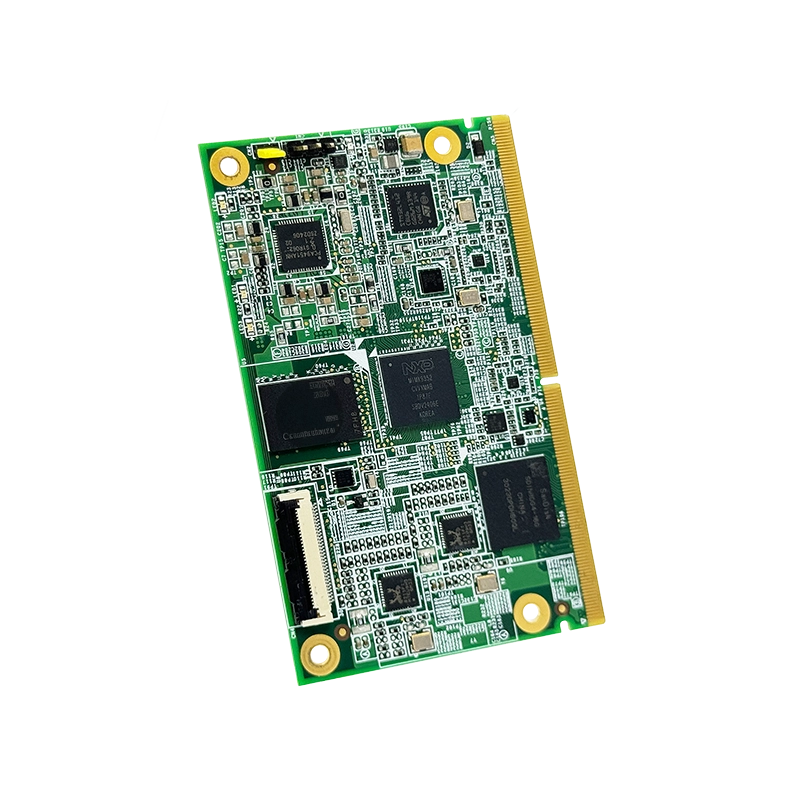

Short-sized SMARC 2.1 Module with NXP i.MX 93 Dual Cortex-A55
• NXP i.MX 93 Daul Cortex-A55
• Short-sized SMARC (82 x 50 mm) with MXM3 connector
• 2 GB LPDDR4, 16 GB eMMC
• Double display: HDMI 1.4a, LVDS
• Industrial operating temperature: -40 ~ 85°C
• Short-sized SMARC (82 x 50 mm) with MXM3 connector
• 2 GB LPDDR4, 16 GB eMMC
• Double display: HDMI 1.4a, LVDS
• Industrial operating temperature: -40 ~ 85°C
DOWNLOAD
Specification
System
| CPU/MCU | NXP i.MX 93, dual Cortex-A55 @1.7 GHz Processor |
| Memory | 2 GB LPDDR4 |
| Storage | 16 GB eMMC |
Power Supply
| Power Requirement | 5 VDC |
Environmental and Mechanical
| Dimension | 82 x 50 mm (3.22” x 1.96”) |
| Weight | 0.02 kg |
| Operating Temperature | -40 ~ 85 °C (-40 ~ 185 °F ) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
Interface (Supply by carry board)
| Serial Port | 2 x 2-Wire, 2 x 4-Wire |
| Ethernet | 2 x Ethernet 10/100/1000 |
| USB | 2 x USB 2.0 |
| Display | 1 x HDMI 1.4a 1080P @60, 1 x 4 Lane LVDS |
Dimension
