iEC-N488

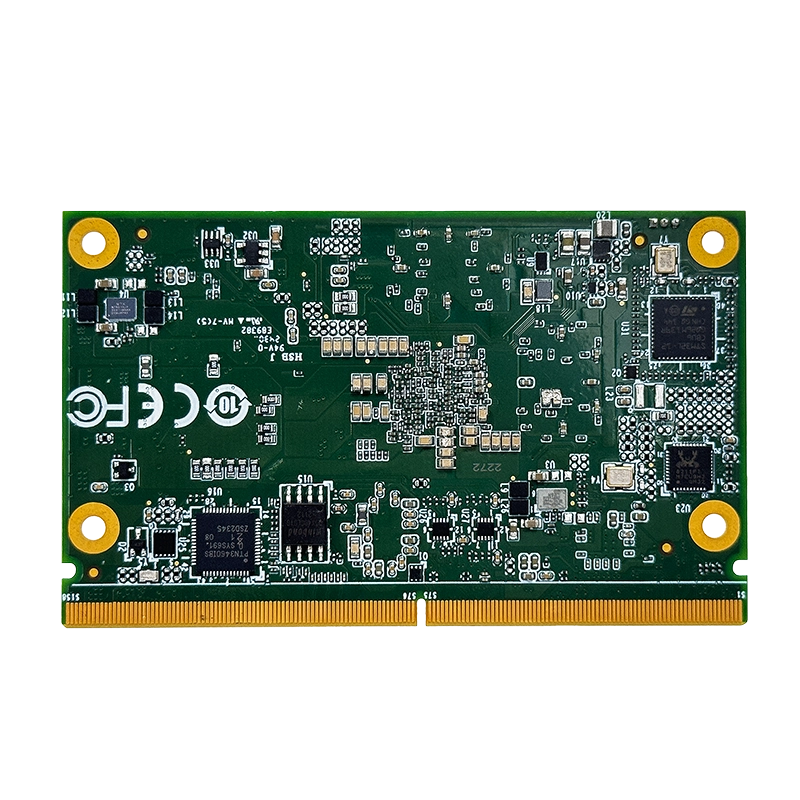

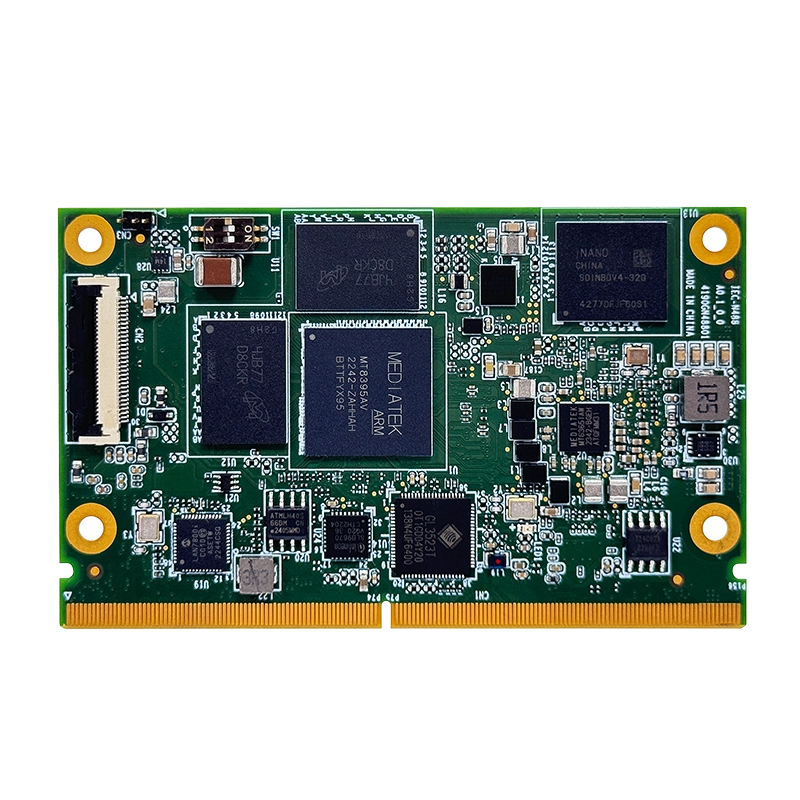

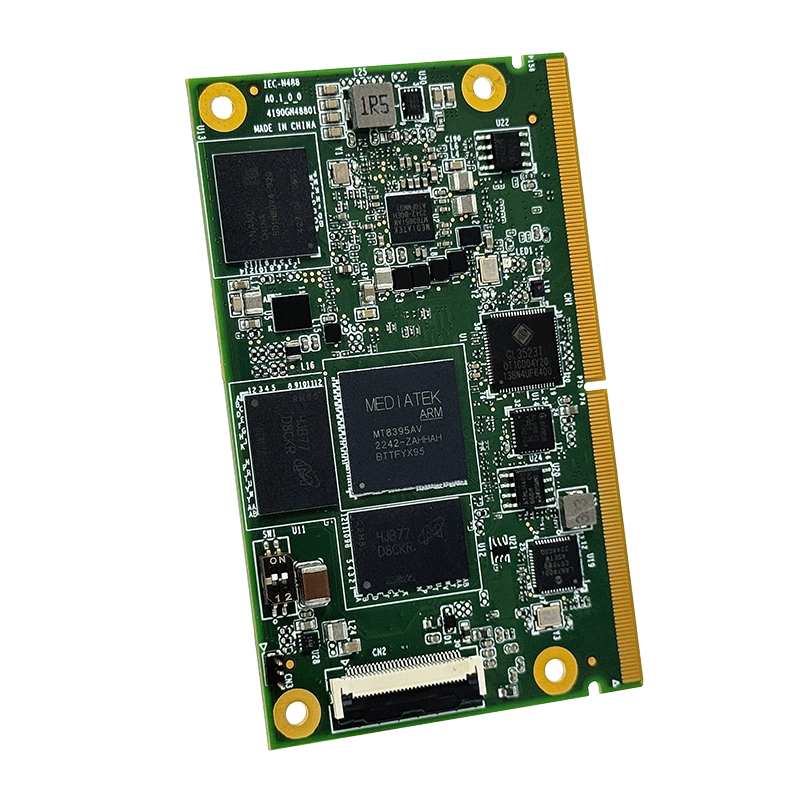

Short-sized SMARC 2.1 Module with MediaTek MT8395 Octa Cortex-A78/A55
• Power by MediaTek MT8395 Soc

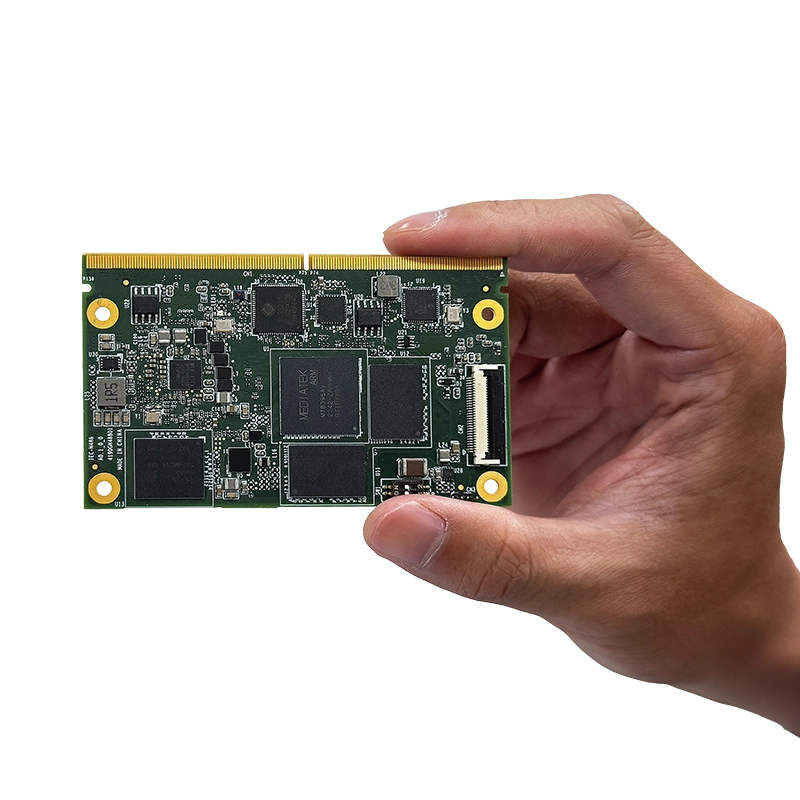

• Short-sized SMARC (82 x 50 mm) with MXM3 connector
• 8 GB LPDDR4, 32 GB eMMC
• Double display: HDMI, LVDS
• Industrial operating temperature: -40 ~ 85°C
• Short-sized SMARC (82 x 50 mm) with MXM3 connector
• 8 GB LPDDR4, 32 GB eMMC
• Double display: HDMI, LVDS
• Industrial operating temperature: -40 ~ 85°C
DOWNLOAD
Specification
System
| CPU/MCU | MT8395 Octa-core, CPU: 4 x A78 @2.2GHz + 4 x a55 @2.0GHz |
| Memory | 8 GB LPDDR4 |
| Storage | 32 GB eMMC |
| Real time clock | Yes |
Power Supply
| Power Requirement | 5 VDC |
Environmental and Mechanical
| Dimension | 82 x 50 mm (3.22” x 1.96”) |
| Weight | 0.02 kg |
| Operating Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Storage Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
Interface (Supply by carry board)
| Serial Port | 2 x 2-Wire, 2 x 4-Wire |
| Ethernet | 2 x Ethernet 10/100/1000 |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Display | 1 x HDMI Out, 1 x LVDS |
| Video Input | 4 lane MIPI-CSI2 |
Dimension
