Single Board Computer

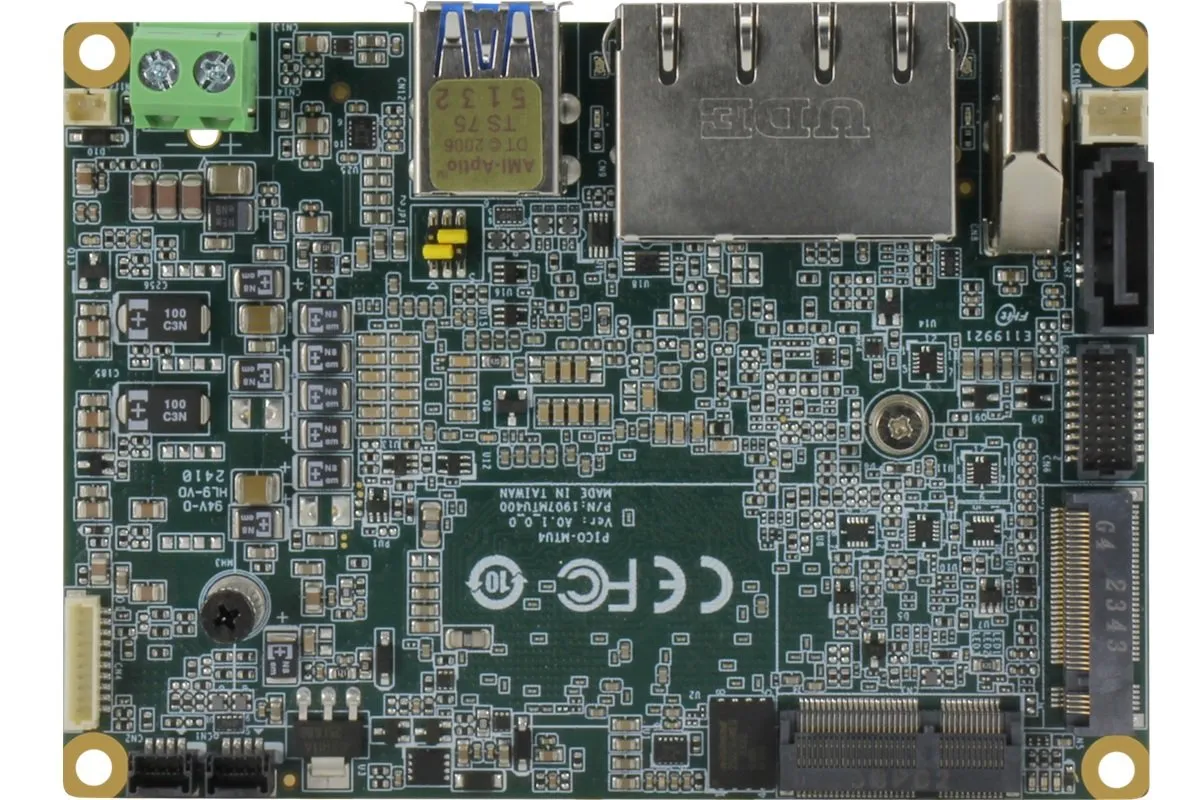

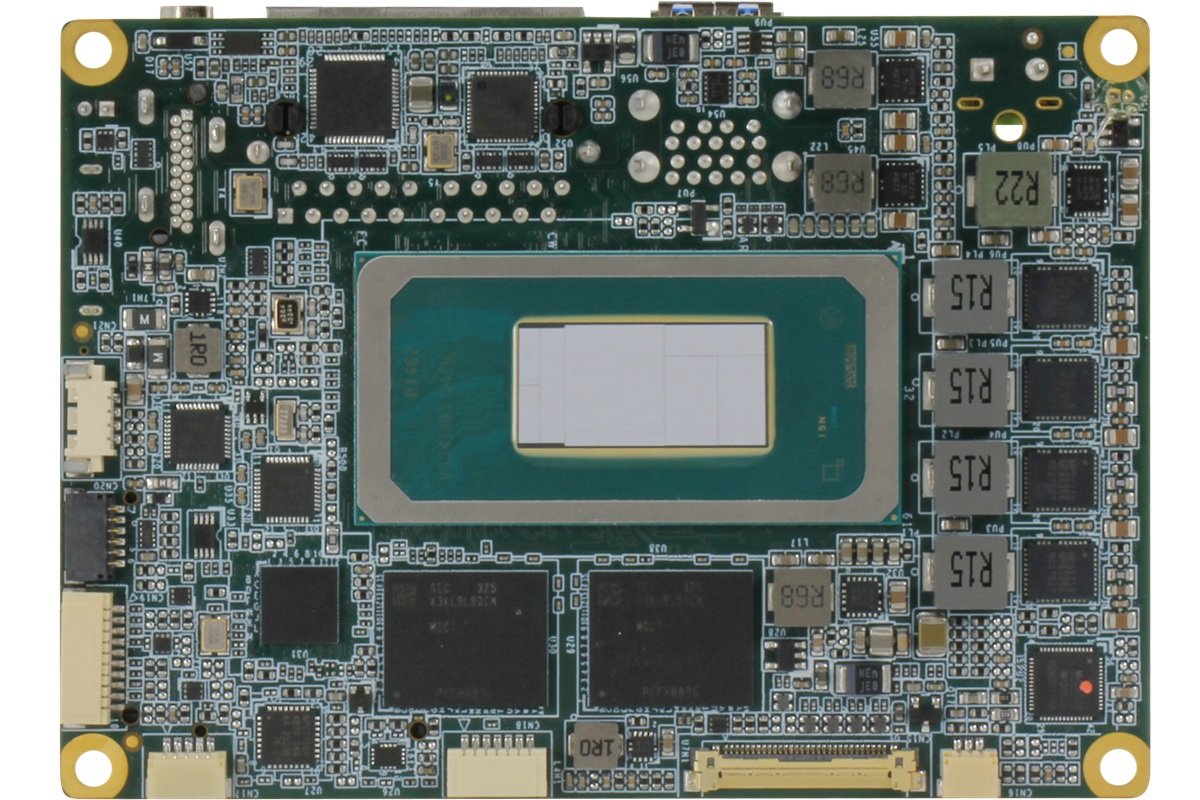

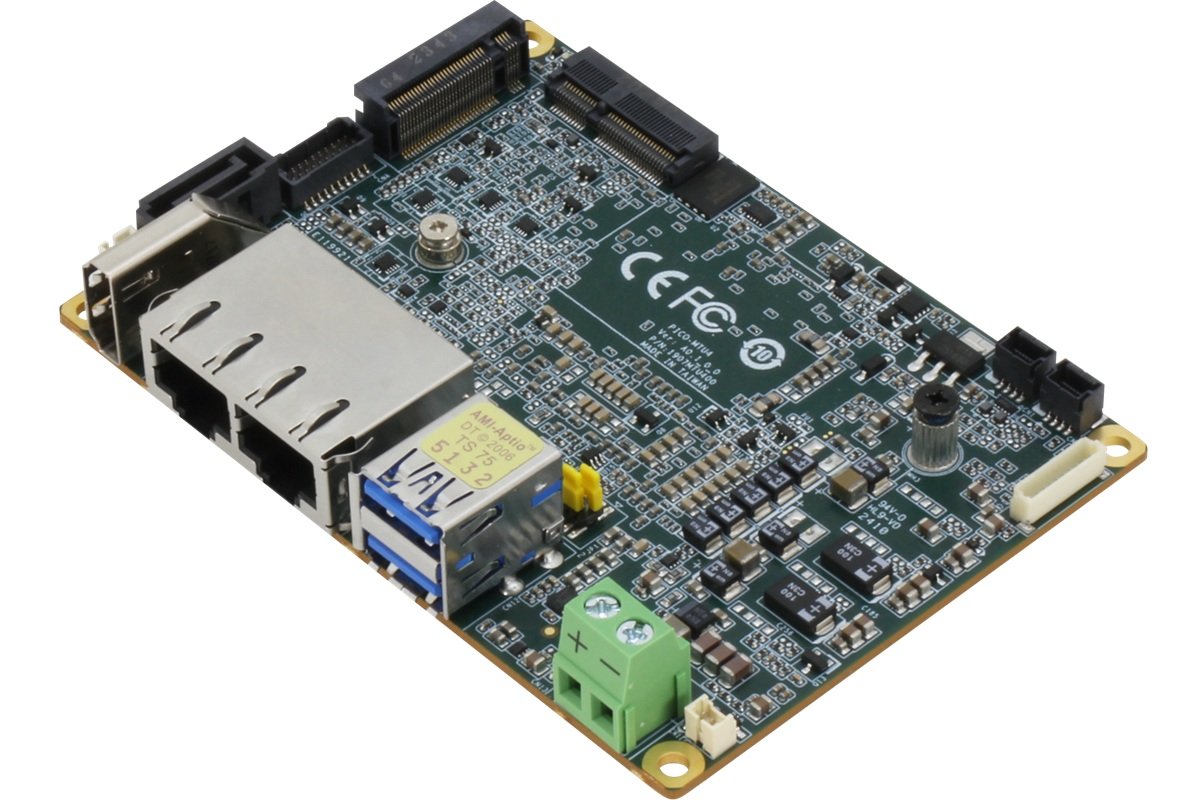

AMB-1AR0
Pico-ITX Board with Intel® Core™ Ultra Processors
• Intel® Core™ Ultra Processors (Series 2) SoC
• Onboard LPDDR5 up to 32GB
• 2.5GbE + 1GbE
• HDMI 1.4 + eDP 1.4
• M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
• M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
• USB 3.2 Gen 2 x 2 + USB 2.0 x 2
• RS-232/422/485 x 2
• TPM, GPIO 4-bit, SATA 6Gb/s x 1
• SMBus/I2C (Default: SMBus)
• Intel® AMT Support
• Onboard LPDDR5 up to 32GB
• 2.5GbE + 1GbE
• HDMI 1.4 + eDP 1.4
• M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
• M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
• USB 3.2 Gen 2 x 2 + USB 2.0 x 2
• RS-232/422/485 x 2
• TPM, GPIO 4-bit, SATA 6Gb/s x 1
• SMBus/I2C (Default: SMBus)
• Intel® AMT Support
DOWNLOAD
Specification
System
| Form Factor | PICO-ITX |
| CPU | Intel® Core™ Ultra 7 Processor 255U (2PC+10EC/14T, P-core 2.00 GHz, E-core 1.70 GHz, 15W) Intel® Core™ Ultra 5 Processor 225U (2PC+10EC/14T, P-core 1.50 GHz, E-core 1.30 GHz, 15W) |
| Chipset | Integrated with Intel® SoC |
| BIOS | UEFI |
| Memory | Single-Channel LPDDR5 6400, up to 32GB |
| Wake on LAN | Yes |
| WatchDog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
Display
| eDP1/LVDS | eDP 1.4 x 1 |

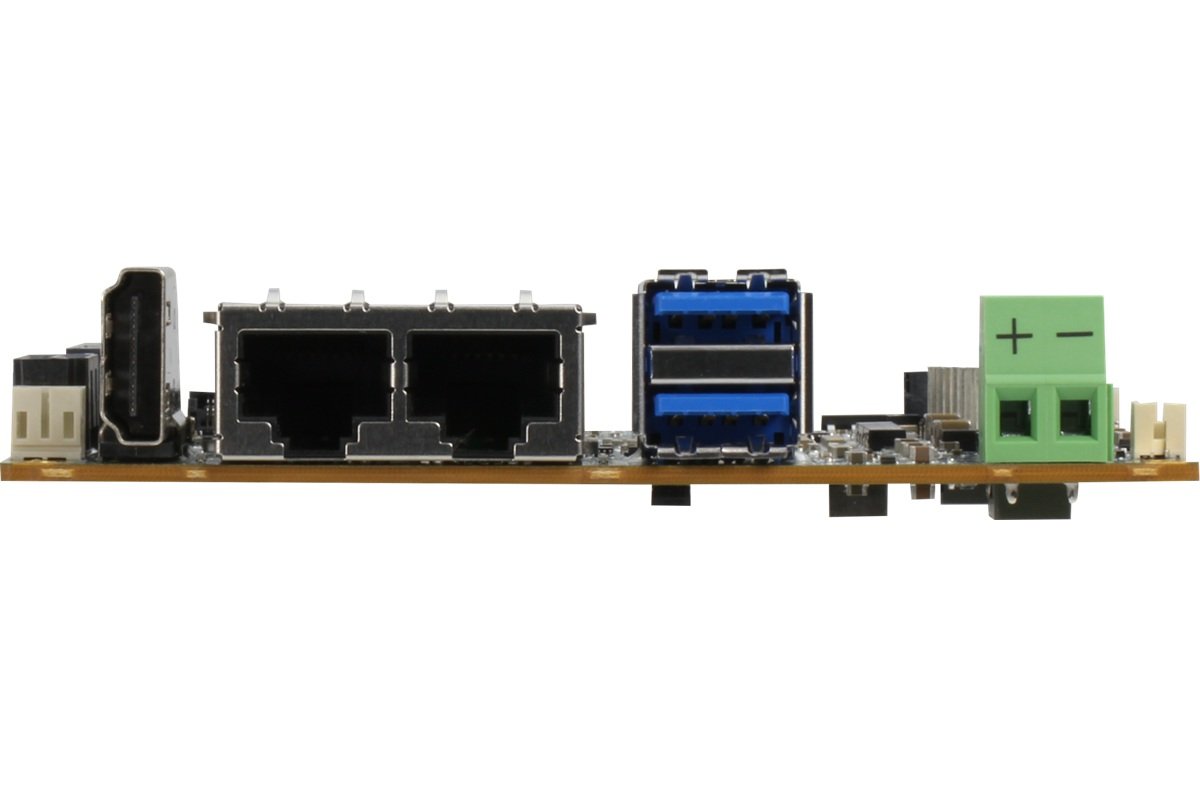

External I/O
| Ethernet | Intel® Ethernet Connection I219-LM, GbE RJ-45 x 1 Intel® Ethernet Controller I226-LM, 2.5GbE x 1 |
| USB | USB 3.2 Gen 2 x 2 ports |
| Video | HDMI 1.4 x 1 |
Internal I/O
| USB | USB 2.0 x 2 |
| Serial Port | COM 1 ~ 2 (RS-232/422/485, supports 5V/12V/RI) |
| SATA | SATA 6Gb/s x 1 +5V SATA Power Connector x 1 |
| DIO/GPIO | GPIO 4-bit |
| SMBus/I2C | I2C/SMBus (Default: SMBus) |
| Fan | 4pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
Power Supply
| Power Requirement | 12V only |
| Power Type | AT/ATX |
| Power Connector | Phoenix 2-pin Connector (Default) Lockable DC Jack Connector (Optional) |
| MTBF (Hours) | 1,063,716 |
Power Requirement
| Power Consumption | Intel® Core™ Ultra 7 Processor 255U, DDR5 32GB x 1, 2.85A @+12V (Typical) Intel® Core™ Ultra 7 Processor 255U, DDR5 32GB x 1, 6.96A @+12V (Max) |
Software
| OS Support | Windows 10/11 (64bit), Linux Ubuntu 22.04.2 kernel 5.19.0 32 generic |
Environmental and Mechanical
| Dimension | 3.94" x 2.84" (100mm x 72mm) |
| Weight | 0.18 lb (0.08 kg) |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| EMC | CE/FCC Class A |
Interface (Supply by carry board)
| Display | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
Interface
| Graphic Controller | Intel® Graphics |
