Single Board Computer

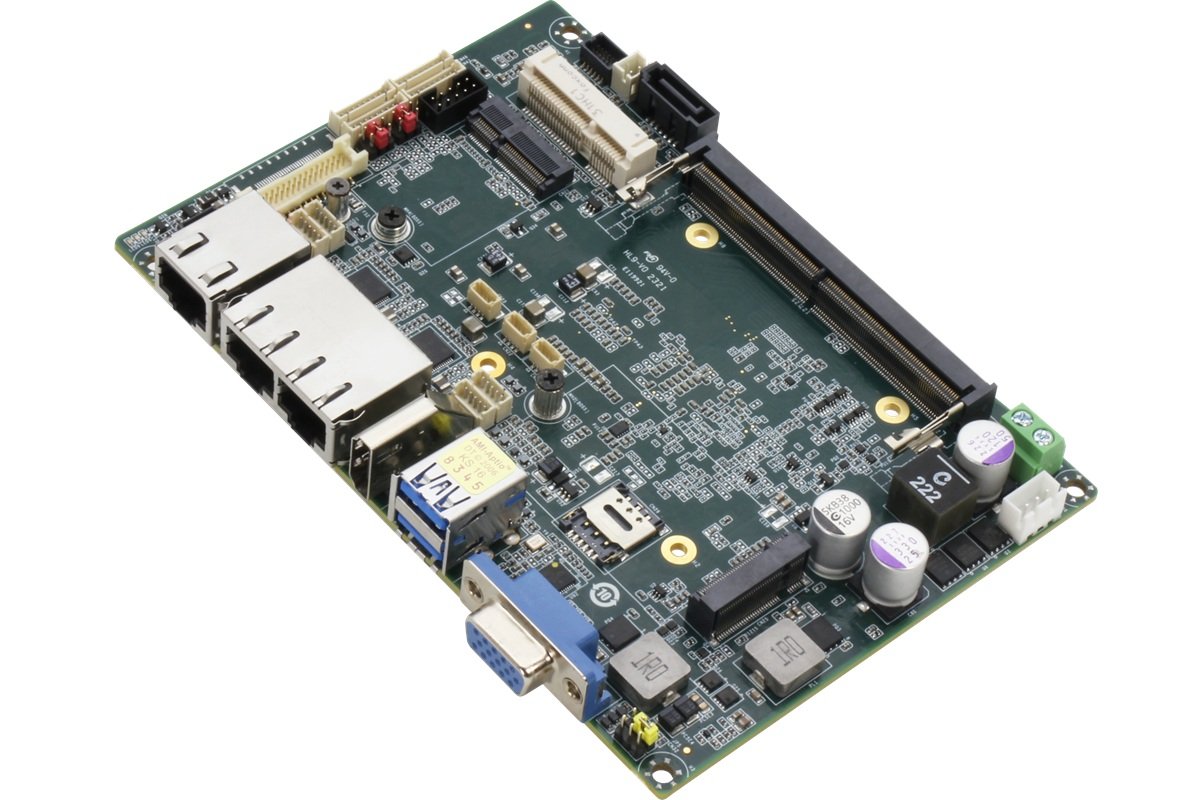

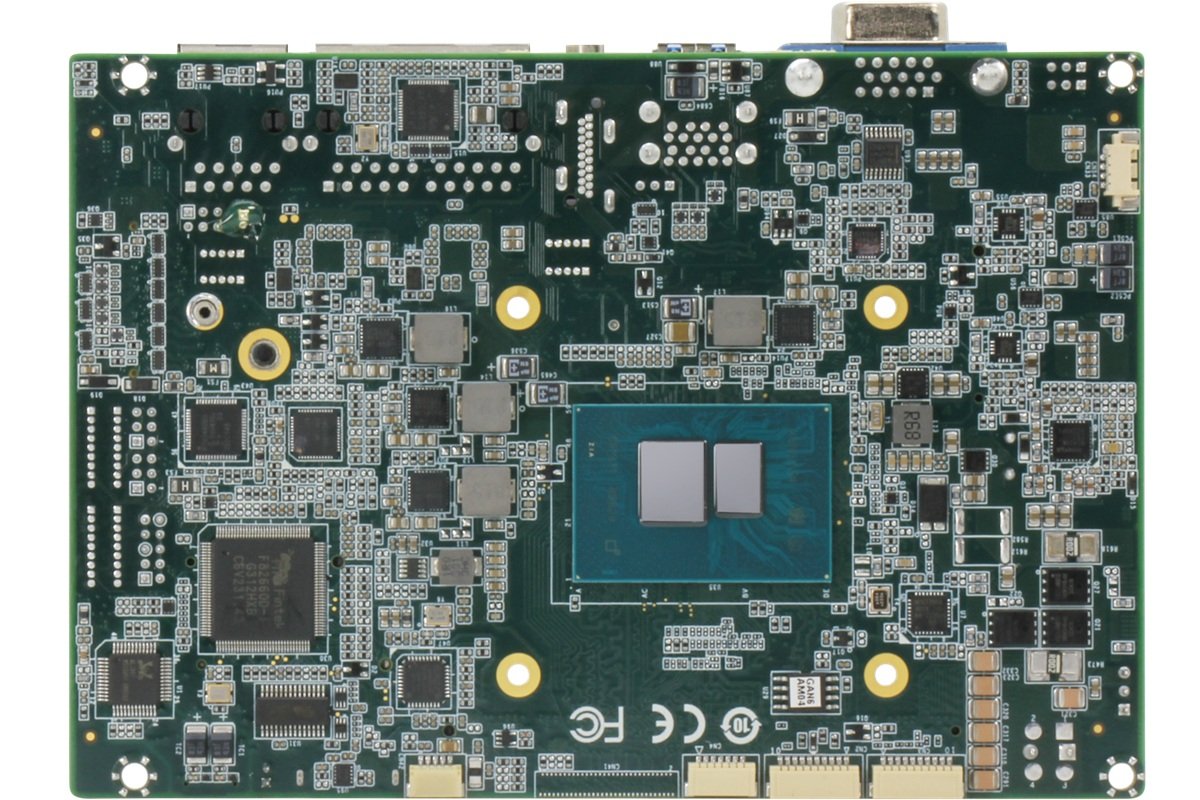

AMB-3TI0
Intel® Core™ Processor N-series, Intel® Processor Nseries SoC
• Intel® Core™ Processor N-series, Intel® Processor Nseries SoC
• DDR5 4800 SODIMM x 1, up to 16GB
• HDMI 1.4, VGA, LVDS
• 2.5GbE x 3, SATA 6Gb/s, GPIO 8-bit
• USB 3.2 Gen 2 x 2, RS-232/422/485 x 2, RS-232 x 2
• Mini PCIe x 1, M.2 2230 E-Key x 1, M.2 3052 B-Key x 1
• Wide 9V-36V DC Input
• DDR5 4800 SODIMM x 1, up to 16GB
• HDMI 1.4, VGA, LVDS
• 2.5GbE x 3, SATA 6Gb/s, GPIO 8-bit
• USB 3.2 Gen 2 x 2, RS-232/422/485 x 2, RS-232 x 2
• Mini PCIe x 1, M.2 2230 E-Key x 1, M.2 3052 B-Key x 1
• Wide 9V-36V DC Input
DOWNLOAD
Specification
System
| Form Factor | 3.5" SubCompact Board |
| CPU | Intel® Processor N150 (4C/4T, up to 3.6 GHz, 6W) Intel® Core™ 3 Processor N355 (8C/8T, up to 3.90 GHz, 15W) |
| Chipset | Integrated with Intel® SoC |
| BIOS | UEFI |
| Memory | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
| Wake on LAN | Yes |
| WatchDog Timer | 255 Levels |
| Security | TPM 2.0 (Optional) |
| RTC Battery | Lithium Battery 3V/240mAh |
Display
| eDP1/LVDS | LVDS x 1, Dual Channel 18/24-bit, up to 1920 x1080 |
Video
| Graphic Controller | Intel® UHD Graphics |

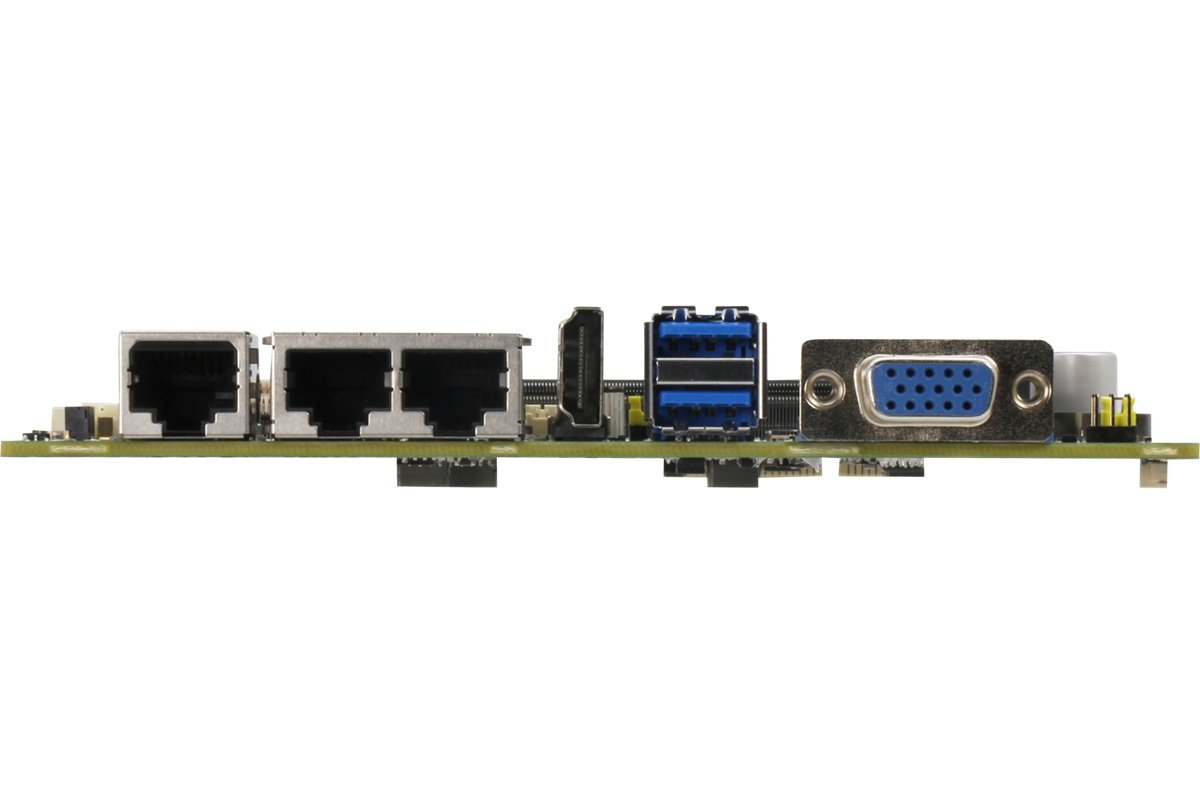

External I/O
| Ethernet | Intel® Ethernet Controller I226, 2.5GbE RJ-45 x 3 |
| USB | USB 3.2 Gen 2 x 2 |
| Video | HDMI 1.4 x 1, VGA x 1 |
Internal I/O
| USB | USB 2.0 x 4 |
| Serial Port | COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232) |
| Video | LVDS x 1 Inverter x 1 (12V/2A) |
| SATA | SATA 6Gb/s x 1 +5V SATA Power Connector x 1 |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus/ I2C x 1 (Default: SMBus) |
| Fan | 4pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
Power Supply
| Power Requirement | +9V~36V (Optional: +12V), Support ERP |
| Power Type | AT/ATX |
| Power Connector | Phoenix 2-pin Connector |
| MTBF (Hours) | 337,963 |
Power Requirement
| Power Consumption | Intel® Core™ 3 Processor N355, DDR5 16GB x1, 4.15A @+12V (Typical) Intel® Core™ 3 Processor N355, DDR5 16GB x1, 5.06A @+12V (Max) |
Software
| OS Support | Windows 10 (64-bit), Windows 11 (64-bit) Ubuntu 24.04.2 / Kernel 6.11.0-26-generic |
Audio
| Codec | Realtek ALC897 |
Environmental and Mechanical
| Dimension | 5.75" x 4" (146mm x 101.7mm) |
| Weight | 0.94 lbs (0.43 kg) |
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| EMC | CE/FCC Class A |
Interface
| Audio | Line-In / Line-Out / Mic (Audio function not available for WiTAS SKU) |
| Display | HDMI 1.4 x 1, up to 3840 x 2160 @30Hz VGA x 1, up to 1920 x 1080 (Optional: eDP 1.4b HBR3, up to 3840 x 2160) |
| SIM Slot | Nano SIM x 1 |
