Computer on Modules

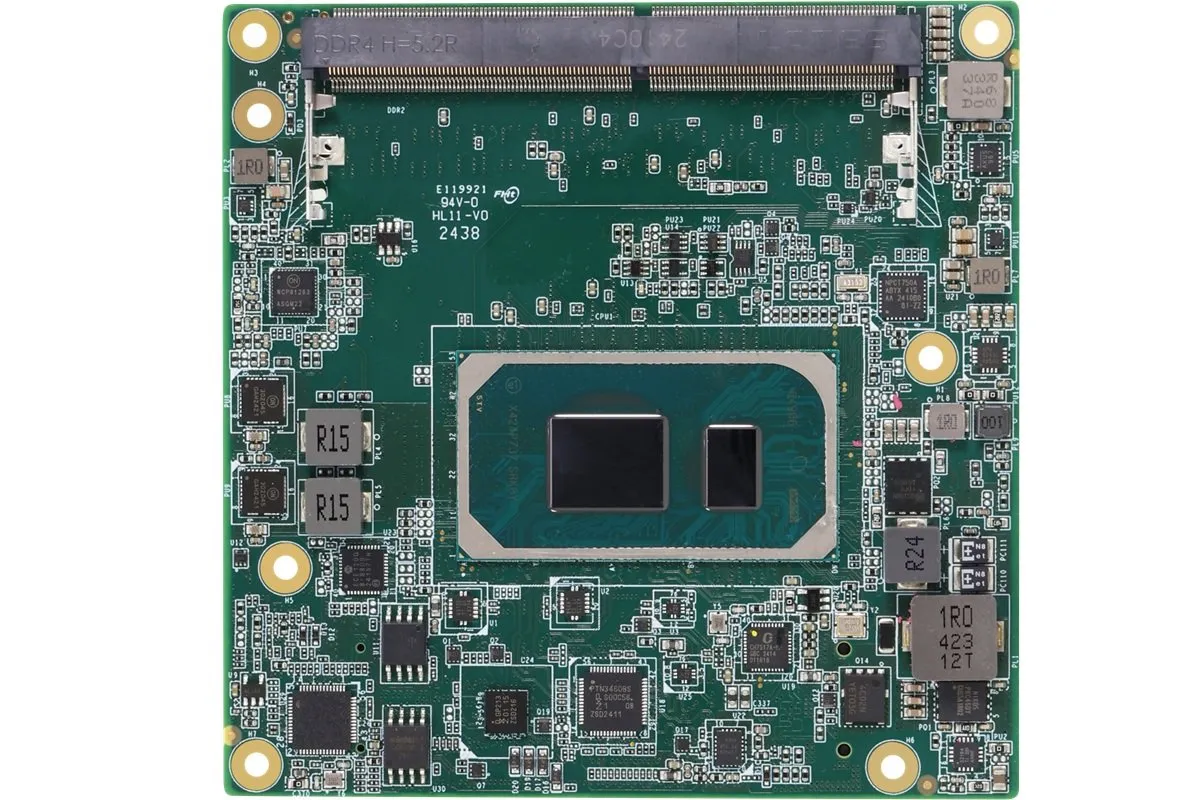

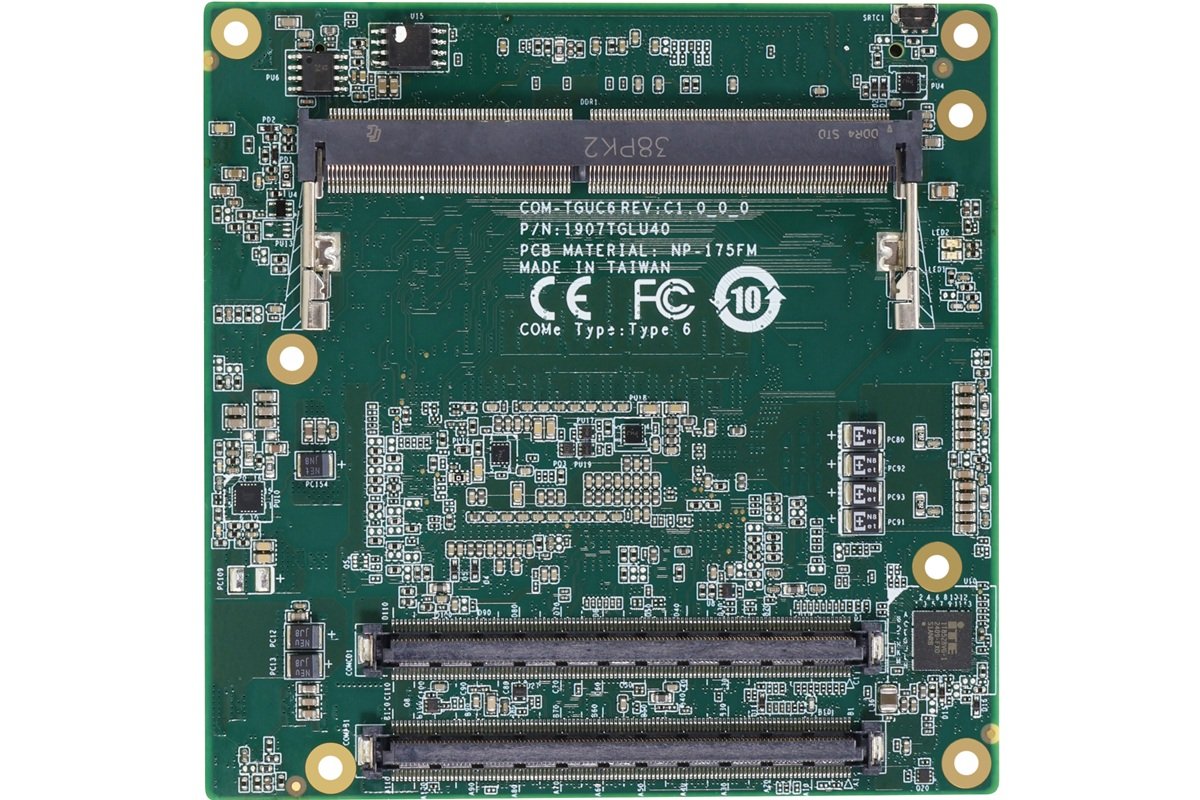

ACM-8110

COM Express Type 6 Compact Size with 11th Gen Intel® Core™/Celeron® Processors

• DDR4 3200MHz SODIMM x 2, up to 64GB
• VGA x 1, LVDS x 1, DDI x 3
• USB 2.0 x 8, USB 3.2 Gen2 x 4
• PCIe [x1] x 5, PEG [x4] x1
• Intel® Ethernet Controller I226 2.5GbE x 1
• COM Express Type 6, 3.74" x 3.74" (95mm x 95mm)

DOWNLOAD

Datasheet

Specification

System

Form Factor	COM Express Compact Size, Type 6
CPU	11th Generation Intel® Core™ Processors: Intel® Core™ i7-1185G7E (4C/8T, 1.8 GHz, 15W) Intel® Core™ i3-1115G4E (2C/4T, 2.20 GHz, 15W) Intel® Core™ i7-1185GRE (4C/8T, 1.8 GHz, 15W)
Chipset	Integrated with Intel® SoC
BIOS	AMI UEFI
Memory	DDR4 3200MHz Dual channel , SODIMM x 2, up to 64GB
Wake on LAN	Yes
WatchDog Timer	255 Levels
Security	TPM 2.0

I/O

Ethernet	Intel® Ethernet Controller I226, 2.5GbE x 1
Expansion Slot	PEG 3.0 [x4] x 1 PCIe 3.0 [x1] x 5 LPC x 1
Serial Port	2-Wire UART x 2 (Tx/Rx)
USB	USB 2.0 x 8, USB 3.2 Gen 2 x 4
GPIO	8-bit

Power Supply

Power Requirement	+12V and +5VSB for ATX, +12V for AT
Power Consumption	Intel® Core™ i7-1185G7E, 3.22A @+12V
Power Type	AT/ATX

Software

OS Support

Windows® 10 (64-bit)

Audio

High Definition Audio Interface

Environmental and Mechanical

Dimension	3.74" x 3.74" (95mm x 95mm)
Weight	0.44 lb. (0.20Kg)
Operating Temperature	32°F ~ 140°F (0°C ~ 60°C) WiTAS 2: -40°F ~ 185°F (-40°C ~ 85°C) on selected CPU SKU
Storage Temperature	-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity	0% ~ 90% relative humidity, non-condensing
EMC	CE/FCC Class A

Display

Video Output

4 Simultaneous Displays:
DDI x 3, up to 3840 x 2160
18/24-bit Single/Dual-Channel LVDS/eDP x 1, up to 1920 x 1080 / 3840 x 2160
VGA x 1, up to 1920 x 1080

Interface

HDD	SATA 6Gb/s x 2
Graphic Controller	Intel® Iris® Xe Graphics Intel® UHD Graphics
SMBus/I2C	I2C x 1, SMBus x 1
