eNVP-JOX-UBIP

CPU/GPU	NVIDIA® Jetson Orin™ NX, 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Memory	Onboard 16 GB 128-bit LPDDR5
Storage	1 x M.2 M-Key 2280, support NVMe
Real time clock	Yes
Indicators	1 x LED indicator (Power)
Wireless	N/A
Operating System	Linux (NVIDIA Jetpack 5.1 and above)

Power Requirement	12 VDC
Power Consumption	Max. 25 W (with Fan)

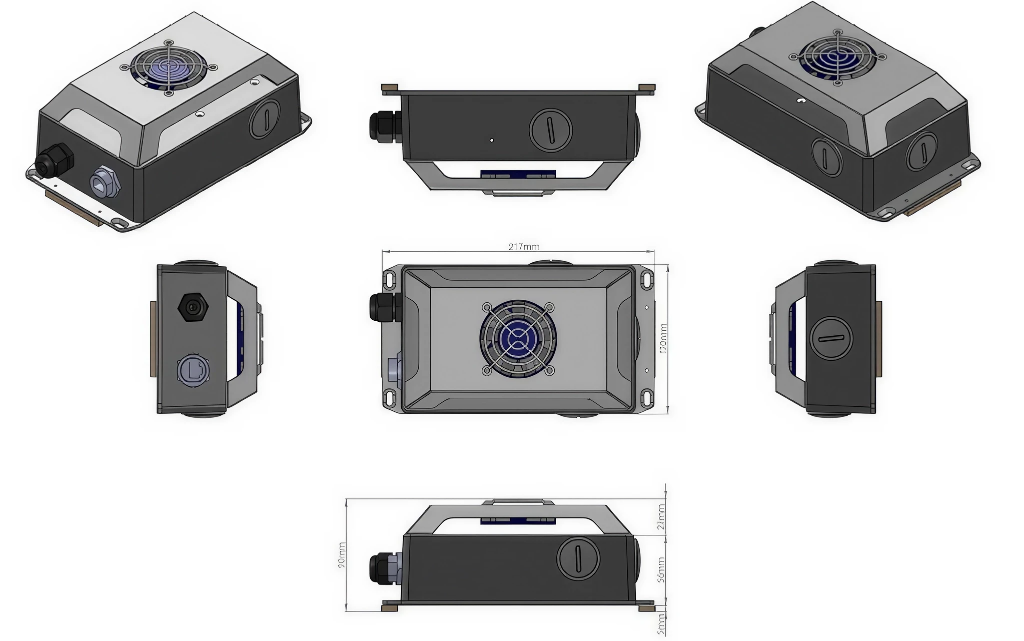

Dimension	217 x 120 x 90 mm (8.54” x 4.72” x 3.54”)
Weight	0.65 kg
Mouting/Installation	Wall Mount
Operating Temperature	-30 ~ 70 °C (-22 ~ 158 °F)
Storage Temperature	-40 ~ 85 °C (-40 ~ 176 °F)
Operating Humidity	10% ~ 95% relative humidity, non-condensing

Regulations	CE, FCC
Carrier	Planning

Ethernet	1 x GbE LAN RJ45
Power Connector	2 wire DC cable
