Edge AI Computer
Product
Model
Storage 
Expansion Slot 
Power Supply Uni 
Operating Temperature 
Dimension 
PE2000S
Model:
PE2000S
Storage:
Intel Atom® x7000E Series, Processor
Expansion Slot:
1x Mini Mini PCIe
Power Supply Uni:
9 to 36 V DC, 2-pin terminal block
Operating Temperature:
0~ 50°C
Dimension:
254 x 147 x 57 mm
PE8000G
Model:
PE8000G
Storage:
Expansion Slot:
Power Supply Uni:
Operating Temperature:
Dimension:
PC_PL64_NPI_Sa
Storage:
Expansion Slot:
Power Supply Uni:
Operating Temperature:
0–50° C (only for models that support 16 GB memory and below)
Dimension:
PC_PL64_D1_NP
Storage:
1 x M.2 2280 G4x4 (128G, 256G, 512G, 1TB)
Expansion Slot:
Power Supply Uni:
Operating Temperature:
0–50° C (only for models that support 16 GB memory and below)
Dimension:
199.7mm x 119.7mm x 33.9mm (0.81L)
PE6000G
Model:
PE6000G
Storage:
Expansion Slot:
Power Supply Uni:
960W (wide-temp)
Operating Temperature:
* -20~60°C with 35W CPU (or CPU configured as 35W TDP), and all module operating (industrial parts) * -20~55°C with 65W CPU, and all module operating (industrial parts) * 0~40° with all module operating (commercial parts)
Dimension:
225 (H) x 221 (W) x 443 (D) mm
PE4000G
Model:
PE4000G
Storage:
Expansion Slot:
Power Supply Uni:
480W (Optional)
Operating Temperature:
-20~60°C with 35W CPU (or CPU configured as 35W TDP), and all module operating (industrial parts) -20~50°C with 65W CPU, and all module operating (industrial parts) (TBD) 0~40° with all module operating (commercial parts)
Dimension:
225 (H) *198 (W) *350 (D) (TBD)
PE3000G
Model:
PE3000G
Storage:
2x hot-swappable SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/ 1,1x M.2 2280 M key NVMe socket (PCIe Gen4 x4) for NVMe SSD
Expansion Slot:
1x Mini PCIe socket, full size, support cellular module,1x M.2 2230 E-key for selected WiFi module (WiFi5/ WiFi6),1x M.2 3042/3052 B-Key with SIM slot support 5G/ 4G module ,PCIe x8 slot@Gen4
Power Supply Uni:
330W(Optional) /480W (Optional)
Operating Temperature:
-20°C~60°C (w/ 60W MXM, 45W CPU)
Dimension:
240 x 230 x 125.7 mm
PE1100N
Model:
PE1100N
Storage:
NVIDIA Jetson™Orin Orin ™NX 、Orin Orin ™Nano Nano
Expansion Slot:
Power Supply Uni:
Operating Temperature:
Dimension:

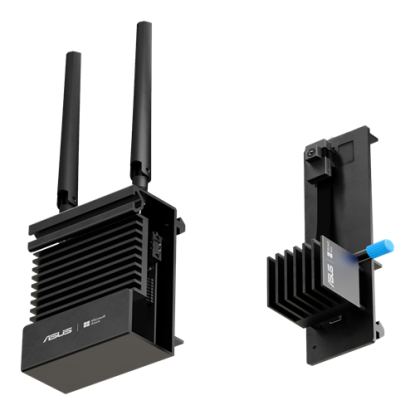

Azure Percept DK-DKSC-101
Storage:
1 x 16GB
Expansion Slot:
Power Supply Uni:
DC power input,12-24V DC input
Operating Temperature:
0~35°C
Dimension:
Azure Percept DK: 125 x 85 x 50 mm Azure Percept Vision: 90 x 50 x 53 mm

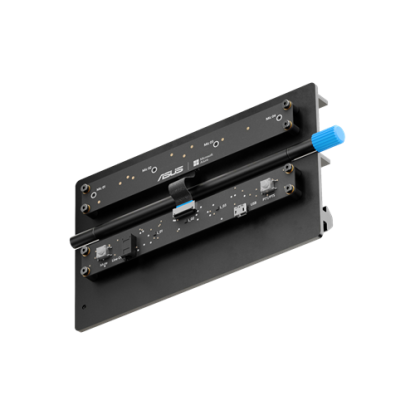

Azure Percept Audio-AS-101
Storage:
Expansion Slot:
Power Supply Uni:
Operating Temperature:
Dimension:

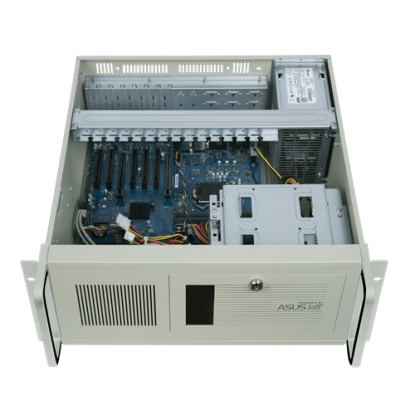

EBE-4U
Model:
EBE-4U
Storage:
2*3.5’’HDD +1*3.5’’ Slim HDD (19mm)
Expansion Slot:
7 slots, Full Height
Power Supply Uni:
300W Bronze or 500W GOLD ATX Power Supply
Operating Temperature:
0~40°C
Dimension:
430.2x457.2x175.7mm(WO/Handle), 482.6x507.3x177mm
EBE-4UG
Model:
EBE-4UG
Storage:
2*3.5’’HDD +1*3.5’’ Slim HDD (19mm)
Expansion Slot:
7 slots, Full Height
Power Supply Uni:
1x 12025 Fan Power Supply Wattage 300W Bronze or 500W GOLD ATX
Operating Temperature:
0~40°C
Dimension:
430.2x457.2x175.7mm(WO/Handle), 482.6x507.3x177mm
EB-ITX-B
Model:
EB-ITX-B
Storage:
1 x 3.5” or 1 x 2.5” HDD
Expansion Slot:
2 x PCIe x8 add-on card
Power Supply Uni:
Flex ATX 250W Gold
Operating Temperature:
0~40°C
Dimension:
310 x 252 x 109 mm (mm)
EBS-A700
Model:
EBS-A700
Storage:
2 x 3.5" HDD drive bay, 1 x 2.5" SSD drive bay, 1 x 5.25"CD-ROM
Expansion Slot:
7 x Full Height
Power Supply Uni:
-
Operating Temperature:
0~40°C
Dimension:
445(L)x330(W)x196(H)mm
EBS-I10
Model:
EBS-I10
Storage:
1 x 2.5” (256/512GB)/1 x M.2 2280 (256/512/1TB)
Expansion Slot:
1 x Low-profile add-on card (NV A2000)
Power Supply Uni:
Flex ATX 250W Gold or 350W Gold
Operating Temperature:
0~40°C
Dimension:
255 x 230 x 88 mm
EBS-S100
Model:
EBS-S100
Storage:
1 x SATA Gen 3.2 connector supports 2.5'' SSD
Expansion Slot:
-
Power Supply Uni:
9 to 36V DC
Operating Temperature:
0~ 40°C
Dimension:
186 x 135 x 62 (mm)
PE1000N
Model:
PE1000N
Storage:
-
Expansion Slot:
-
Power Supply Uni:
-
Operating Temperature:
-20 ~ 60°C w/ all modules operating
Dimension:
Board: 3.5", 146 x 105 mm System: 152 x 114 x 62 mm
PE2000U
Model:
PE2000U
Storage:
1 x SATA 6G connector supports 2.5'' SSD
Expansion Slot:
-
Power Supply Uni:
-
Operating Temperature:
-20~60°C with wide temperature parts, fanless
Dimension:
254 (H) x 147 (W) x 57 (D) mm
PE200S
Model:
PE200S
Storage:
1 x SATA 6 connector supports 2.5'' SSD ,1 x Micro SD Card slot (on-board)
Expansion Slot:
1 x Mini PCIe socket ( USB / PCIex2 mode),1 x M.2 2242 M-key socket, (SATA mode),1 x M.2 2230 E-key socket (PCIex2 / USB 2.0 mode) (supports BT/Wi-Fi module) ,1 x nano-SIM slot
Power Supply Uni:
-
Operating Temperature:
-20~60°C with wide temperature parts, fanless
Dimension:
254 (H) x 147 (W) x 57 (D) mm
PE200U
Model:
PE200U
Storage:
1 x SATA 6 connector supports 2.5'' SSD ,1 x mSATA slot (shared with Mini PCIe socket)
Expansion Slot:
-
Power Supply Uni:
12 to 24 V DC, 2-pin terminal block
Operating Temperature:
-20~60°C with wide temperature parts, fanless
Dimension:
254 (H) x 147 (W) x 57 (D) mm
PE2100U
Model:
PE2100U
Storage:
1 x SATA 6G connector supports 2.5'' SSD
Expansion Slot:
1 x Mini PCIe socket ,1 x M.2 2280 M-key socket for NVMe SSD,1 x M.2 2230 E-key socket,1 x nano-SIM slot
Power Supply Uni:
9 to 36 V DC, 2-pin terminal block
Operating Temperature:
-20~60°C with wide temperature parts, fanless
Dimension:
254 (H) x 147 (W) x 57 (D) mm
PE400D
Model:
PE400D
Storage:
-
Expansion Slot:
1 x Type II CFast slot for OS storage,2 x 2.5” HDD slots (hot-swappable, supports SATA 3.0, 7~7.5mm)
Power Supply Uni:
9 to 36 VDC, 2-pin terminal block
Operating Temperature:
-20~60°C w/ all module operating (industrial parts) at 0.3m/s air flow 0~40° w/ all module operating (commercial parts) at 0.3m/s air flow
Dimension:
176.6 (H) x 210 (W) x 250 (D) mm
PV100A
Model:
PV100A
Storage:
1 x Micro SD Card slot (on-board),1 x mSATA slot (shared with Mini PCIe socket)
Expansion Slot:
-
Power Supply Uni:
9 to 36 VDC, 3-pin terminal block *supports ignition ON/OFF control and remote power button
Operating Temperature:
-25~70°C w/ all module operating (industrial parts) 0~40° w/ all module operating (commercial module)
Dimension:
216(L) x 112(W) x 70.5(H) mm
Azure Percept Audio-AS-101
Storage:
Expansion Slot:
Power Supply Uni:
Operating Temperature:
Dimension:
Azure Percept DK-DKSC-101
Storage:
1 x 16GB
Expansion Slot:
-
Power Supply Uni:
DC power input,12-24V DC input
Operating Temperature:
0~35°C
Dimension:
Azure Percept DK: 125 x 85 x 50 mm Azure Percept Vision: 90 x 50 x 53 mm
