Capture Card

Capture Card

HDMI and 12G SDI M.2 4K video capture cards provide various vertical solution application features, which can be installed on the Intel, Nvidia, and ARM platforms for high-resolution video capturing.



Product
Model
Form Factor  
Bus Interface 
Max Input Video Resolution 
Video Input 
Max Capture Video Resolution 

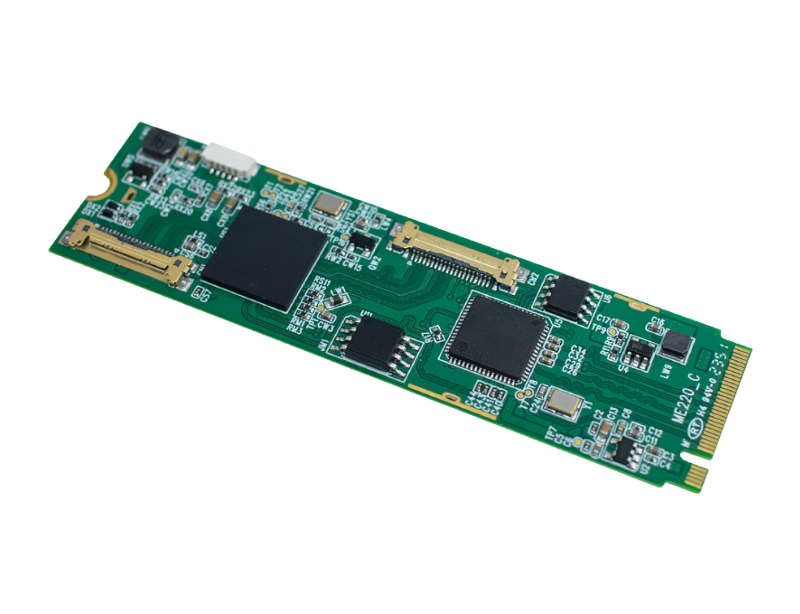

EVC-H411-2280-P0
Model：
EVC-H411-2280-P0
Form Factor ：
M.2 Type 2280 B+M
Bus Interface：
PCIe gen 2 x 2 or above
Max Input Video Resolution：
3840x2160P60
Video Input：
1xHDMI 2.0
Max Capture Video Resolution：
3840x2160P30
EVC-H411-2280-P2
Model：
EVC-H411-2280-P2
Form Factor ：
M.2 Type 2280 M
Bus Interface：
PCIe gen 2 x 4
Max Input Video Resolution：
3840x2160P144
Video Input：
1xHDMI 2.1
Max Capture Video Resolution：
3840x2160P60 (MJPEG) or 3840x2160P60 (NV12)

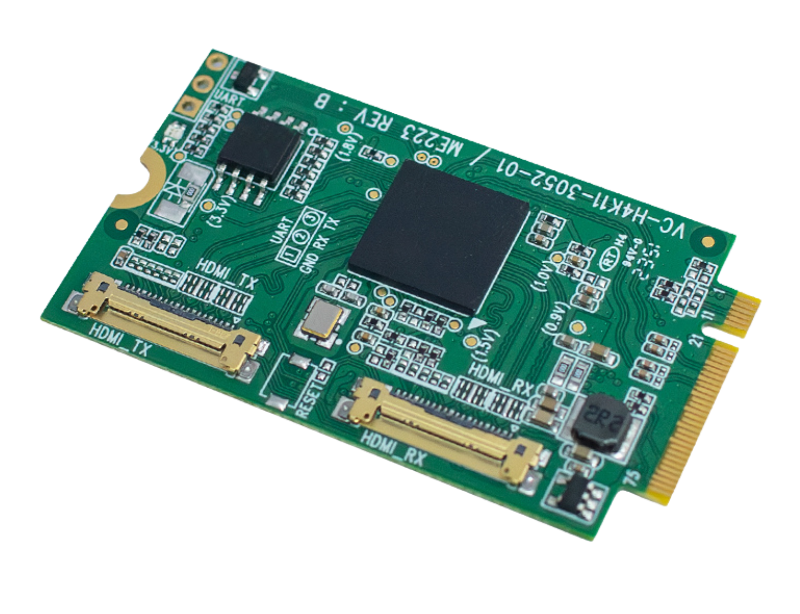

EVC-H411-3052-U1
Model：
EVC-H411-3052-U1
Form Factor ：
M.2 Type 3052 B
Bus Interface：
USB 3.0
Max Input Video Resolution：
3840x2160P60
Video Input：
1xHDMI 2.0
Max Capture Video Resolution：
3840x2160P60 (MJPEG) or 3840x2160P30 (NV12)
EVC-H411-3052-U2
Model：
EVC-H411-3052-U2
Form Factor ：
M.2 Type 3052 B
Bus Interface：
USB 3.1 gen II (10G)
Max Input Video Resolution：
3840x2160P144
Video Input：
1xHDMI 2.1
Max Capture Video Resolution：
3840x2160P60 (MJPEG) or 3840x2160P60 (NV12)

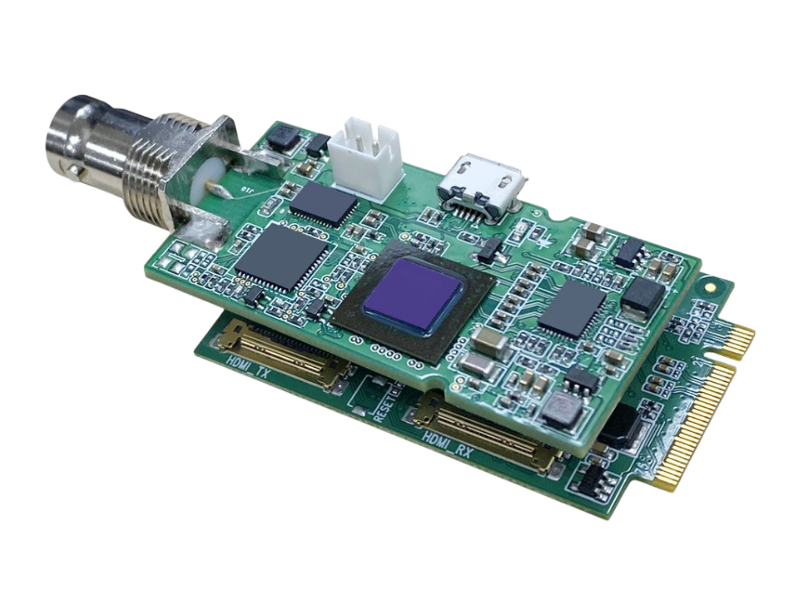

EVC-S411-3052-00
Model：
EVC-S411-3052-00
Form Factor ：
M.2 Type 3052 B
Bus Interface：
USB 3.1 gen II (10G)
Max Input Video Resolution：
12G SDI 3840x2160P60
Video Input：
1x12G SDI
Max Capture Video Resolution：
3840x2160P60 (MJPEG) or 3840x2160P60 (NV12)
