Industrial Motherboard
Product

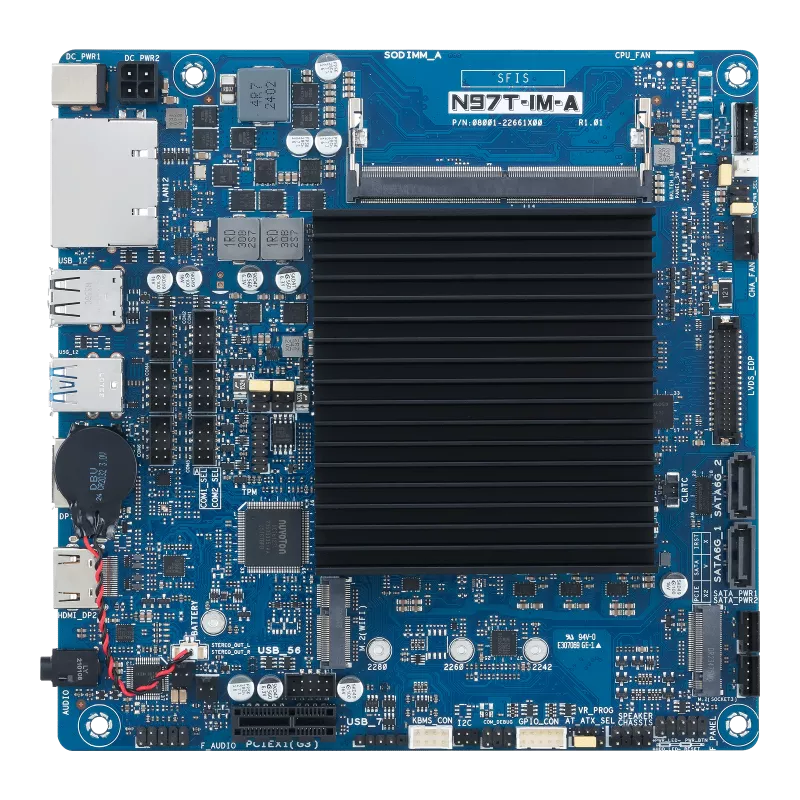

Model
N97T-IM-A
Model:
N97T-IM-A
Intel® Processor N97
-
DDR5 4800 MT/s, In-Band ECC (IBECC) Max. 16GB
10/100/1000 Mbps
2x SATA Gen 3.0, Up to 6Gb/s
H110A-IM-A
Model:
H110A-IM-A
Intel® Socket 1151 for 7th/6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors
Intel® H110 chipset
DDR4 2400/2133 MHz, Max 32GB
10/100/1000Mbps
3 x SATA Gen 3.0, up to 6Gb/s
H110A-IM-AB
Model:
H110A-IM-AB
Intel® Socket 1151 for 7th /6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors
Intel® H110 chipset
DDR4 2400/2133 MHz Max 32GB
10/100/1000Mbps
3 x SATA Gen 3.0, up to 6Gb/s M.2 1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA mode)
H110T-CM-A
Model:
H110T-CM-A
Intel® for 7th/6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors
Intel® H110 chipset
DDR4 2133/1866MHz, non-ECC, un-buffered Memory Max 32GB
10/100/1000 Mbps
2x SATA 6Gb/s port(s) 1 x SATA PWR CONN

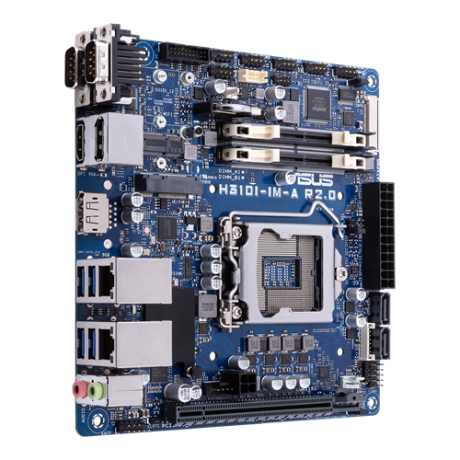

H3101-IM-A R2.0
LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors
Intel® H310 chipset
DDR4 2666/2400/2133 MHz Max. 32GB
10/100/1000Mbps
2 x SATA Gen 3.0, up to 6Gb/s, 1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe & SATA mode), mSATA 1 x full/half mini-PCIe with SATA
H3101-IM-A R3.0
LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors
Intel® H310 chipset
DDR4 2666/2400/2133 MHz Max. 32G
10/100/1000Mbps
4 x SATA Gen 3.0, up to 6Gb/s, 1 x M.2 Socket 3 with M key, type 2242/2260/2280(PCIe & SATA mode), 1 x full/half mini-PCIe with SATA

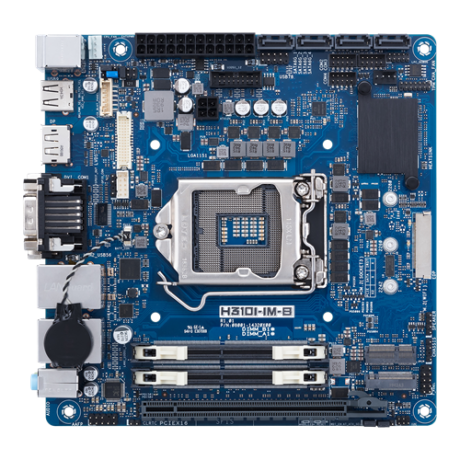

H3101-IM-B
Model:
H3101-IM-B
LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors supports
Intel® H310 chipset
DDR4 2666/2400/2133 MHz Max. 64GB
10/100/1000Mbps
4 x SATA Gen 3.0, up to 6Gb/s

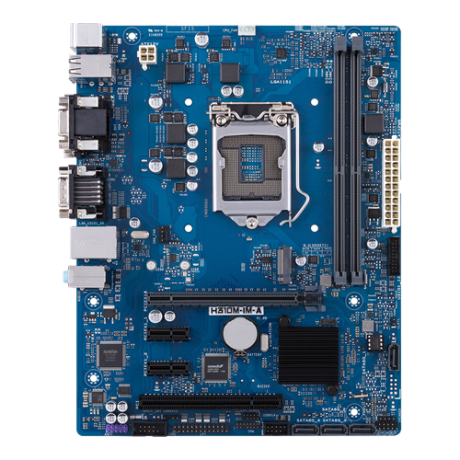

H310M-IM-A
Model:
H310M-IM-A
LGA1151 socket for the 9 th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors
Integrated
DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory max 32GB
10/100/1000Mbps
4x SATA Gen 3.0, up to 6Gb/s
H610A-IM-A
Model:
H610A-IM-A
LGA1700 Socket for Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® H610 chipset
Up to DDR4 2400/2666/2933/3200 MHz,Max. 64GB
10/100/1000Mbps
4 x SATA Gen 3.0, up to 6Gb/s, 1 x M.2 Socket 3 with M key, type 2242/2260/2280(SATA/PCIe x 1 mode)
H610I-EM-A
Model:
H610I-EM-A
LGA1700 for Intel® 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium®/ Celeron® Processors
Intel® H610 Chipset
DDR4 Max. 2 x 32GB (Total 64GB)
10/100/1000 Mbps
2 port x SATA Gen 3.0, Up to 6Gb/s

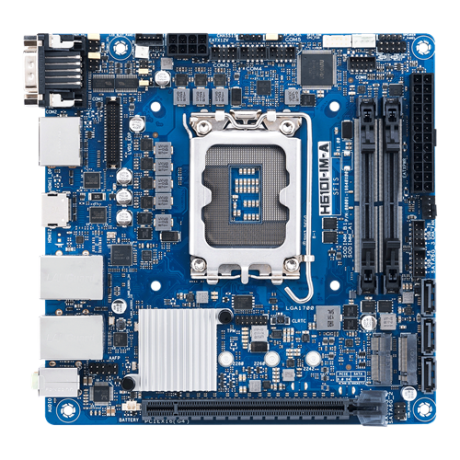

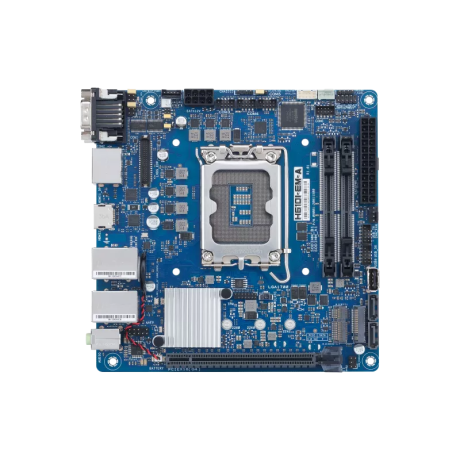

H610I-IM-A
Model:
H610I-IM-A
LGA1700 for Intel® 13th/ 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium®/ Celeron® Processors
Intel® H610 Chipset (IoTG)
DDR4 Max. 2 x 32GB (Total 64GB)
10/ 100/ 1000 Mbps
3x SATA Gen 3.0, up to 6Gb/s

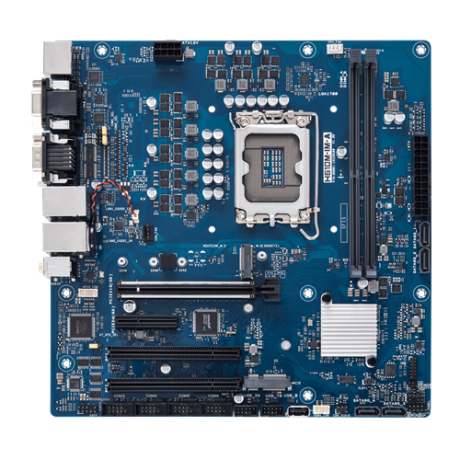

H610M-IM-A
Model:
H610M-IM-A
LGA1700 Socket for Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® H610 chipset
DDR4 2133/2400/2666/2933/3200 MHz ,Max. 64GB
10/100/1000Mbps
4 x SATA Gen 3.0, up to 6Gb/s*No.4 SATA port shared with M.2,1 x M.2 Socket with M key, type 2242/2260/2280(SATA/PCIe x4 mode)

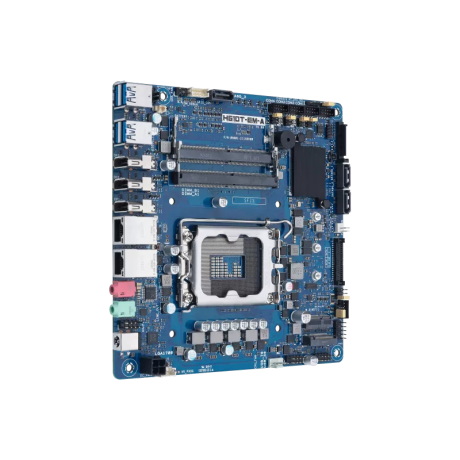

H610T-EM-A
Model:
H610T-EM-A
LGA1700 for Intel® 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® H610 Chipset
DDR4 Max. 2 x 32GB (Total 64GB)
10/100/1000 Mbps
3 port x SATA Gen 3.0, Up to 6Gb/
J3455I-CM-A
Model:
J3455I-CM-A
Build in Intel® Celeron® Quad-Core J3455 SoC onboard Processors
-
DDR3L 1866/1600/1333 MHz Non-ECC, Un-buffered Memory Max. 8GB
10/100/1000Mbps
2 x SATA Gen 3.0, up to 6Gb/s
J3455T-IM-A
Model:
J3455T-IM-A
Build in Intel®J3455 SoC onboard Processors
-
DDR3L 1866 MHz Non-ECC, Un-buffered Memory Max. 8GB
10/100/1000Mbps
1 x Full/Half-size mSATA slot(shared with Mini PCIe)

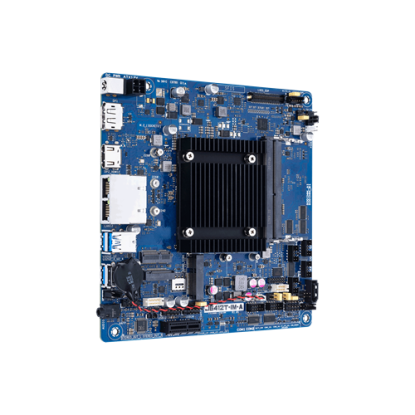

J6412T-IM-A
Model:
J6412T-IM-A
Intel® Celeron® Quad-Core J6412 SoC onboard Processors
-
DDR4 3200/3000/2800/2666/2400/2133 MHz, (non-ECC) Max. 32 GB
10/100/1000 Mbps
1 x SATA Gen 3.0, Up to 6Gb/s

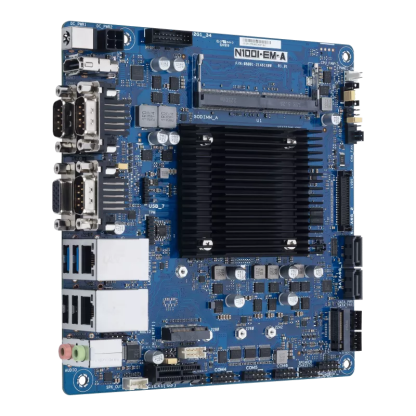

N100I-EM-A
Model:
N100I-EM-A
Intel® N100
-
DDR4 3200/3000/2800/2666/2400/2133 MHz, (non-ECC) Max. 16 GB
10/100/1000 Mbps
2 x SATA Gen 3.0, Up to 6Gb/s (One of SATA is shared with M.2 )
N3350T-IM-A
Model:
N3350T-IM-A
Build in Intel®N3350 SoC onboard Processors
-
DDR3L 1866 MHz Non-ECC, Un-buffered Memory Max. 8GB
10/100/1000Mbps
2 x SATA Gen 3.0, up to 6Gb/s, 1 x Full/Half-size mSATA slot(shared with Mini PCIe)
N4200T-IM-A
Model:
N4200T-IM-A
Build in Intel®N4200 SoC onboard Processors
-
DDR3L 1866 MHz Non-ECC, Un-buffered Memory Max. 8GB
10/100/1000Mbps
2 x SATA Gen 3.0, up to 6Gb/s, 1 x Full/Half-size mSATA slot(shared with Mini PCIe)
N5105I-IM-A
Model:
N5105I-IM-A
Intel® Celeron® Quad-Core N5105 SoC onboard Processors (Jasper Lake)
Integrated
DDR4 2933/2666/2400/2133 MHz Max. 32 GB
10/100/1000 Mbps
2 x SATA Gen 3.0, Up to 6Gb/s

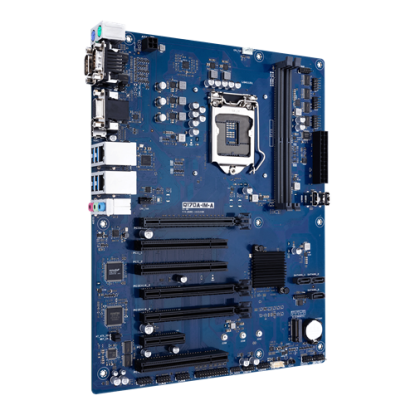

Q170A-IM-A
Model:
Q170A-IM-A
Intel® Socket 1151 for 7th/6th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors
Intel® Q170 chipset
DDR4 2400/2133 MHz Max. 32GB
10/100/1000Mbps
3 x SATA Gen 3.0, up to 6Gb/s

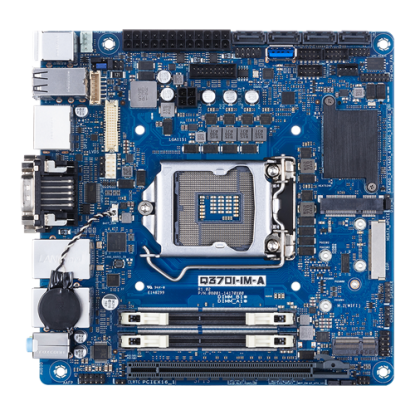

Q370I-IM-A
Model:
Q370I-IM-A
LGA1151 socket for the 9th/8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® processors
Intel® Q370 chipset
DDR4 2666/2400/2133 MHz Max. 64GB
10/100/1000Mbps
4 x SATA Gen 3.0, up to 6Gb/s, mSATA:1 x Full/Half size (shared with Mini PCIe Slot)
Q370M-IM-A
Model:
Q370M-IM-A
LGA1151 socket for 9th/8th Generation Intel® Core™ i9/ i7/ i5/ i3/Pentium®/Celeron® Processors
Intel® Q370 Chipset
DDR4 2666/2400/2133MHz Max. 64GB
10/100/1000Mbps
6 x SATA 6.0 Gb/s ports (gray), support Raid 0,1,5,10

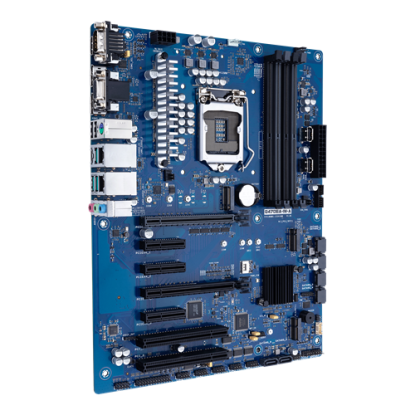

Q470EA-IM-A
Model:
Q470EA-IM-A
Intel® Socket 1200 for 10th Generation Core™ i9/ i7/ i5/ i3/Pentium®/Celeron® Processors
Intel® Q470E Chipset
DDR4 2400/2666/2933 MHz Max. 128GB (32GB per U-DIMM)
10/100/1000Mbps/2500Mbps
6 x SATA Gen 3.0, up to 6Gb/s* , RAID 0/1/5/10 *If install M.2 PCIe x4/ SATA SSD on M.2 M key slot, 2/ 1 SATA port will be disabled.
Q470EI-IM-A
Model:
Q470EI-IM-A
LGA1200 Socket for The 10th Generation Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors Supports 14nm CPU
Intel® Q470E Chipset
DDR4 2933/2666/2400/2133 MHz Max. Overall: 64GB, Per Module:32GB
10/100/1000 Mbps
3 x SATA Gen 3.0, Up to 6Gb/s, 1 x M.2 Socket 3 with M key, Type 2242/2260/2280 (PCIe x4 & SATA mode)
Q670EA-IM-A
Model:
Q670EA-IM-A
LGA1700 for Intel® 13th / 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® Q670E Chipset
DDR5 4400MT/s (2DPC - 1DIMM 1R&2R),4000MT/s (2DPC – 2DIMM 1R),3600MT/s (2DPC – 2DIMM 2R),Max. 128GB
10/100/1000/2500 Mbps
7 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10
Q670EM-IM-A
Model:
Q670EM-IM-A
LGA1700 for Intel® 13th/ 12 th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® Q670E Chipset
DDR5 4400MT/s (2DPC - 1DIMM 1R&2R),4000MT/s (2DPC – 2DIMM 1R),3600MT/s (2DPC – 2DIMM 2R).Max. 128GB
10/100/1000/2500 Mbps
7 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10
V1605I-IM-A & R1505I-IM-A
AMD RyzenTM Embedded V1605B/R1505G APUs
-
DDR4 2400MHz, ECC support Max. 32GB
2 x Realtek® 8111H, supports WOL/PXE/Connector 2 x RJ-45
1 x SATA port Gen 3.0, up to 6Gb/s 1 x M.2 (Key B, 2242 / 2260 / 2280) PCIe x2 and SATA mode* 1 x CFAST*(*If CFAST is enabled, M.2 SATA mode will be disabled, and vice versa. You may configure this setting in the BIOS)
R1606I-IM-B
Model:
R1606I-IM-B
AMD RyzenTM Embedded R1606G APU
-
DDR4 2400MHz, ECC support Max. 32GB
2 x Realtek® 8111H, support WOL/PXE/2 x RJ-45
1 x SATA port Gen 3.0, up to 6Gb/s 1 x M.2 (Key M, 2242 / 2260 / 2280) PCIe x2 and SATA mode* 1 x CFAST*
R2314I-IM-A
Model:
R2314I-IM-A
AMD RyzenTM Embedded R2314
-
DDR4 up to 2667 MHz, ECC support Max. 32GB
2 x Realtek® 8111H, support WOL/PXE /2 x RJ-45
1 x SATA port Gen 3.0, up to 6Gb/s 1 x M.2 (Key M, 2242 / 2260 / 2280) PCIe x2 and SATA mode* 1 x CFAST*
R680EA-IM-A
Model:
R680EA-IM-A
LGA1700 for Intel® 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® R680E Chipset
DDR5 4400MT/s (2DPC - 1DIMM 1R&2R) (ECC support)*4000MT/s (2DPC – 2DIMM 1R) 3600MT/s (2DPC – 2DIMM 2R) *ECC is available only while using ECC memory. Max. 128GB
1 x Intel® i210AT 1 x Intel® i226V 1 x Intel® i226LM (Intel vPro supported) Connector 3 x RJ-45
7 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10
R680EI-IM-A
Model:
R680EI-IM-A
LGA1700 for Intel® 13th , 12th Gen. Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors
Intel® R680E Chipset
Up to DDR5 4800 MHz, ECC support Max. 2 x 32GB (Total 64GB)
1 x Intel® i210AT (co-lay i211AT), 1 x Intel® I225LM (Intel vPro supported) / Connector 2 x RJ-45
4 x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10
V1605I-IM-B & R1505I-IM-B
AMD RyzenTM Embedded V1605B/R1505G APUs
-
DDR4 2400MHz, ECC support Max. 32GB
2 x Realtek® 8111H, support WOL/PXE/2 x RJ-45
1 x SATA port Gen 3.0, up to 6Gb/s 1 x M.2 (Key M, 2242 / 2260 / 2280) PCIe x2 and SATA mode* 1 x CFAST*
W480EI-IM-A
Model:
W480EI-IM-A
LGA1200 Socket for The 10th Generation Intel® Core™ i9/ i7/ i5/ i3/ Pentium® /Celeron® Processors Supports 14nm CPU
Intel® W480E Chipset
DDR4 2933/2666/2400/2133 MHz (ECC support)* *ECC support is available only while using an Intel® Xeon® processor and ECC memory. Max. Overall: 64GB, Per Module:32GB
1 x Intel® I211AT, 1 x Intel® I219LM/2 x RJ-45
3 x SATA Gen 3.0, Up to 6Gb/s/1 x M.2 Socket 3 with M key, Type 2242/2260/2280 (PCIe x4 & SATA mode)
