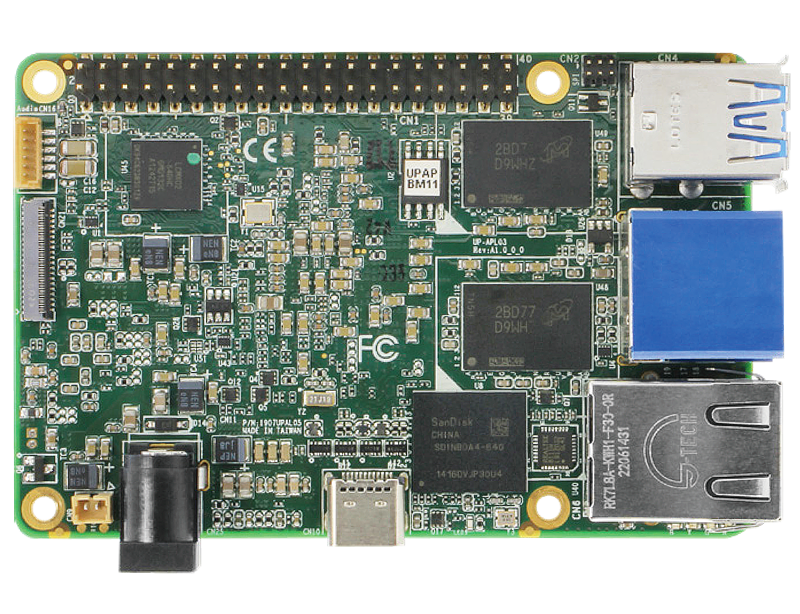

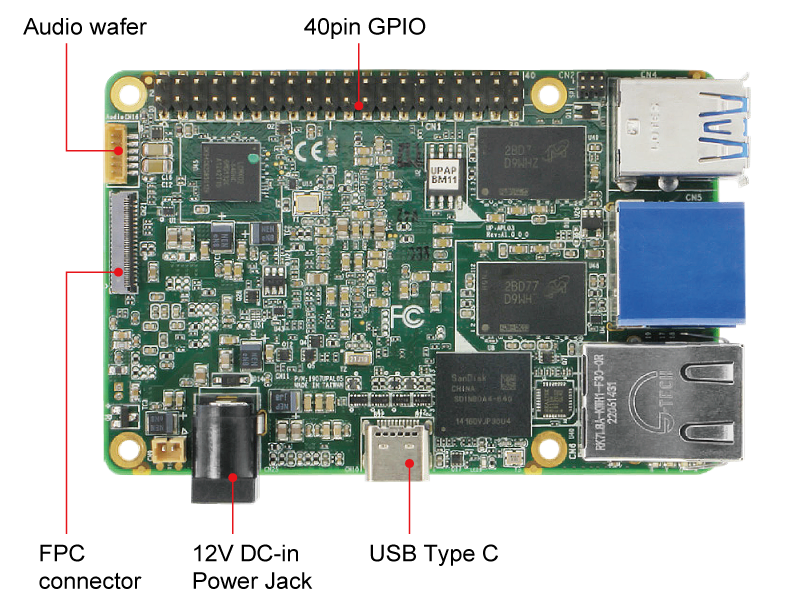

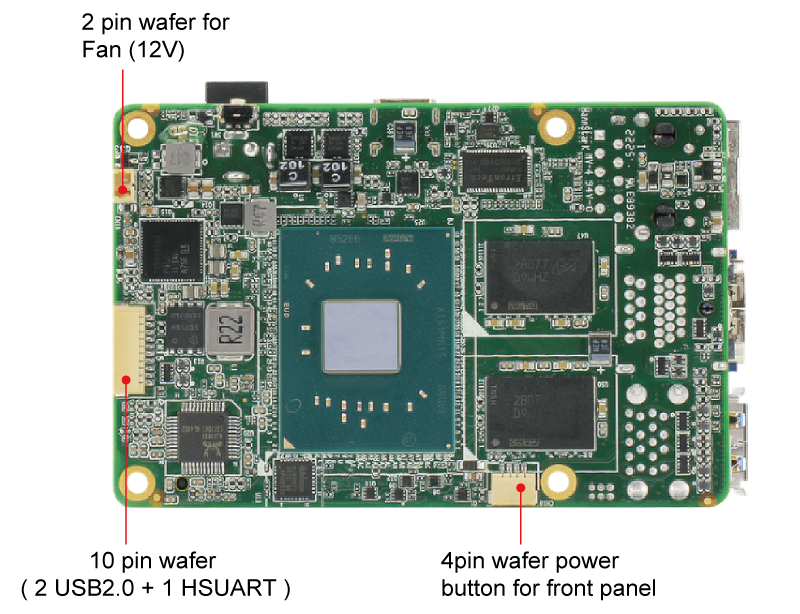

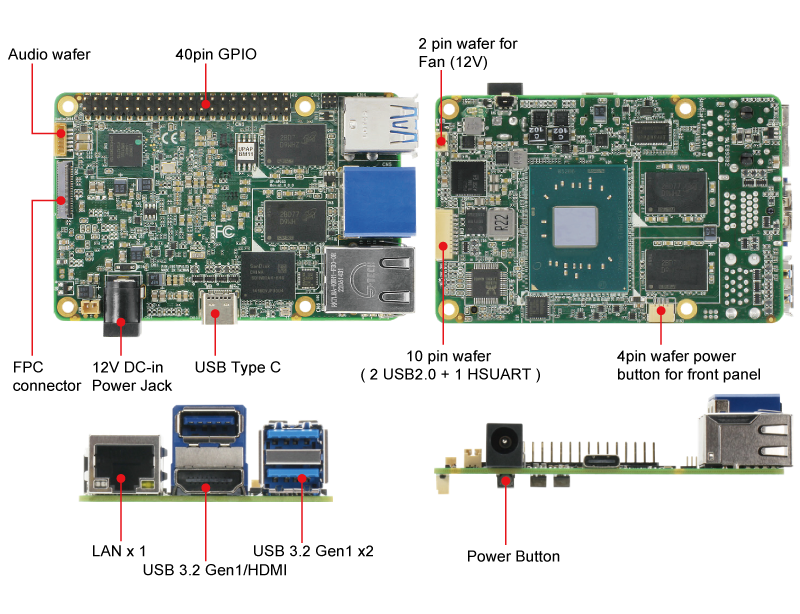

SBC Intel Apollo Lake SoC
1. Onboard LPDDR4 Memory up to 8GB
2. Onboard eMMC Storage up to 64GB
3. Dual displays up to 4K at 60Hz
4. Support M.2 2230 E-Key / M.2 2280 M-Key /
5. M.2 3052 B-Key ( via carrier board )
6. 40 pin GPIO x 1
7. 6 pin wafer for Audio x 1
8. TPM 2.0
| System |
| CPU | A1 : Intel® Pentium ® N4200, Quad -Core,2M Cache,1.1GHz (2.5GHz), 6W A2 : Intel® Celeron® N3350, Dual-Core, 2M Cache,1.1GHz (2.4GHz), 6W,2 |
| Chipset | Intel Apollo Lake SoC |
| Memory | N3350 On board 2GB N4200 On board 4GB |
| BIOS | AMI UEFI BIOS |
| Video |
| Graphic Controller |
Intel® Gen9 HD Graphics |

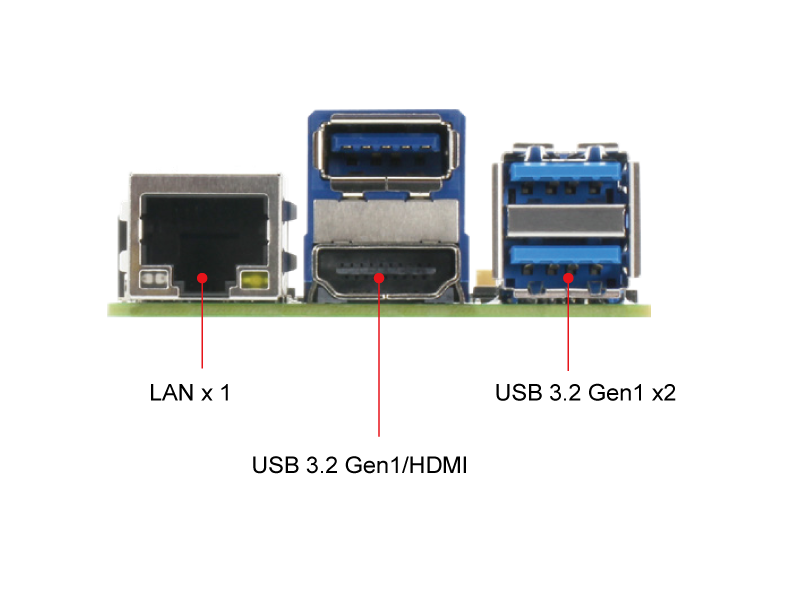

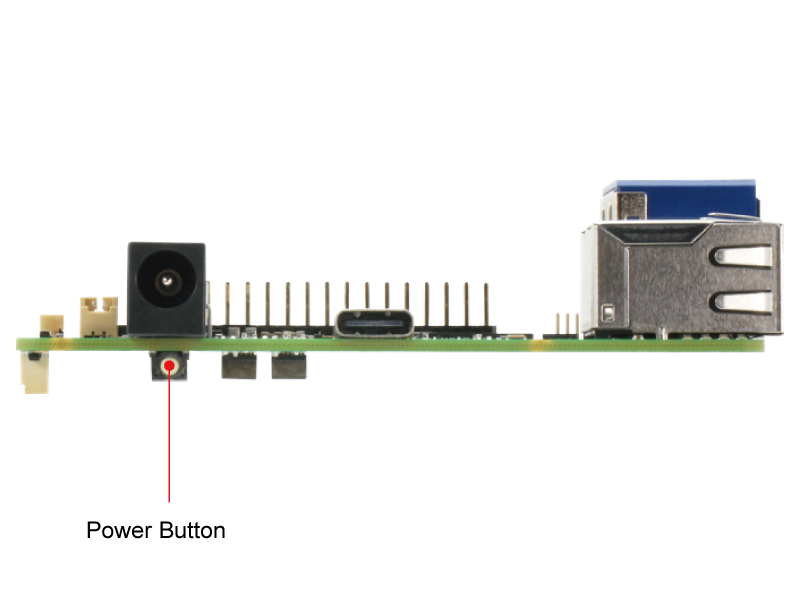

| Video Memory | Shared Memory |
| Video Interface | ● 1 x HDMI 1.4b ● 1 x DP 1.2 Via USB Type C connector |
| Storage |
| Storage | A1:On board 32GB A2:On board 16GB |
| I/O |
| Ethernet Chip | 1 x GbE LAN(RJ45) |
| Expansion Interface | 40 Pin GPIO Header,1x M.2(2230/2242/2280) 1 x M.2 (3052,)Via Carrier Board |
| USB | 3 x USB 3.2Gen1 Type A,2 x USB 2.0 |
| GPIO | 40 Pin GPIO (Via Carrier board) |
| Audio | Realtek ALC888 High Definition Audio 1 x Line in, 1 x Line out |
| Other I/O | 2 pin wafer for Fan(12V) x1 2 pin wafer for RTC Battery x1 6 pin wafer for Audio(line out+MIC in) x1 10 pin wafer(2 USB2.0+1HSUART) x1 HAT 40 pin header x1 4 pin wafer power button for front panel x1 41 pin FPC connector for high speed expend x1 power button x1 |
| Power Requirement |
| Power Input | 12V DC in |
| Software |
| OS Support | Windows 10 Full,, Windows IOT CORE Yocto Project 3.1 Kernel 5.4,Ubuntu 18.04 |
| Mechanical & Environment |
| Dimension | 85 x 56 mm (3.34” x 2.20”) |
| Operating Temp. | 0~60oC |
| Safety | RoHS |
| Packing List |
| ● AEM-APL1E1-AX |
| Ordering Information |
| AEM-APL1E1-A1 | Intel Pentium N4200, Quad Core, 2M cache, 1.1GHz (2.5GHz), 6W,4GB RAM,32GB Storage |
| AEM-APL1E1-A2 | Intel Celeron N3350, Dual Core, 2M cache, 1.1GHz (2.4GHz), 6W,2GB RAM,16GB Storage |
Specifications are subject to change without notice.
