| Description |
| Introducing the Acrosser IES-20A1, a cutting-edge industrial-grade solution featuring the powerful Intel® Elkhart Lake SoC Processor. With 1 DDR4 3200MHz SODIMM slot supporting up to 32GB of memory, this robust system is equipped with 4 high-speed 2.5GbE Ethernet Ports for seamless connectivity. Enhanced security is ensured with TPM 2.0 integration. The IES-20A1 also offers versatile expansion options with M.2 slots including 2230 E-key, 2242 M-key, and 3042 B-key configurations. Experience top-tier performance and reliability with the Acrosser IES-20A1. |

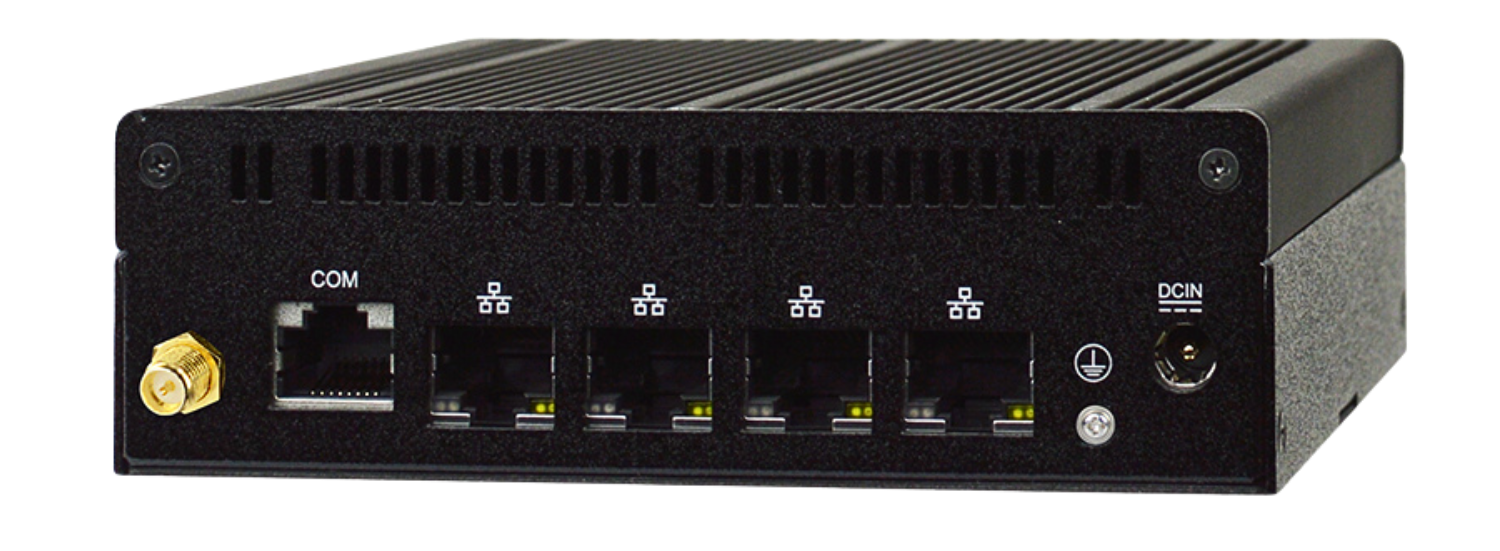

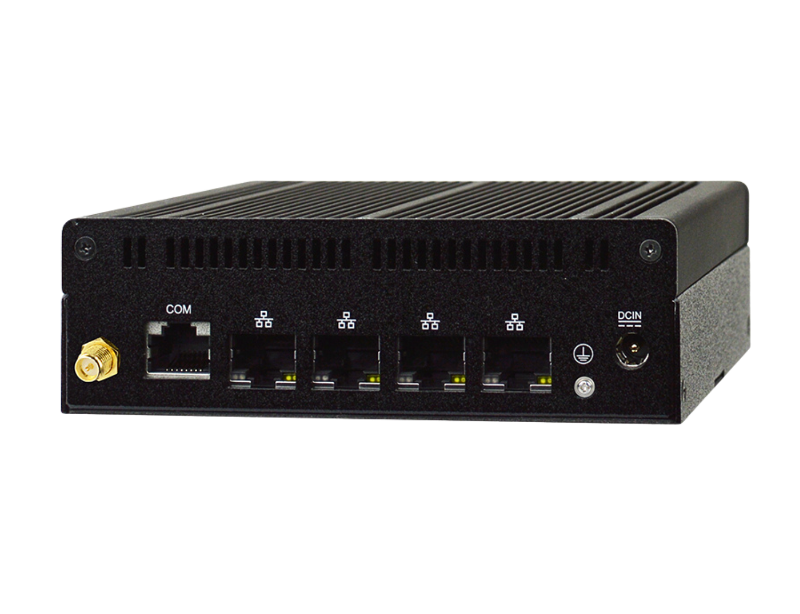

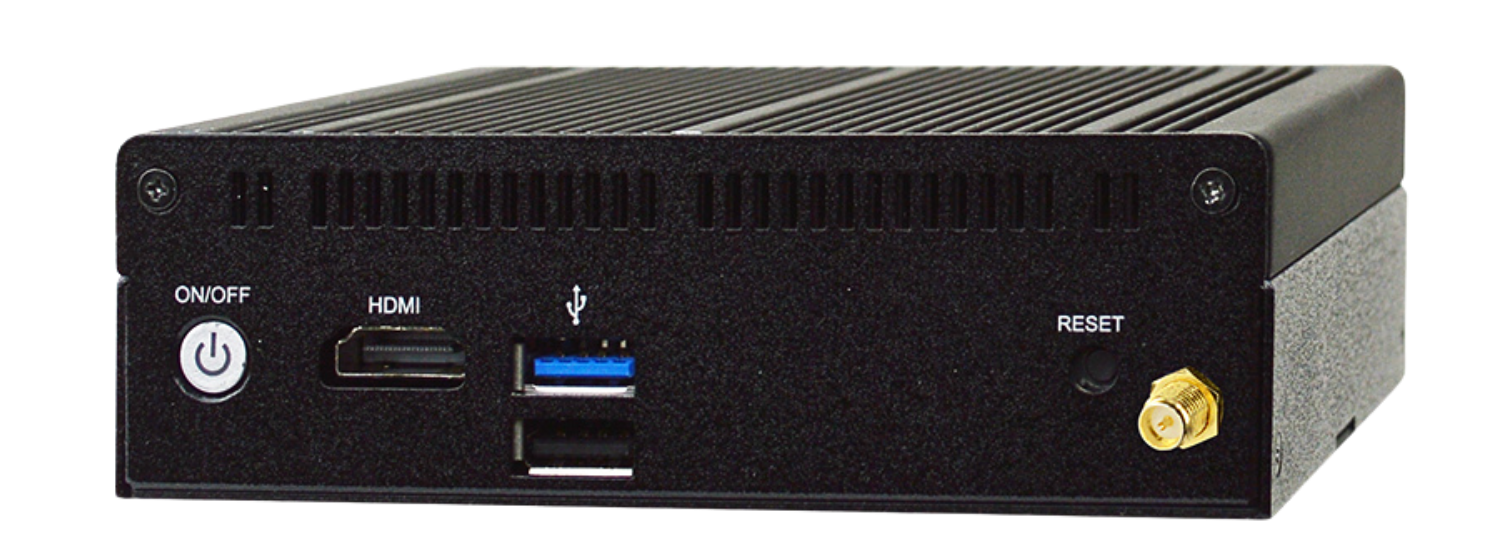

| I/O Connectors |
  |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
| ● Intel® Elkhart Lake SoC Processor ● 1 x DDR4 3200MHz SODIMM up to 32GB ● 4 x 2.5GbE Ethernet Ports ● TPM 2.0 ● M.2 2230 E-key x 1, M.2 2242 M-key x 1, M.2 3042 B-key x 1 |
| |
| System |
| CPU/GPU | Intel® Elkhart Lake SoC Processor (J6412) |
| Memory | 1 x DDR4 3200MHz SO DIMM up to 32 GB |
| Storage | 64GB eMMC Onboard 1 x M.2 M key (2242, PCIe Gen.3 x2/SATA interface) support NVME, (co layout M.2 B key) *Note: This M key is designed with B key slot, please u s e the B/M key M.2 card for storage expansion |
| Real time clock | Yes |
| Indicators | Power LED |
| Cellular | Support |
| Wireless | Support |
| Operating System | Windows 11, Linux |
| Power Supply |
| Power Requirement |
DC 12V Power input |
| Environmental and Mechanical |
| Dimension | 125 x 109 x 39.5 mm |
| Weight | 880g |
| Mouting/ Installation |
TBD |
| Operating Temp. | -20°C to 60°C |
| Storage Temp. | -40°C to 85°C |
| Operating Humidity | 10~85% (non-condensing) |
| Certification |
| Regulations | CE, FCC, LVD |
| Interface |
| Serial Port | 1 x COM (RJ45 Type) |
| Ethernet | 4 x Intel i225-V 2.5GbE |
| USB | 1 x USB 3.1 1 x USB 2.0 |
| Display | 1 x HDMI 2.0 |
| Power Connector | DC Jack |
| Expansion Slot | 1 x M.2 E-key key (2230, PCIe Gen.3 x1/USB2.0 interface) 1 x M 2 B key (3042/3052, USB3.1 interf ace) 1 x SIM Card Holder (If you use M.2 B-key type 3042/3052 card, M.2 M key type 2242 is not available;vice versa) |
| Other Interface | Power Button Reset |
| Ordering Information |
| Part Number | Intel Elkhart Lake SoC Processor J6412 CPU |
| Packing List | 1. IES-20A1 2. Screws Package 3. Wall Mount |
| Optional Accessories |
| 4AR33-1203A-TD1 | Adapter DC 12V |
| 4AR31-12033-US1 | Power Cord |
Specifications are subject to change without notice.
| |

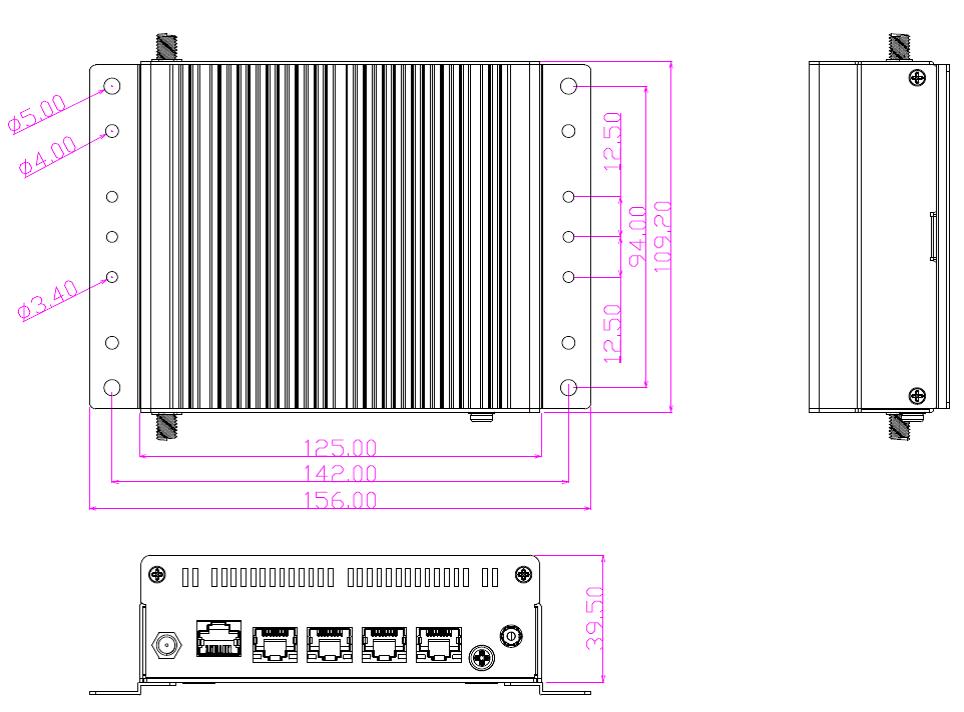

| Dimension |
 |
| |
