| Description |

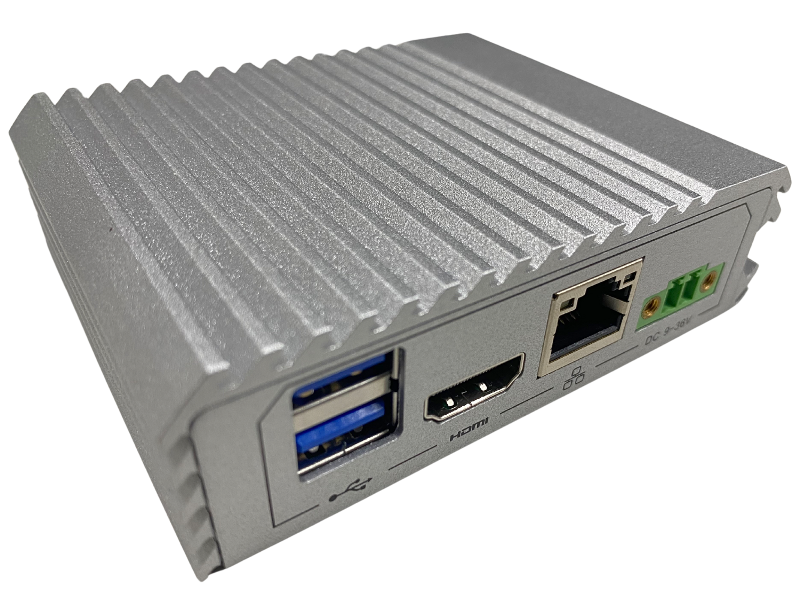

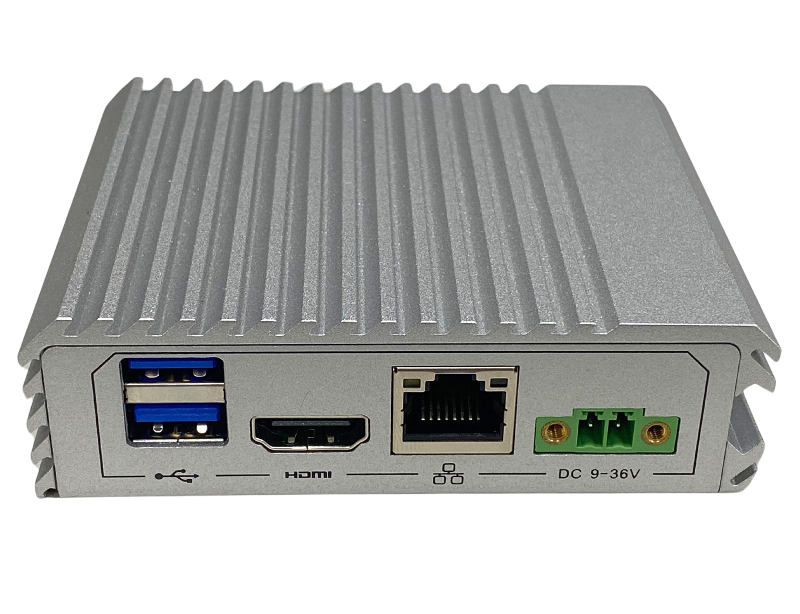

EAC-10N3(Preliminary), powered by NVIDIA® Jetson Orin™ NX, showcases impressive AI capabilities. It comes equipped with multiple I/O interface connections for efficient data collection, including Gigabit LAN, USB 3.2, Series Ports, and HDMI. With a wide range power input of 9~36VDC, this device is adaptable to various power sources. Designed to be compact, lightweight, and conveniently portable, the EAC-10N3 is the perfect AI BOX for your computing needs.   |
| I/O Connectors |
  |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
| • Powered by NVIDIA® Jetson Orin™ NX • Multiple I/O interface connections for data collection • Gigabit LAN , USB 3.2, Series Ports, HDMI • Wide range power input 9~36VDC • Compact, lightweight and conveniently portable AI BOX |
| |
| System |
| CPU/GPU | NVIDIA® Jetson Orin™ NX 6/8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
| Memory | Onboard 8/16GB 64/128-bit LPDDR5 |
| Storage | 1 x M.2 M-Key 2242, support NVMe |
| Real time clock | Yes |
| Indicators | LED indicator x 1 (Power) |
| Wireless | 1 x M.2 E-Key 2230 |
| Operating System | Linux (NVIDIA Jetpack 5.1.2 and above) |
| Power Supply |
| Power Requirement |
9 to 36 VDC |
| Power Consumption | Max. 25W (with Fan) |
| MTBF (Hours) | - |
| Environmental and Mechanical |
| Dimension | 94.6mm x 76mm x 28.55mm |
| Weight | 0.3 kg |
| Mouting/ Installation |
Din Rail, Wall Mount, VESA |
| Operating Temp. | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage Temp. | -40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 10% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |
| Interface |

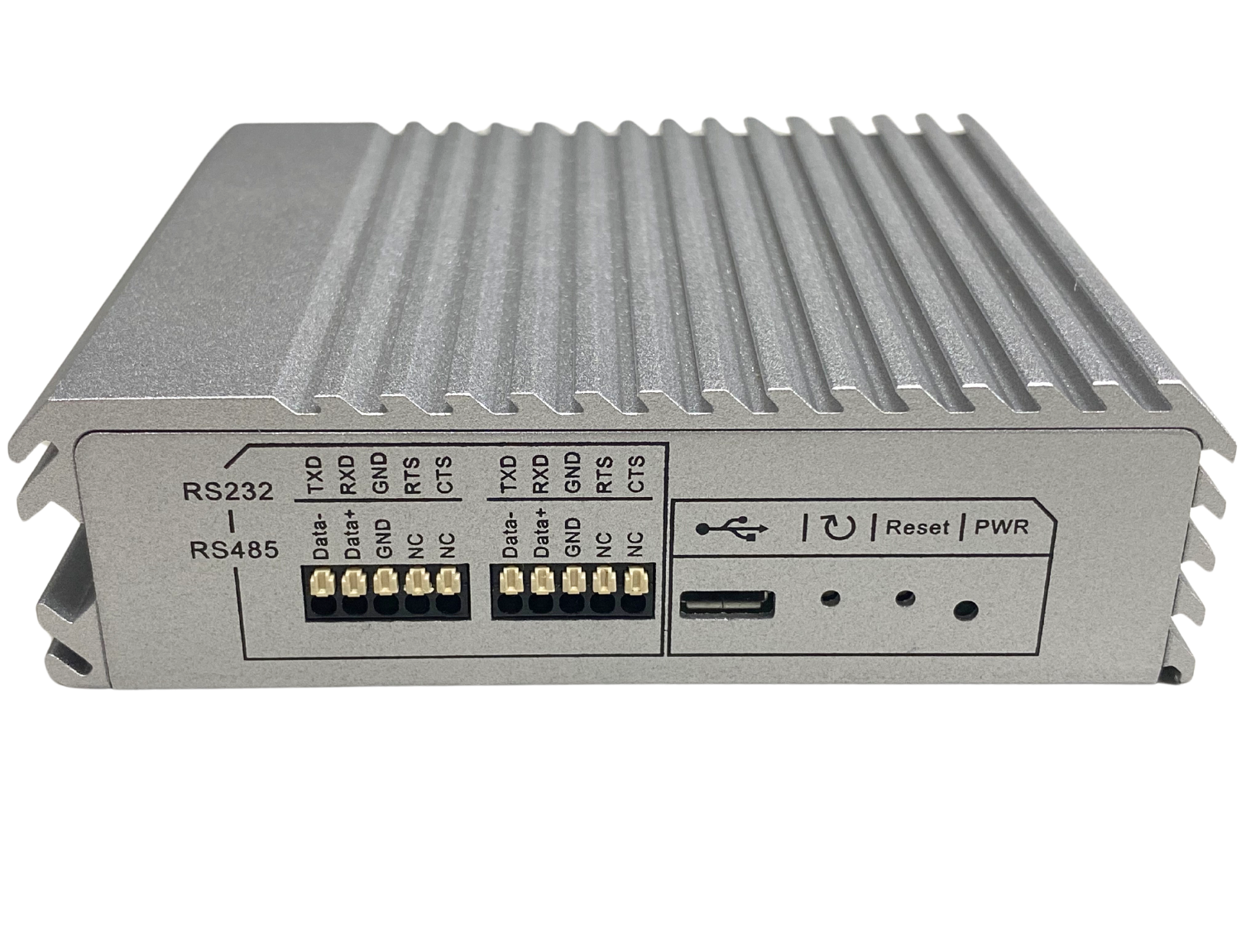

| Serial Port | 2 x RS-232/485 switchable |
| CAN Bus | - |
| Ethernet | Gigabit Ethernet RJ45 x1, Fast Ethernet RJ45x1 |
| USB | 2 x USB 3.2 Gen1, Type-A |
| DI/DO | - |
| AI/AO | - |
| Display | 1 x HDMI 2.0-Out |
| Power Connector | 2-pin Terminal Block |
| Debug Port | 1 x Micro USB for console |
| Expansion Slot | 1 x MIPI CSI-2 with FPC connector |
| Other Interface | - |
| Ordering Information |
| Part Number | EAC-10N3 |
| Packing List | EAC-10N3 BOX x1 2-pin Terminal block Connector x1 |
| Optional Accessories |
| B01XUD12060AS3 | Adapter (In:100-240V / Out: DC12V 5A 60W) |
| 4K02X00000030AR | Power Cord EU |
| 4K02X00000020AR | Power Cord US |
Specifications are subject to change without notice.
| |
