The IES-12A1 is an Intel Elkhart Lake IoT Edge Embedded System that features an onboard LPDDR4 memory with a capacity of 4GB and eMMC storage with a capacity of up to 64GB. It also has dual HDMI 2.0 displays that support 4K resolution at 60Hz, dual RJ45 GbE LAN, 2 USB 3.2 Gen1 ports, 2 USB 2.0 ports, and 2 RS232/422/485 ports for serial communication. The device is also equipped with TPM 2.0 for security and has a fan-less design for quiet operation.

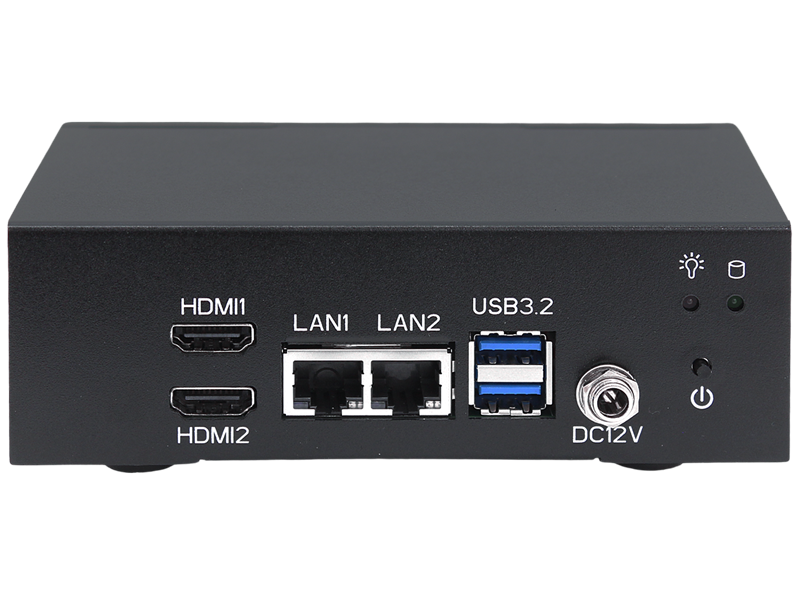

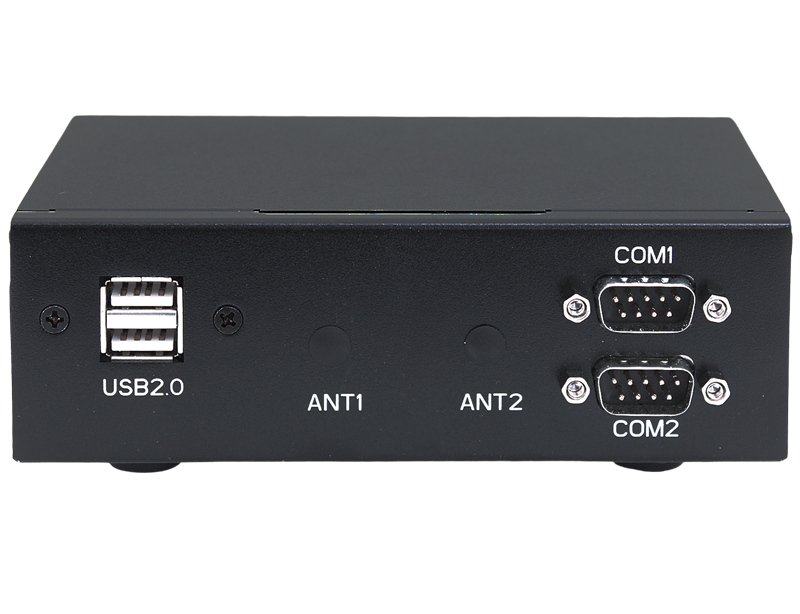

 I/O Connectors
  Ask an Expert  >



 Acrosser Academy
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

● Onboard LPDDR4 Memory 4GB
● Onboard eMMC Storage up to 64GB
● Dual HDMI 2.0 displays up to 4K at 60Hz
● Dual RJ45 GbE Lan
● 2 x USB 3.2 Gen1,2 x USB2.0
● 2 x RS232/422/485
● TPM 2.0
● Fan-Less design

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 CPU  A1:Intel® Celeron ® N6210, Dual -Core, 1.5M Cache,1.2GHz (2.6GHz), 6.5W
A2: Intel® Celeron® J6412, Quad-Core, 1.5M Cache, 2GHz (2.6GHz), 10W
 Chipset  Intel Elkhart Lake SoC
 Memory  N6210 On board 4GB
 J6412 On board 4GB
 WatchDog Timer  Software programmable 0~255 sec
 Intel® Gen10 UHD Graphics
 Video Memory  Shared Memory
 Video Interface  2 x HDMI 2.0
 Storage  A1:On board 32GB
 A2:On board 64GB
 Ethernet  2 x GbE LAN(RJ45)
 Expansion Slot  1x M.2 2230 E Key
 1x Mini-PCI-e
 USB  2 x USB 3.2Gen1 Type A,2 x USB 2.0 Type A,
 GPIO  4 bit GPIO (Reserved)
 COM  2 x RS232/422/485
 Optional Parts  Power adaptor + Power Code
 Din Rail Mount Kits
 Intel Wi-Fi 6E Module
 Sata & Power cable
 Power Requirement
 Power Input  12V DC in
 OS Support  Windows 10 Full,, Windows IOT
 Kernel 4.8,Ubuntu 22.04
 Mechanical & Environment
 Dimension  140 x 90 x 45mm
 Operating Temp.  0~60oC (32~140oF)
 Safety  RoHS
 Optional items
 ● Power Adapter.12V.+ power cord x 1
 ● DIN-Rail Mount Kit x 1
 ● Intel Wi-Fi 6E AX210NGW + 2 x Antenna + Cables x 1
 ● Sata & power cable x 1
 Ordering Information
IES-12A1-01  N6210.2HDMI+ Fanless design
 4GB LPDDR4 .2LAN.2COM.4USB.32G eMMC.mSATA.M.2 2230 E.
IES-12A2-02  J6412.2HDMI+ Fanless design
 4GB LPDDR4 .2LAN.2COM.4USB.64GB eMMC.mSATA.M.2 2230 E.

 Specifications are subject to change without notice.
