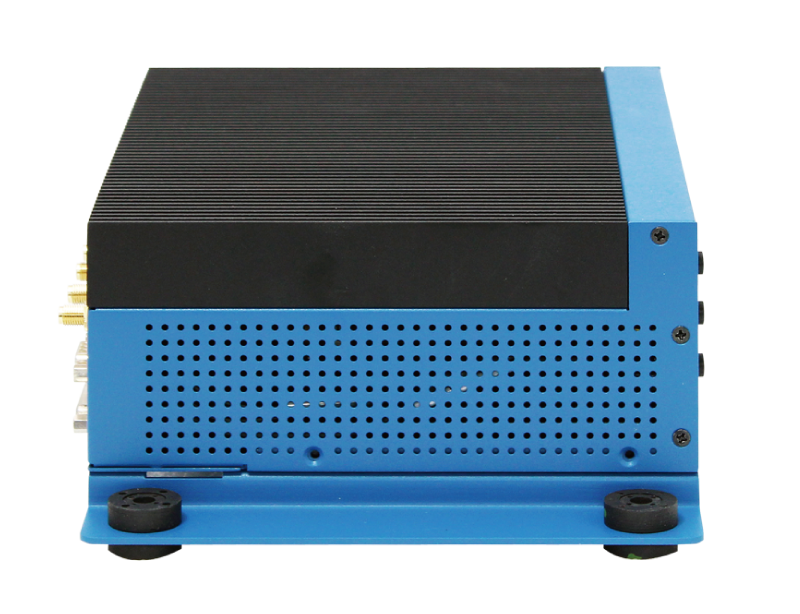

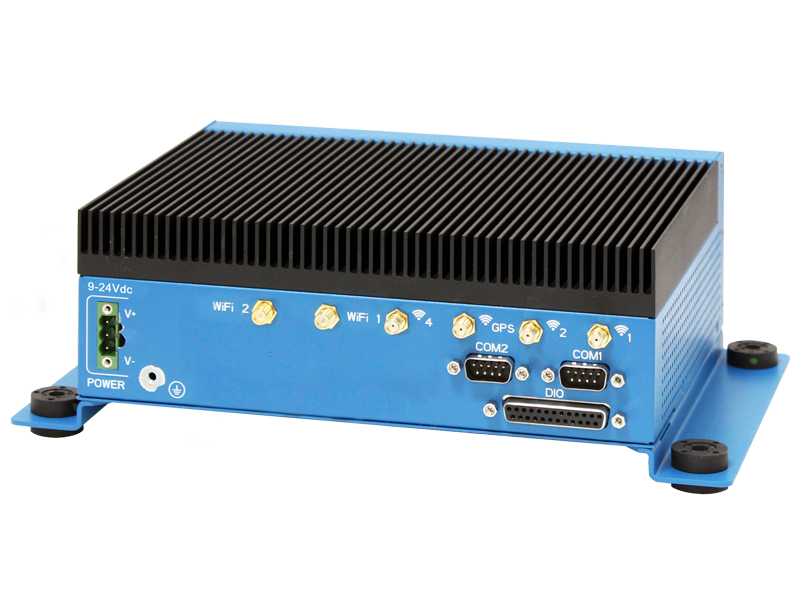

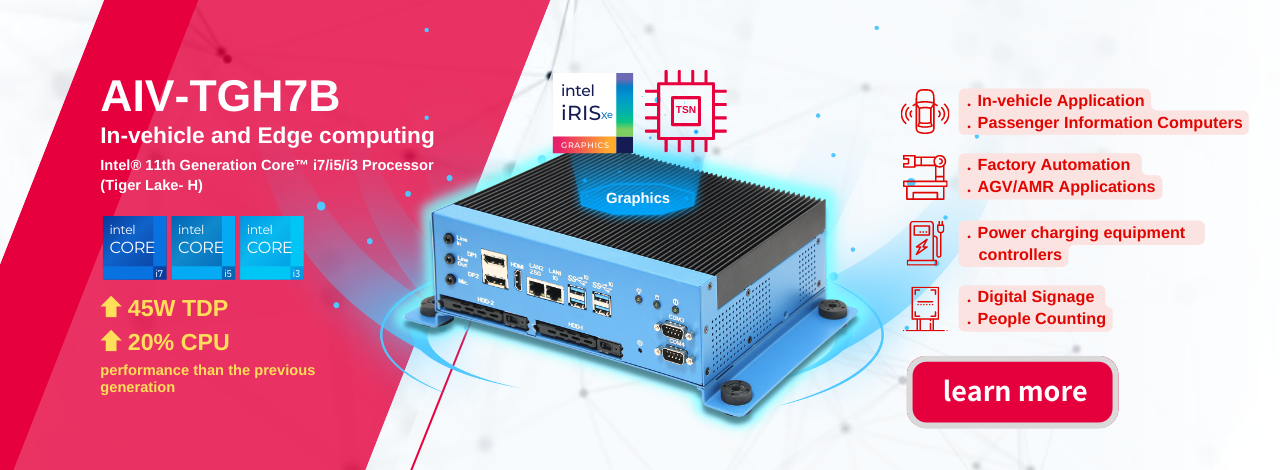

AIV-TGH7B1,AIV-TGH7B2,AIV-TGH7B3

11th Gen Intel® CoreTM i7/i5/i3 Processor(Tiger Lake) Fanless Computer, 9-24Vdc

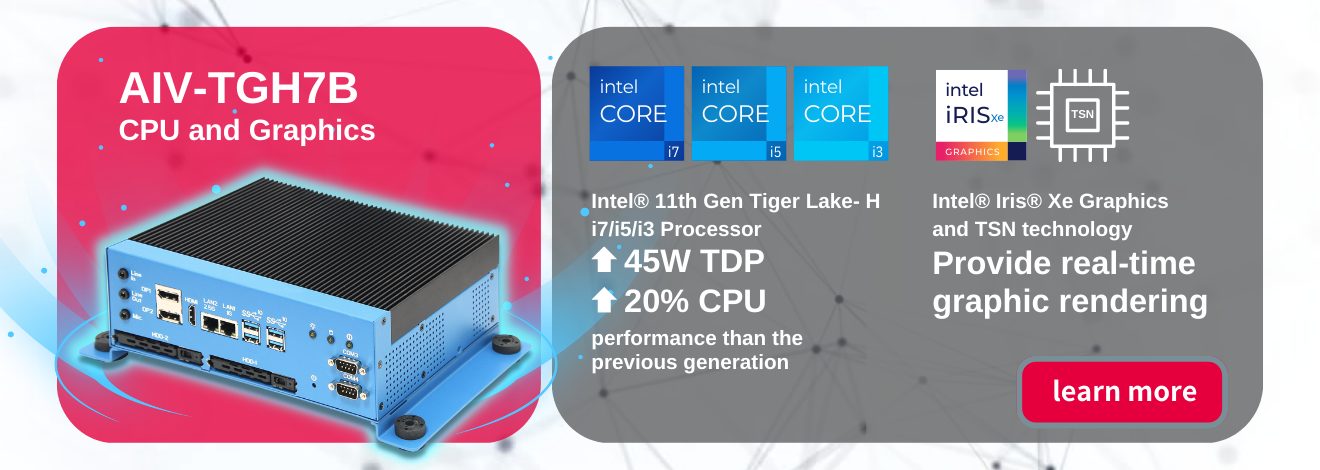

1. Intel® 11th Generation Core™ i7/i5/i3 Processor
2. Support 1 DDR4 3200 SODIMM, up to 32GB
3. Support 2.5GbE, USB 3.2 Gen2 x 4
4. Triple Display : HDMI 2.0b x 1 , DP++ 1.2a x 2
5. Two ront easy access 2.5” SATA III storage bay

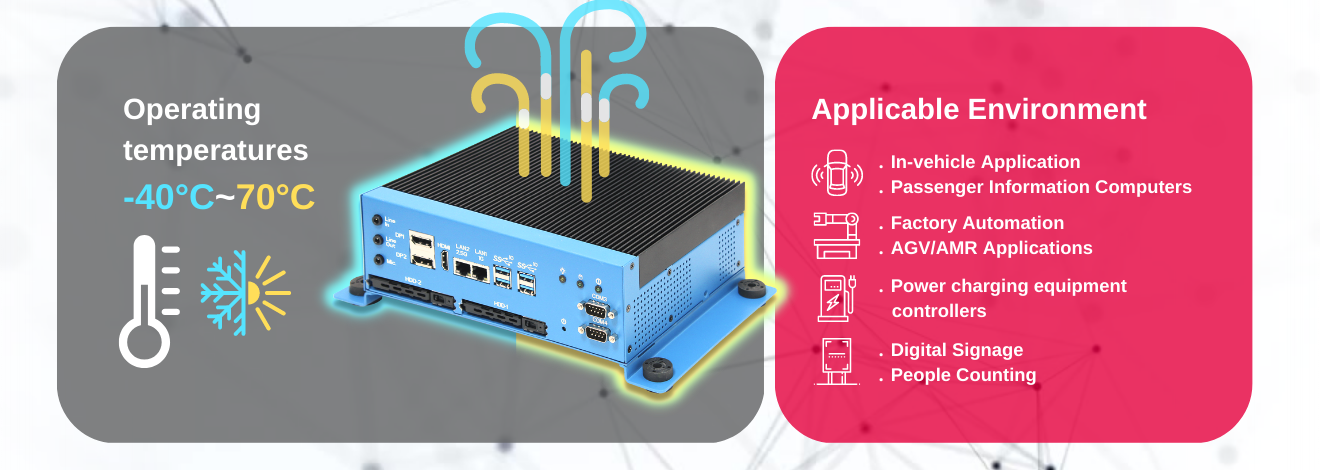

6. Wide Temperature design : -40~70C
7. Wide Voltage Power Input : 9-24Vdc
8. Fanless design





 System
 CPU  Intel® 11th Generation Core™ i7/i5/i3 Processor(Tiger Lake- H)
 i7-11850HE (8C/16T, 2.60GHz, up to 4.70GHz)
 i5-11500HE (6C/12T, 2.60GHz, up to 4.50GHz)
 i3-11100HE (4C/8T, 2.40GHz, up to 4.40GHz)
 Chipset  Intel® HM570E
 Memory  1 DDR4-3200 Memory supports up to 32GB (ECC)
  Video
 Graphic
 Controller
 Intel® Iris® X Graphics
 Video Interface  1 x HDMI , 2 x DP
 Storage
 SATA  2 x SATA III (6Gbps) support S/W RAID 0, 1
 Storage Device  2 Front-access 2.5" SSD/HDD Tray
 Max total current is 2A for dul SATA devices
 I/O
 LAN  LAN 1 : RJ45 Type Intel® I225 2.5GigE LAN
 LAN 2 : RJ45 Type Intel® I219 GigE LAN
 Serial  2 x DB9 Type RS-232/RS422/485
 2 x DB9 Type RS-232
 USB  4 x Type A USB 3.2 Gen2
 DIO  16 x DIO, DB25 Type connector
 Audio  1 x Mic-in, 1 Line-in, 1 Line-out
 LED  Power, HDD, Status
 Button  1 x Power Press Button
 Antenna Hole  6 x Antenna Holes
 Expansion
 Mini PCIe  1 x Half Size Mini PCIe slot
 M.2  1 x M.2 B Key(3052) (Default PCIe[x1]+USB3.0+USB2.0)
 M.2 1 x M.2 M Key(2280) (PCIe 4.0[x4])
 SIM Slot  1 Nano SIM Slot (Internal)
 Others
 TPM  Optional By Request
 Watchdog Timer  255 Levels
 Smart
 Management
 Wake on LAN, PXE supported
 HW Monitor  Monitoring temperature, voltages. Auto throttling control
 when CPU overheats.
 Software
 OS Support  Windows 10, Linux
 Power Requirement
 Power Input  9V to 24V, DC-in
 Power Interface  3-pin Terminal Block
 Mechanical & Environment
 Dimension  220mm(W) x 175mm(D) x 73mm(H) (8.66" x 6.89" x 2.87")
 Weight  TBD
 Mounting  Wallmount
 Operating
 Temperature
 -40°C to 70°C (-40°F to 158°F)
 Storage Temp  -40°C to 80°C (-40°F to 176°F)
 Humidity  5% to 90% Humidity, non-condensing
 Shock  IEC 60068-2-27
 SSD : 50G @ wallmount, Half-sine, 11ms
 Vibration  IEC 60068-2-64
 SSD : 5Grms, 5Hz to 500Hz, 3 Axis
 EMC  CE / FCC class A
 Packing List
 ● 1 x AIV-TGH7Bx
 ● 2 x Wall mount bracket
 ● 1 x 3-Pin Terminal block
 ● 1 x Screws Package
 ● 1 x M3x4L m.2 module screws set
 ● M.2 module bracket
 Order Information
 AIV-TGH7B1  AIV-TGH7B1, Intel i7-11850HE, 9-24Vdc
 AIV-TGH7B2  AIV-TGH7B2, Intel i5-11500HE, 9-24Vdc
 AIV-TGH7B3  AIV-TGH7B3, Intel i3-11100HE, 9-24Vdc
 Ordering Information
 DDR4 32G  Certified DDR4 32GB 3200MHz RAM
 DDR4 16G  Certified DDR4 16GB 3200MHz RAM
 DDR4 8G  Certified DDR4 8GB 3200MHz RAM
 DDR4 4G  Certified DDR4 4GB 3200MHz RAM
 5G Module  5G & GNSS Module with Dual Antenna
 4G Module  4G & GNSS Module with Dual Antenna
 WiFi & Bluetooth   Module  WiFi & Bluetooth Module with Dual Antenna

Specifications are subject to change without notice.
