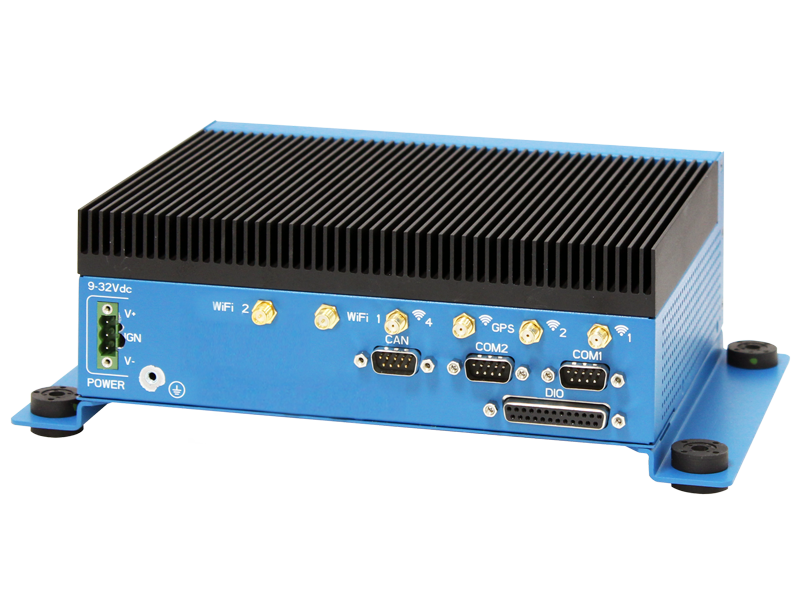

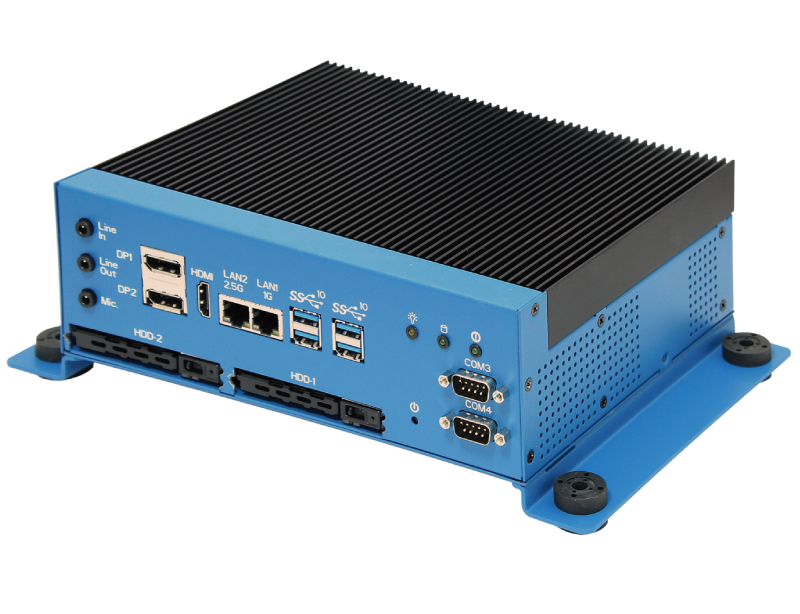

11th Gen Intel® CoreTM i7/i5/i3 Processor(Tiger Lake) Fanless In-Vehicle Computer AIV-TGH7EX

1. Intel® 11th Generation Core™ i7/i5/i3 Processor
2. Support 1 DDR4 3200 SODIMM, up to 32GB
3. Support 2.5GbE, USB 3.2 Gen2
4. CAN Bus provide
5. Two front easy access 2.5” SATA III storage bay
6. 9-32Vdc w/in-vehicle power ignition control
7. Fanless design
8. Wide Operating Temperature -40~70°C





 System
 CPU  Intel® 11th Generation Core™ i7/i5/i3 Processor(Tiger Lake- H)
 i7-11850HE (8C/16T, 2.60GHz, up to 4.70GHz)
 i5-11500HE (6C/12T, 2.60GHz, up to 4.50GHz)
 i3-11100HE (4C/8T, 2.40GHz, up to 4.40GHz
 Chipset  Intel® HM570E
 Memory  1 DDR4-3200 Memory supports up to 32GB (ECC)



 Video
 Graphic
 Controller
 Intel® Iris® X Graphics
 Video Interface  1 x HDMI , 2 x DP



 Storage
 SATA  2 x SATA III (6Gbps) support S/W RAID 0, 1
 Storage Device  2 x Front-access 2.5" SSD/HDD Tray



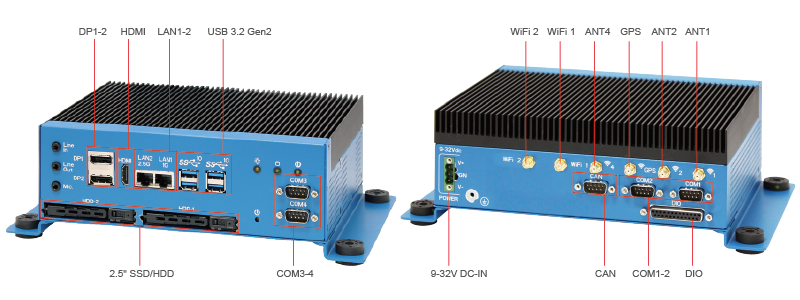

 I/O
 LAN  LAN 1 : RJ45 Type Intel® I225 2.5GigE LAN
 LAN 2 : RJ45 Type Intel® I219 GigE LAN
 Serial  2 x DB9 Type RS-232/RS422/485
 2 x DB9 Type RS-232
 USB  4 x Type A USB 3.2 Gen2
 DIO  16 x DIO, DB25 Type connector
 Audio  1 x Mic-in, 1 Line-in, 1 Line-out
 CAN BUS  1 x DB9 CANBu
 LED  Power, HDD, Status
 Button  1 x Power Press Button
 Antenna Hole  6 x Antenna Holes



 Expansion
 Mini PCIe  1 x Half Size Mini PCIe slot
 M.2  1 x M.2 B Key(3052)
 SIM Slot  1 Nano SIM Slot (Internal)



 Others
 TPM  Optional By Request
 Watchdog Timer  255 Levels
 Smart
 Management
 Wake on LAN, PXE supported
 HW Monitor  Monitoring temperature, voltages. Auto throttling control
 when CPU overheats.



 Software
 OS Support  Windows 10, Linux



 Power Requirement
 Power Input  9V to 32V, DC-in
Power Interface  3-pin Terminal Block : V+, IGN, V- With Power Ignition
 Control



 Mechanical & Environment

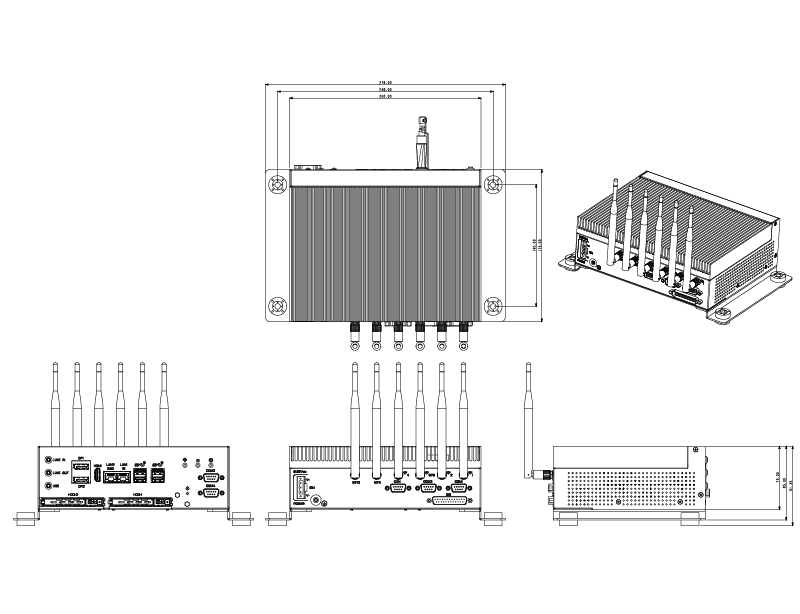

 Dimension 220mm(W) x 175mm(D) x 73mm(H) (8.66" x 6.89" x 2.87")
 Weight TBD
 Mounting Wallmount
 Operating
 Temperature
-40°C to 70°C (-40°F to 158°F)
 Storage Temp -40°C to 80°C (-40°F to 176°F)
 Humidity 5% to 90% Humidity, non-condensing
 Shock IEC 60068-2-27
SSD : 50G @ wallmount, Half-sine, 11ms
 Vibration IEC 60068-2-64
SSD : 5Grms, 5Hz to 500Hz, 3 Axis
 EMC CE / FCC class A/ E-Mark



 Packing List
 ● 1 x AIV-TGH7EX
 ● 2 x Wall mount bracket
 ● 1 x 3-Pin Terminal block
 ● 1 x Screws Package


Order Information
AIV-TGH7E7-A10 AIV-TGH7EX, Intel i7-11850HE, CANBus
AIV-TGH7E5-A10 AIV-TGH7EX, Intel i5-11500HE, CANBus
AIV-TGH7E3-A10 AIV-TGH7EX, Intel i3-11100HE, CANBus


 Ordering Information
DDR4 32G Certified DDR4 32GB 3200MHz RAM
DDR4 16G Certified DDR4 16GB 3200MHz RAM
DDR4 8G Certified DDR4 8GB 3200MHz RAM
DDR4 4G Certified DDR4 4GB 3200MHz RAM
5G Module 5G & GNSS Module with Dual Antenna
4G Module 4G & GNSS Module with Dual Antenna
WiFi & Bluetooth Module WiFi & Bluetooth Module with Dual Antenna
