Intel® Denverton Platform, Desktop Networking Appliance







1. Intel® Denverton C3000 Platform
2. 4/8 core SoC
3. 1 x SO-DIMM DDR4
4. 1 x 2.5" SSD Bay
5. Fanless Design(For AND-DNV3A2)







 System
 CPU  Intel® Atom® C3558/C3758 Processor (4/8 core)
 Chipset  Intel® Denverton SoC
 Memory  1 x SO-DIMM DDR4
 BIOS  AMI
 WatchDog Timer  Software programmable 1~255 sec.
 Video
 Video Interface  NA
 Ethernet
 Chipset  Intel® I211, I210IS
 Connector   6 x GbE Copper (RJ-45)
 2 x GbE Fiber (SFP)
 2 x 10GbE Fiber (SFP+)
Storage
 HDD Bay  1 x 2.5” SATA-III port
 EMMC  Optional on board eMMC 32GB or 64GB
 NVME  M.2 M key socket for 2242/2260/2280 NVME SSD (For A3)
 I/O
 Console port  1 x Serial console (RJ-45)
 USB port  2 x USB 3.2 Gen1
 Expansion  1 x M.2 Socket for optional WiFi module .
 1 x M.2 B key socket for 4G/5G module, support
 dual SIM sockets.
 Others
 Battery  Lithium Battery, 3V 220mAH (CR2032)
 Hardware
 Monitoring
 CPU Volt.
 CPU & SYS Temp.
 QAT & DPDK  Support QAT & DPDK
 Power Requirement
 Power Input  12V DC input
 40/60W AC Adapter
 Software
 OS Support  Linux Kernel 4.8 or above, (64-bit)
 Mechanical & Environment

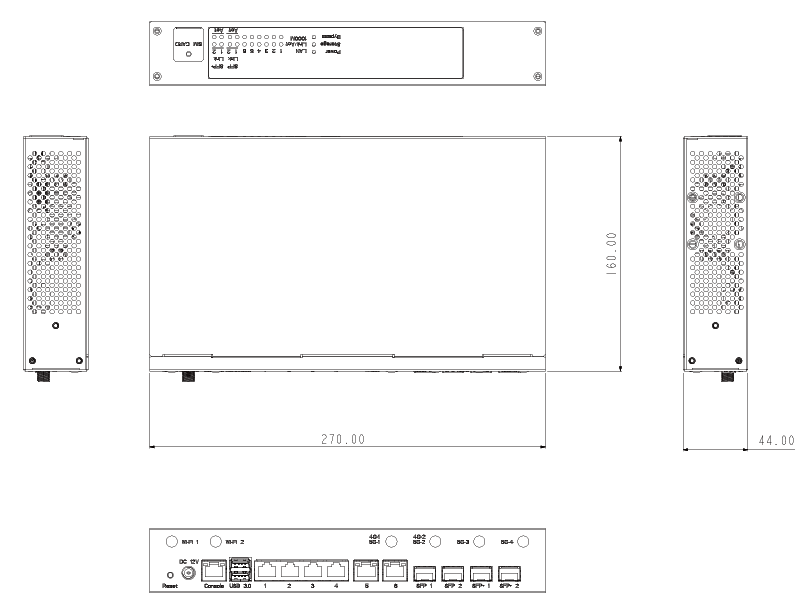

 Dimension  270 (W) x 44 (H) x 160 (D) mm
 Operating Temp.  0~ 40°C (32~104°F)
 Storage Temp.  -20~80°C (-4~176°F)
 Relative Humidity  0 to 90% @40°C, non-condensing
 Certifications  CE, FCC Class A, RoHS 2
 Packing List
 ● AND-DNV3A2/A3 system x 1
 ● SATA cable x 1
 ● USA / EU / JPN / UK / AS / NZS / SA / power cord x 1
 ● Box packing x 1
 ● Screw for bracket (HDD bracket)
 Ordering Information
 AND-DNV3A2  Desktop Networking Appliance
 Intel® Atom C3558 SoC
 6 x GbE Copper
 2 x SFP, 2 x SFP+
 40W AC Adapter
 AND-DNV3A3  Desktop Networking Appliance
 Intel Atom C3758 SoC
 6x GbE Copper
 2x SFP, 2x SFP+
 60W AC Adapter

Specifications are subject to change without notice.
