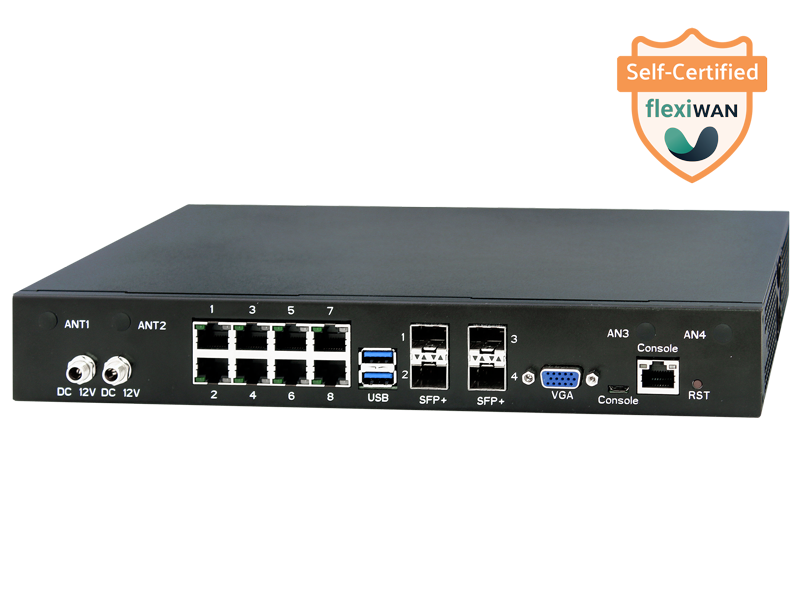

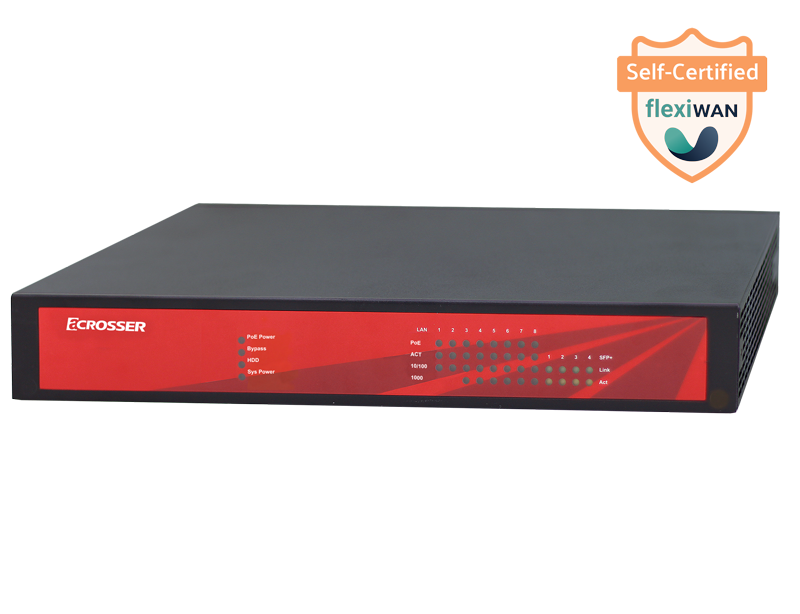

The AND-DNV3N3 offers a compact and unparalleled high-performance telecommunication experience. The optimized system design allows network systems to function in a smaller footprint and form factor. This outstanding network appliance equipped with Intel® Denverton® C3000 platform; can deliver exceptionally high performance. As excellent network appliances, AND-DNV3N3 series support Intel® Denverton C3000 platform, 2~8 core SoC options, 1~2* SO-Dimm DDR4, 1x2.5” SSD & 1x CFast, and dual DC-In for redundancy. Its strong networking ability can meet most of the enterprise-class customers’ needs. It is also a great alternative for budget-conscious buyers.

This latest AND-DNV3N3 is a cost-effective network security appliance that can offer stable performance with low power consumption; and is suitable in multiple security applications including network intrusion prevention, content filtering, data leak prevention, VPN, and unified threat management (UTM).

If you are interested in AND-DNV3N3, please contact our agents or via our online inquiry system: https://www.acrosser.com/en/Contact/Inquiry


Acrosser recommended flexiWAN on AND-DNV3N3, and AND-DNV3N3 is tested and certificated by flexiWAN.

 1. Intel® Denverton C3000 Platform
 2. 2~8 core SoC options
 3. 1/2 x SO-DIMM DDR4
 4. 1 x 2.5" SSD, & 1 x CFast
 5. smart cooling fan(C3758)
 6. Fanless Design (C3338, C3558)
 7. Dual DC-in for redundancy



 System

 CPU

 Intel® Atom® C3758 Processor (8 core)
 Intel® Atom® C3558 Processor (4 core)
 Intel® Atom® C3338 Processor (2 core)
 Chipset  Intel® Denverton SoC
 Memory  1 x SO-DIMM DDR4(C3338)
 2 x SO-DIMM DDR4(C3558,C3758)
 BIOS  AMI
 WatchDog Timer  Software programmable 0~255 sec.



 Video
 Video Interface  VGA



 Ethernet
 Chipset  Intel® I210, I211, X553
 Connector   8 x GbE Copper (RJ-45)
 2/4 x 10GbE Fiber (SFP+)for(C3558/C3758)
 6 x GbE PoE Copper (RJ-45)(optional))
 LAN bypass  One Pair



 Storage
 HDD Bay  1 x 2.5” SATA-III Drive bay
 CFast  1 x CFast socket
 M.2 NVME  1 x M.2 2280 socket (C3758 only)



 I/O
 Console Port  1 x Serial console (RJ-45), 1 x USB console (micro-USB)
 USB port  2 x USB 3.0
 Antenna port  4 x SMA for WLAN (IEEE 802.11a/b/g/n/ac)&4GLTE
 GPIO  8-bit GPIO (4-In, 4-Out), on-board pin header
 Expansion  2 x Mini PCIe Socket, one with SIM Socket



 Others
 Battery  Lithium Battery, 3V 220mAH (CR2032)
 Hardware
 Monitoring
 CPU Volt.
 CPU & SYS Temp.
 Security  TPM 2.0 (Infineon chipset)
 QAT & DPDK  Support QAT & DPDK



 Power Requirement
 Power Supply Unit  12V(40 or 60W),54V(150W)for PoE



 Software
 OS Support   Linux Kernel 4.8 or above, (64-bit)



 Mechanical & Environment

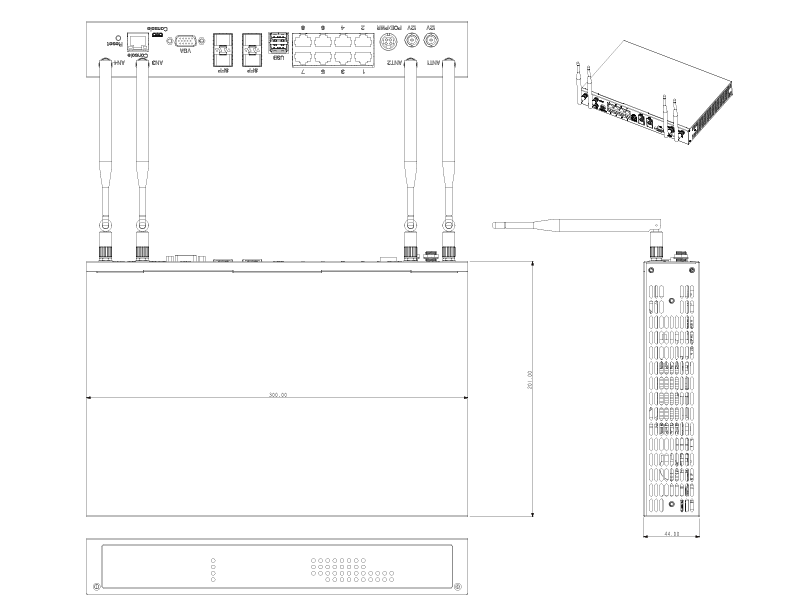

 Dimension  300 (W) x 44 (H) x 201 (D) mm
 Operating Temp.  0~ 40°C (32~104°F)
 Storage Temp.  -20~80°C (-4~176°F)
 Relative Humidity  0 to 90% @90°C, non-condensing
 Certifications  CE, FCC Class A, RoHS 2, cULus



 Model Name
AND-DNV3N3-02/04/08 Desktop Networking Appliance
Intel® Denverton-NS platform
8 x GbE Copper
2/4 x SFP+,Optional PoE AC Adapter



 Packing List
 ● 1 x AND-DNV3N3 series system x 1
 ● 1 x SATA cable x 1
 ● 1 x CD utility x 1
 ● 1 x Console cable (RJ-45 to DB9) x 1
 ● 1 x USA / EU / JPN / UK / AS / NZS / SA / India power cord x 1
 ● 1 x Box packing x 1
 ● 1 x Screw for bracket (for rack + HDD bracket) x 14



 Ordering Information
 AND-DNV3N3-02 Intel Atom® C3338(2-core) SoC, 8GbE Copper
(1-pair bypass), 2 USB 3.0, 1x2.5" SATAIII,1xCFast,
2xmPCle socket (for WLAN and 4G LTE),1 VGA
and 2x DC-In
 AND-DNV3N3-04 Intel Atom® C3558(4-core) SoC, 8GbE Copper
(1-pair bypass), 2xSFP+,2 USB 3.0, 1x2.5" SATAIII
,1xCFast, 2x mPCle socket (for WLAN and 4G LTE)
,1 VGA and 2x 12V DC-In
 AND-DNV3N3-04P Intel Atom® C3558(4-core) SoC, 8GbE Copper
(1-pair bypass & 6xPoE),2x SFP+, 2 USB 3.0,
1x2.5" SATAIII,1xCFast, 2x mPCle socket
(for WLAN and 4G LTE),1 VGA and 2x 12V DC-In
and 48V DC-In..
 AND-DNV3N3-08 Intel Atom® C3758(8-core) SoC, 8GbE Copper
(1-pair bypass), 4 SFP+,2 USB 3.0, 1 VGA,
1x2.5" SATAIII,1xCFast,1xM.2(for NVME SSD)
2x mPCle socket (for WLAN and 4G LTE),
1 VGA and 2x 12V DC-In

Specifications are subject to change without notice.
