| Description |
The NSA-50A1 Desktop Network Appliance is an entry-level CPE tailored for software companies, internet providers, and small businesses. Powered by the Intel Atom™ C3338R Processor, it integrates Intel QuickAssist Technology (QAT) for efficient encryption and compression, delivering reliable performance across LAN, firewall, and security gateway applications.
Secure and Reliable Processing
Intel QuickAssist Technology accelerates data encryption and compression, ensuring secure transmissions while maintaining system performance for other critical functions. Additionally, the TPM 2.0 chip provides robust hardware-level security, safeguarding sensitive operations.
Flexible Connectivity
Designed for versatility, the NSA-50A1 suits SMBs, home offices, cafes, or small hotels needing networks to support multiple devices. Its 4 x 2.5 GbE Ethernet ports with DPDK support enable direct memory access, low latency, and high throughput for demanding networking tasks. Wireless connectivity is also supported via:
1 x M.2 2230 E Key for Wi-Fi
1 x M.2 3042/3052 B Key for LTE/5G
Versatile Applications
From enhancing VPN performance for remote workers to powering edge computing or serving as a uCPE platform, the NSA-50A1 delivers reliable and consistent results across a range of applications.
| I/O Connectors |
 |
| Ask an Expert > |
|
   3.gif) |
| Features |
| • Intel® Atom® C3338R Processor • Support 1 x DDR4 ECC SODIMM • Support 4 x 2.5GbE • Support 1-pair Bypass • Optional 4G LTE, 5G, WiFi 6 • GPIO pin header • Smart Fan design |
| |
| System |
| CPU | Intel® Atom® C3338R, 4C4T, 2.20GHz |
| Chipset | Intel® SoC |
| Memory | 1 x DDR4 ECC SODIMM |
| Storage | 1 x 2.5” SATA Storage 1 x M.2 2242 B key |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec |
| Wireless | Support 4G LTE, 5G, WiFi 6 |
| Power Supply |
| Chipset | DC Jack, 12Vdc 40W Adapter |
| Power Consumption | TBD (with Fan) |
| MTBF (Hours) | -- |
| Environmental and Mechanical |
| Dimension | 215mm(W) x 143mm(D) x 45mm(H) |
| Weight | 1.2 kg |
| Mouting/Installation | Wall Mount |
| Operating Temperature | 32 °F ~ 104 °F (0 °C ~ 40 °C) |
| Storage Temperature | -4 °F ~ 176 °F (-20 °C ~ 80 °C) |
| Operating Humidity | 0% ~ 90% relative humidity, @ 40 °C |
| Certification |
| Regulations | CE, FCC |
| Interface |

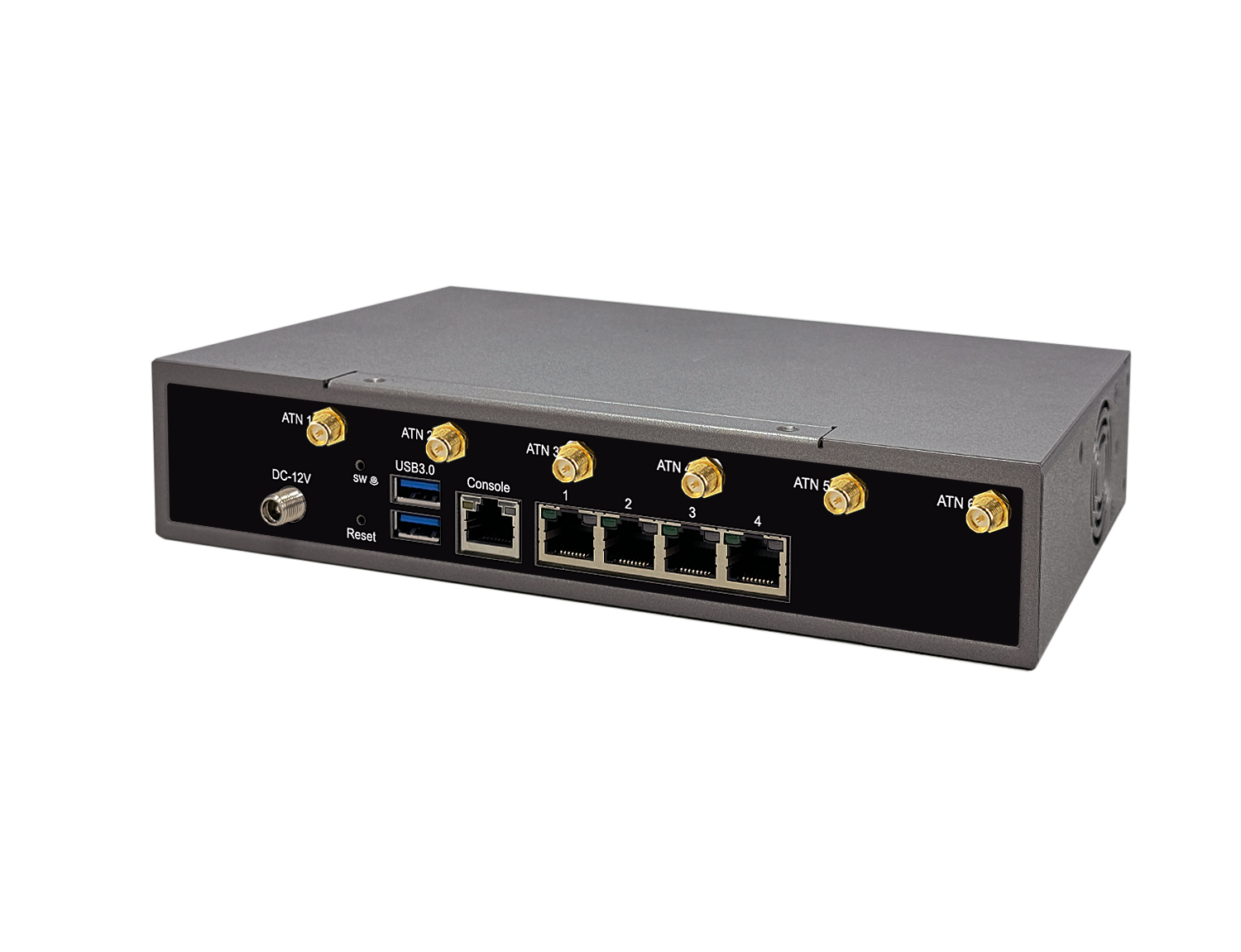

| I/O connector | 4 x 2.5 GbE RJ-45 2 x USB 3.0 1 x RJ45 Type Console 1 x DC-in DC Jack connectors(12V) 8 x Antenna holes Reset Button LED Indicators 1 x External Easy Access SIM Slots Dual DC in input connector ( for SKU option) |
| Expansion Slot | 1 x M.2 2230 E key (For Install WiFi Module) 1 x M.2 3042/3052 B key (For Install 4G/5G Module) Could Install SATA Storage Module) |
| Connector | 4x 2.5 GbE RJ-45 |
| LAN bypass | 1-pair LAN Bypass |
| OS support | Linux Kernel 5.15 LTS & above (64-bit) |
| Other Interface |
| TPM | Support TPM 2.0 |
| SW button | SW reset button |
| QAT & DPDK | Support QAT&DPDK |
| Other Interface | -- |
| Model Name |
| 2NSA50A100401E01 | Intel® Atom® C3000 Processor, 4 x 2.5GbE, Networking |
Specifications are subject to change without notice.
| |

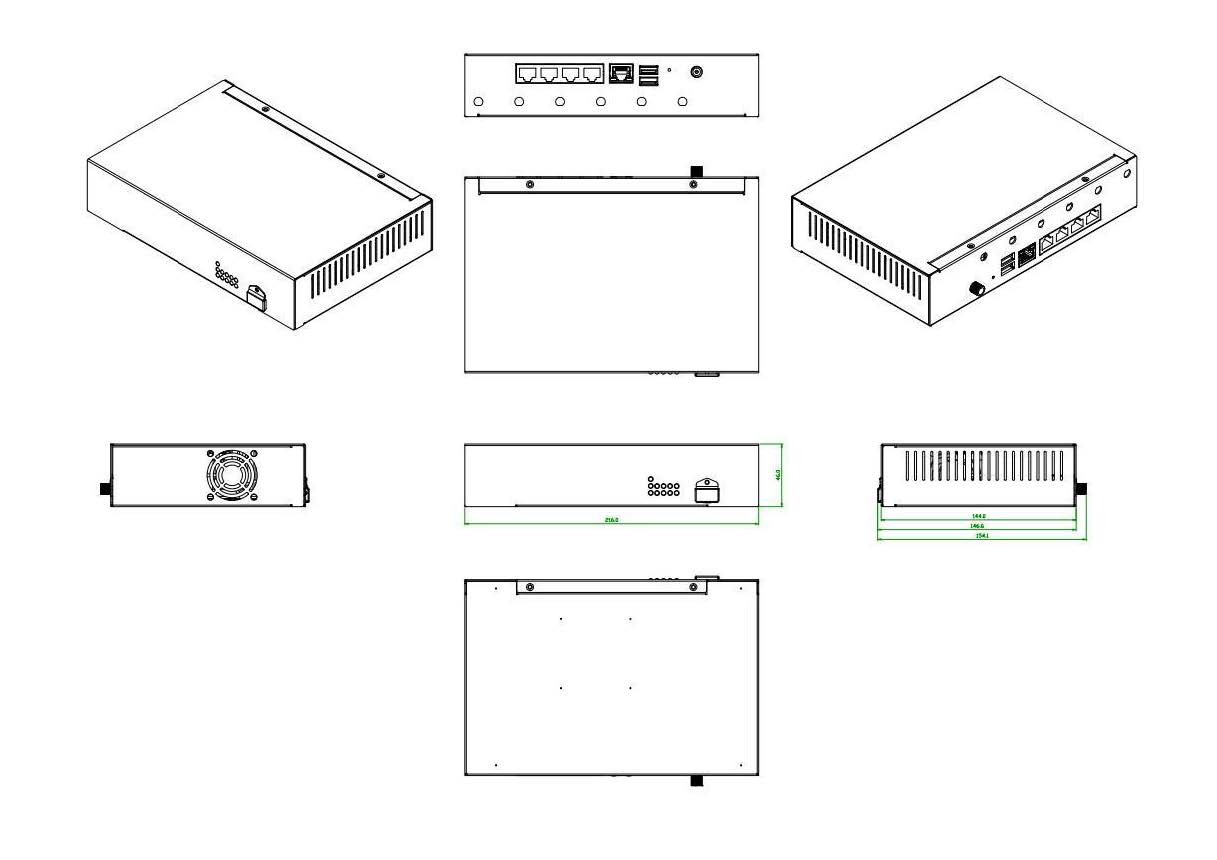

| Dimens |
1.jpg) |
| |
