| Description |
| The AAD-W480B is a 10th generation Intel® Core™ Xeon/i9/i7 processor based Autonomous Driving Controller and Autonomous Driving Servers designed for autonomous edge AI applications. The computer has a workstation-grade platform with a maximum TDP of 80W and supports 2 DDR4 3200 SODIMM memory modules, up to 64GB (Non-ECC). It also has 2 GigaLAN ports, 6 USB 3.2 Gen2 ports, and 2 PCIe x16 slots with a PCIe x8 signal, as well as 1 PCIe x4 expansion slot. The AAD-W480B is capable of supporting dual NVIDIA RTX 30 series graphics cards, each with a maximum power of 320W. The computer also has a CAN bus for communication, two front-accessible 2.5” SATA III storage bays, and a power input range of 9-50Vdc with in-vehicle power ignition control, with a maximum power input of 1,000W. |

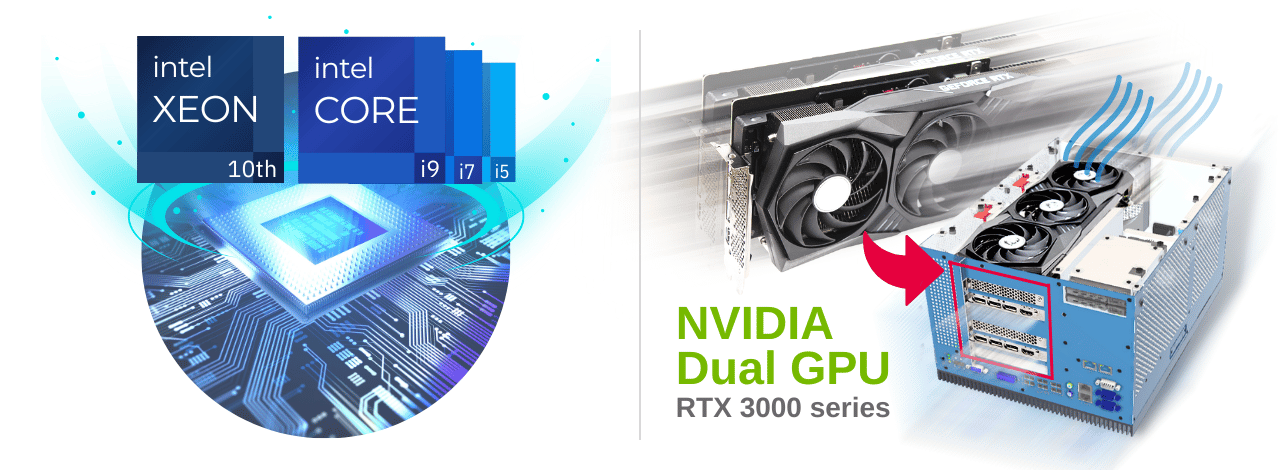

Intel® Xeon CPU |
Dual GPU |
|||
| •10th Comet lake, Could support 10-core 10th Gen Intel® Xeon CPU | • GPU support, Could Supports dual NVIDIA RTX 3000 series graphics cards (Max.320W/Each) | |||
 |
||||
| Acrosser Technology Co., Ltd. is pleased to announce the AAD-W480B Series, a dual GPU embedded controller powered by Intel W480 platform(Comet Lake-S) with a 10th Gen Intel® Xeon®/Core™ i9/i7/i5 Processor. With Intel workstation-grade processor computing and dual NVIDIA® GeForce® GeForce® 3000 series graphics cards computing ability, the AAD-W480B Series could provide extremely powerful AI computing performance compared to traditional single GPU card embedded systems for AI training, inference applications, vision inspection, and surveillance. Additionally, the AAD-W480B Series features an in-vehicle power ignition design with a range of 9V to 55V power input, making it an ideal product for autonomous cars, ADAS, AMR. |
||||
| Learn more > |

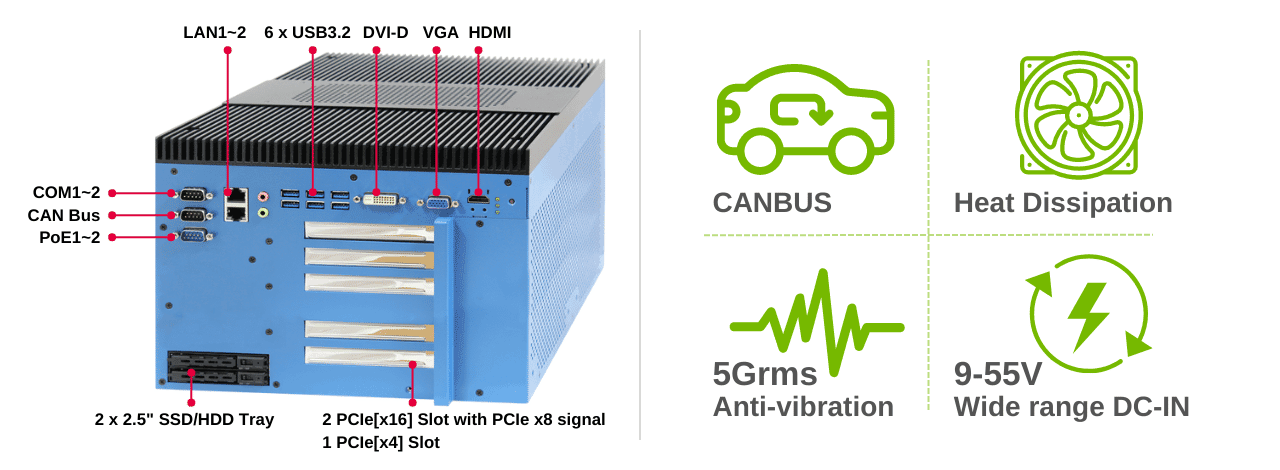

Rich I/O |
Automotive Design |
|||
| • USB 3.2 x 6, RS-485/422/232 x 4 : Could use to install radar, LiDAR Sensor • Support 2 PCIe x8, 1 PCIe x4 expansion slots |
• Providing CANBUS • Heat Dissipation • Anti-vibration Design • Wide Voltage Power Supply for Automotive Design - 9-55V Wide Voltage Range - Supports 500W for CPU + GPU - Power Ignition (supports system power-on delay function) |
|||
 |
||||
| Acrosser’s AAD-W480B series provides dual storage devices for data storage, backup, or data redundancy using Intel RAID software. It also provides one M.2 Key M Socket (2280) to install high-speed data transmitting NVMe SSD for use with the operating system. In addition, AAD-W480B Series provides 2 mini PCIe and 1 M.2 B key slots to install Wi-Fi/4G/LTE/5G/WiFi6 wireless network modules or expand 3rd party I/O ports.
With Acrosser’s superior RD design, our AAD-W480B can support Xeon grade CPU and two high-end 320W NVIDIA® graphics cards, offering tremendous AI computing for emerging GPU-accelerated edge computing. We also provide an ideal thermal solution for the system when installed in autonomous driving car, vision inspection and surveillance security applications." said Alan Chou, Head of the Product Planning Division. |
||||
| Ask an Expert > |
| Acrosser Academy |
   3.gif) |
| Features |
|
● Workstation-grade Platform : 10th Gen Intel® Xeon®/Core™ i9/i7 Processor |
| |
| System |
| CPU | Intel® 10th Gen. Xeon®/Core™ i9/i7 Processor, support max 80W TDP CPU, socket type, LGA1200 |
| Chipset | Intel® W480E |
| Memory | 2 x 260 PIN DDR4-3200 SODIMM supports up to 64GB (Up to 32GB per socket) |
| Video |
| Graphic Controller |
Intel® UHD Graphics 630 |
| Interface | 1 VGA, 1 DVI-D, 1 HDMI1.4b |
| Storage |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| M.2 | 1 M.2 Key M Socket (2280) NVMe SSD (Internal) |
| Storage Device | 2 Front-access 2.5" SSD/HDD Tray |
| I/O |
| LAN | LAN 1 : RJ45 Type Intel® I210IT GigE LAN LAN 2 : RJ45 Type Intel® I210IT GigE LAN |
| Serial | 4 DB9 Type RS-232/RS422/485 |
| USB | 6 Type A USB 3.2 Gen2 |
| DIO | 4DI,4DO, DB15 Type connector |
| Audio | 1 Mic-in, 1 Line-out |
| CAN BUS | 1 DB9 CANBus |
| LED | Power, HDD, Status |
| Button | 1 Power Press Button |
| Antenna Hole | 7 Antenna Holes |
| Expansion |
| Mini PCIe | 2 x Full Size Mini PCIe Slots |
| M.2 | 1 x M.2 B Key(3042) |
| SIM Slot | 1 SIM Slot (Internal) |
| PCIe Slot | 2 PCIe[x16] Slot with PCIe x8 signal , 1 PCIe[x4] Slot |
| Others |
| TPM | Optional By Request |
| Watchdog Timer | 255 Levels |
| Smart Management |
Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software |
| OS Support | Windows 10, Linux |
| Power Requirement |
| Power Input | 9V to 55V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, IGN, V- With Power Ignition Control |
| Mechanical & Environment |
| Dimension | TBD |
| Weight | TBD |
| Mounting | Wallmount |
| Operating Temperature |
35W TDP CPU : -30°C to 70°C 65W TDP CPU : -30°C to 50°C 80W TDP CPU : -30°C to 40°C with system fan When Install Graphics Card: -20°C to 45°C with system fan |
| Storage Temp | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 90% Humidity, non-condensing |
| Shock | IEC 60068-2-27 SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration | IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE / FCC class A/ E-Mark |
| Packing List |
| ● 1 x AAD-W480B |
| ● 2 x Wall mount bracket |
| ● 1 x Terminal block |
| ● 1 x Screws Package |
| ● 1 x GPU fixing kit |
| CPU List | ||||
| Series | CPU | GHz | TDP (W) | ECC RAM |
| Intel® Xeon® | W-1290TE | 4.5 | 35 | Yes |
| W-1270E | 4.8 | 80 | ||
| W-1270TE | 4.4 | 35 | ||
| W-1250E | 4.7 | 80 | ||
| W-1250TE | 3.8 | 35 | ||
| Intel® Core™ | 9-10900E | 4.7 | 65 | NA |
| i9-10900TE | 4.5 | 35 | ||
| i7-10700E | 4.5 | 65 | ||
| i7-10700TE | 4.4 | 35 | ||
| Order Information |
| AAD-W480B1-000 | AAD-W480B1, Socket Type CPU Platform, 3 PCIe, CANBus |
| AAD-W480B2-000 | AAD-W480B2, Socket Type CPU Platform, 3 PCIe, CANBus, With System Fan |
| Optional Accessory |
| DDR4 32G | Certified DDR4 32GB 3200MHz RAM(Non-ECC) |
| DDR4 16G | Certified DDR4 16GB 3200MHz RAM(Non-ECC) |
| DDR4 8G | Certified DDR4 8GB 3200MHz RAM(Non-ECC) |
| DDR4 4G | Certified DDR4 4GB 3200MHz RAM(Non-ECC) |
| 5G Module | 5G & GNSS Module with Dual Antenna |
| 4G Module | 4G & GNSS Module with Dual Antenna |
| WiFi & Bluetooth Module | WiFi & Bluetooth Module with Dual Antenna |
*Please adopt wide operation temperature RAM, SSD, HDD to get better and stable system performance.
*If customer want to install CPU TDP up to 80W or high level GPU card, we will suggest to choose system sku with system fan version to get better therma l solution and system performance.
Specifications are subject to change without notice.
| |
