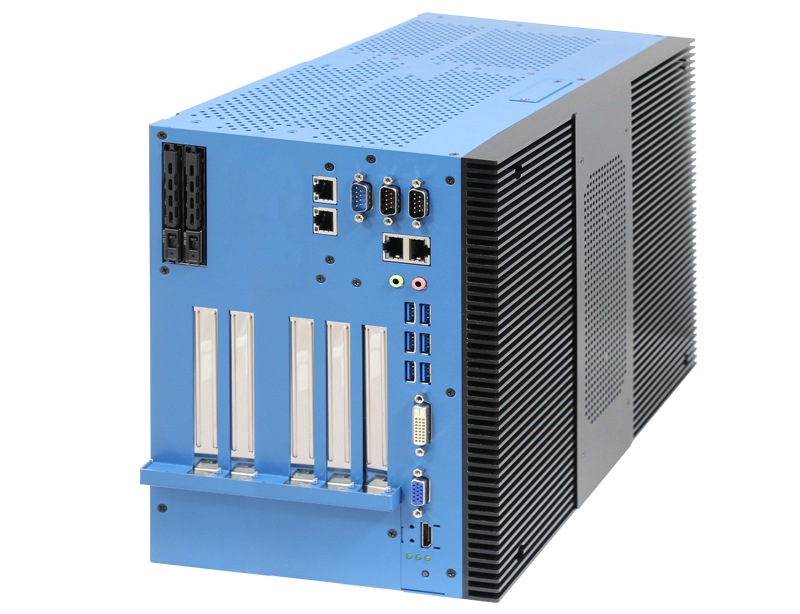

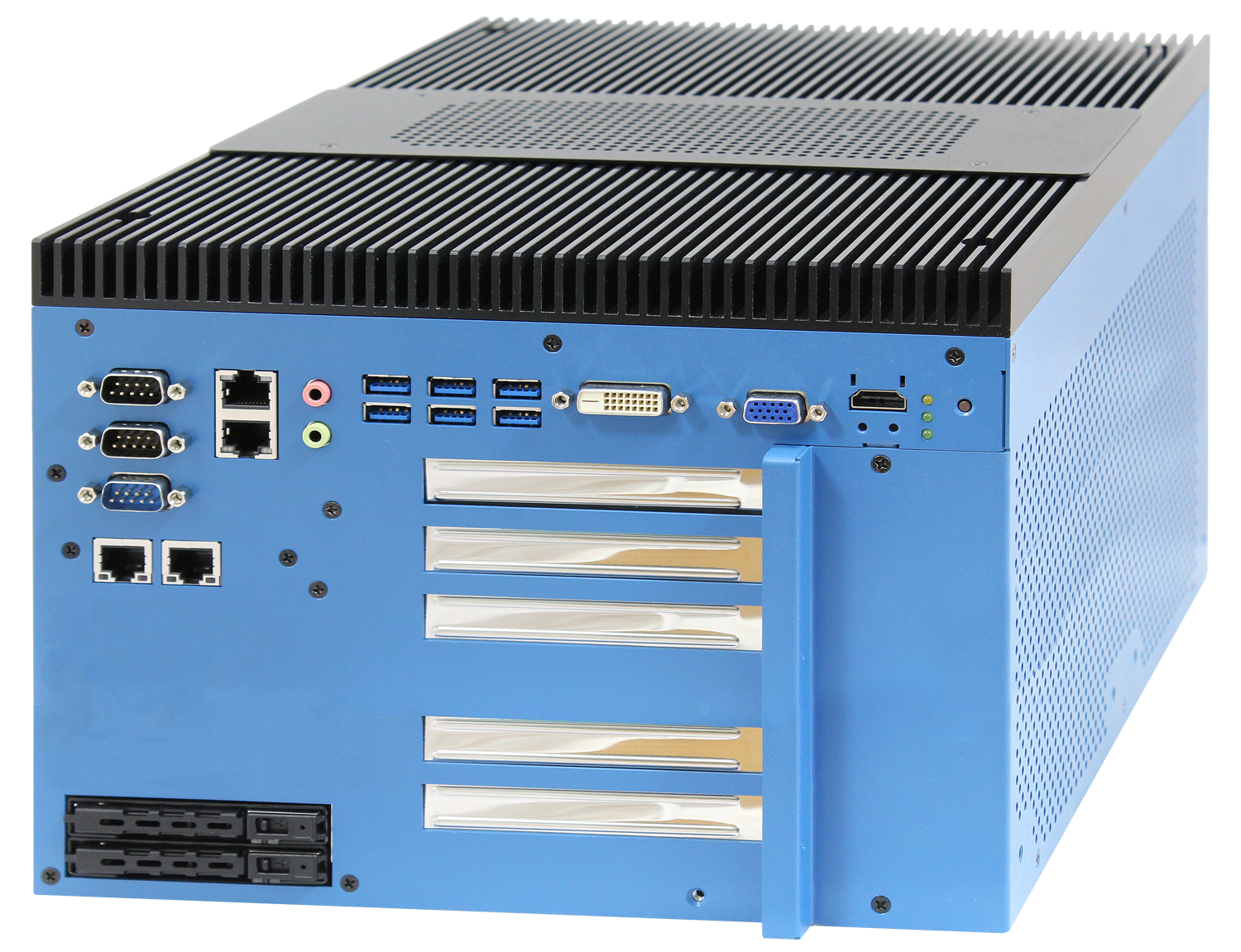

The AAD-W480B1-P is a 10th generation Intel® Core™ Xeon/i9/i7 processor based Autonomous Driving Controller and Autonomous Driving Servers computer that is ideal for surveillance applications. It features a workstation-grade platform with a maximum of 80W TDP CPU and supports up to 64GB of DDR4 3200 SODIMM (Non-ECC) memory. The computer has two PCIe x16 slots with PCIe x8 signal, one PCIe x4 expansion slot, and can support one NVIDIA RTX 30 series graphics card with a maximum power of 320W. The device also features a CAN bus for communication, two front easy access 2.5” SATA III storage bays, and 9-50Vdc power input with in-vehicle power ignition control, with a maximum power input of 1,000W. Additionally, the AAD-W480B1-P has two isolated independent PSE ports for dual PoE.
 I/O Connectors
 Acrosser Academy
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

● Workstation-grade Platform : 10th Gen Intel® Xeon®/Core™ i9/i7 Processor
   (Comet Lake Socket), supports max 80W TDP CPU
● Support 2 DDR4 3200 SODIMM, up to 64GB (Non-ECC)
● Support 2 PCIe x16 With PCIe x8 Signal, 1 PCIe x4 Expansion Slots
● Could Spports 2 NVIDIA RTX 30 Series Graphics Cards (Max.320W Each card)
● CAN Bus Provide, , 2 Isolated Independent PSE Ports
● Two Front Easy Access 2.5” SATA III Storage Bay
● 9-50Vdc Power Input w/in-vehicle Power Ignition Control, up to 1,000W
Power Input


Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 CPU  Intel® 10th Gen. Xeon®/Core™ i9/i7 Processor, support max 80W TDP CPU, socket type, LGA1200
 Chipset  Intel® W480E
 Memory  2 x 260 PIN DDR4-3200 SODIMM supports up to 64GB
 (Up to 32GB per socket)
 Intel® UHD Graphics 630
 Interface  1 VGA, 1 DVI-D, 1 HDMI1.4b
 SATA   2 SATA III (6Gbps) support S/W RAID 0, 1
 M.2  1 M.2 Key M Socket (2280) NVMe SSD (Internal)
 Storage Device  2 Front-access 2.5" SSD/HDD Tray
 LAN  LAN 1 : RJ45 Type Intel® I210IT GigE LAN
 LAN 2 : RJ45 Type Intel® I210IT GigE LAN
 Serial  4 DB9 Type RS-232/RS422/485
 USB  6 Type A USB 3.2 Gen2
 DIO  4DI,4DO, DB15 Type connector
 Audio  1 Mic-in, 1 Line-out
 PoE  2 RJ45 Type PoE ports, Complies with IEEE 802.3af,up to 15.4W at 48V per PoE port-Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
 Button  1 Power Press Button
 Antenna Hole  7 Antenna Holes
 Mini PCIe  2 x Full Size Mini PCIe Slots
 M.2  1 x M.2 B Key(3042)
 SIM Slot  1 SIM Slot (Internal)
 PCIe Slot  2 PCIe[x16] Slot with PCIe x8 signal , 1 PCIe[x4] Slot
 TPM    Optional By Request
 Watchdog Timer  255 Levels
 Wake on LAN, PXE supported
 HW Monitor  Monitoring temperature, voltages. Auto throttling control
 when CPU overheats.
 OS Support  Windows 10, Linux
 Power Requirement
 Power Input  9V to 55V, DC-in
 Power Interface  3-pin Terminal Block : V+, IGN, V- With Power Ignition
 Mechanical & Environment
 Dimension  TBD
 Weight  TBD
 Mounting  Wallmount
 35W TDP CPU : -30°C to 70°C
 65W TDP CPU : -30°C to 50°C
 80W TDP CPU : -30°C to 40°C with system fan
 When Install Graphics Card: -20°C to 45°C with system fan
 Storage Temp  -40°C to 85°C (-40°F to 185°F)
 Humidity  5% to 90% Humidity, non-condensing
 Shock  IEC 60068-2-27
 SSD : 50G @ wallmount, Half-sine, 11ms
 Vibration  IEC 60068-2-64
 SSD : 5Grms, 5Hz to 500Hz, 3 Axis
 EMC  CE / FCC class A/ E-Mark
 Packing List
 ● 1 x AAD-W480B1/2-P
 ● 2 x Wall mount bracket
 ● 1 x Terminal block
 ● 1 x Screws Package
 ● 1 x GPU fixing kit
 CPU List
 Series  CPU  GHz  TDP (W)  ECC RAM
 Intel® Xeon®  W-1290TE  4.5  35   Yes
 W-1270E  4.8  80
 W-1270TE  4.4  35
 W-1250E  4.7  80
 W-1250TE  3.8  35
 Intel® Core™  9-10900E  4.7  65   NA
 i9-10900TE  4.5  35
 i7-10700E  4.5  65
 i7-10700TE  4.4  35
 Order Information
 AAD-W480B1-P20  AAD-W480B1-P, Socket Type CPU Platform, 3 PCIe, CANBus, PoE
 AAD-W480B2-P20  AAD-W480B2-P, Socket Type CPU Platform, 3 PCIe, CANBus, With System Fan
 Optional Accessory
 DDR4 32G  Certified DDR4 32GB 3200MHz RAM(Non-ECC)
 DDR4 16G  Certified DDR4 16GB 3200MHz RAM(Non-ECC)
 DDR4 8G  Certified DDR4 8GB 3200MHz RAM(Non-ECC)
 DDR4 4G  Certified DDR4 4GB 3200MHz RAM(Non-ECC)
 5G Module  5G & GNSS Module with Dual Antenna
 4G Module  4G & GNSS Module with Dual Antenna
 WiFi & Bluetooth   Module  WiFi & Bluetooth Module with Dual Antenna

*Please adopt wide operation temperature RAM, SSD, HDD to get better and stable system performance.
*If customer want to install CPU TDP up to 80W or high level GPU card, we will suggest to choose system sku with system fan version to get better therma l solution and system performance.

Specifications are subject to change without notice.
