Description

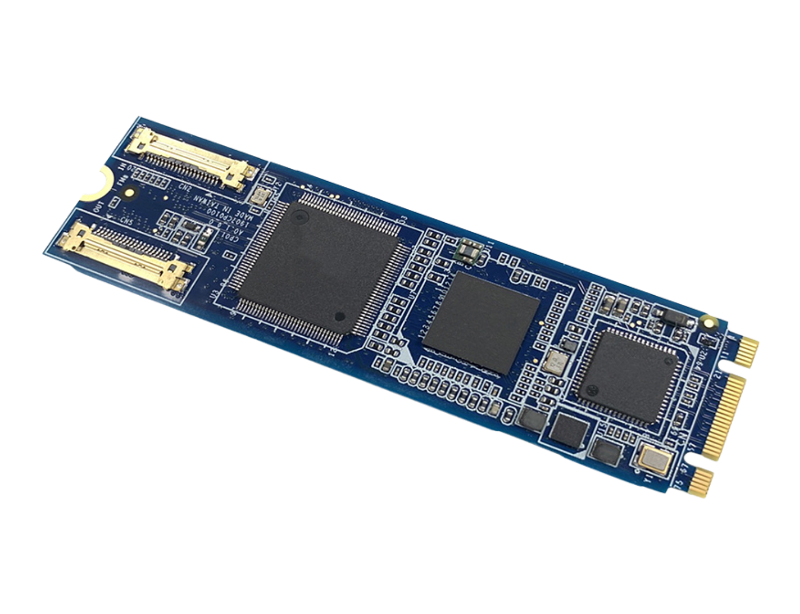

The EVC-H411-2280-P0 is a professional video capture device with a standard
M.2 2280 form factor. It features Scaler/De-interlace/Frame rate conversion, HDMI 2.0 loop-out, and HDR10 to SDR conversion. It supports up to 4K2KP60 resolution and allows users to capture Ultra HD (4K2KP30) video with realistic color rendition. The device utilizes large-volume image buffer technology to prevent from video tearing and ensures high sharpness, rich details, and minimal color edges in captured videos.
 I/O Connectors
  Ask an Expert  >





 Acrosser Academy

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook



 Features
• Supports (RGB/YUY2/NV12) video capture resolution up to 4K2KP30
• Supports HDCP 1.4 & HDCP 2.2
• Supports 1 channel HDMI input up to 4K2KP60
• Supports Hardware 3D de-interlace & scaler & Frame rate converter
• Supports HDR to SDR conversion
• Supports playing 4K HDR on HDMI out while streaming perfect 4K2KP30 with SDR colors for capture.
• Recording Video Format: Software Compression
• Works on multiple operating system platforms (Windows 7/8.1/ 10/11, Mac and Linux OS)
• Low Latency uncompressed video preview
• Compliance with PCIe gen 2 x 2 or above
• Support 4K2KP60 loop out (optional)
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 Technical
 Input Video Resolution (max)  3840x2160P60
 Loop Out Video Resolution (max)  3840x2160P60
Output Bandwidth  PCIe gen 2 x 2 or above
Capture Video Resolution (max)  3840x2160P30
Audio Input  HDMI Embedded Audio PCM
Recording Mode  Software Compression
Video Format  RGB/YUY2/NV12/MPEG
Audio Sampling Rate  32/44.1/48KHz
Color Depth  10 bit
Safety Certification  CE/FCC
 Resolution table
 HDMI In
 3840x2160P60/30, 2560x1440P144/60, 1920x1080P240/120/60,
1920x1080i60/50, 720P60/50, 480P, 576P, 480i, 576i, 640x480P60
 Capure  3840x2160P30, 2560x1440P60, 1920x1080P60/50/30, 720P60/50, 640x480P60
 RAW Formats  YUV422 8 bits: YUY2
 YUV420 8 bits: NV12
 RGB444 8 bits: RGB24
 YUV420 8/10 bits: P010
 Board Dimension
 Form Factor  M.2 Type 2280 B+M
 PCB Size  22mm x 80mm
 PCB Thickness  0.8 mm +/- 0.08mm
 Thermal Specification
 Operating Temp.  32°F ~ 104°F (0°C ~ 40°C)
 Storage Temp.  14°F ~ 176°F (-10°C ~ 80°C)
 Power consumption
 Working Mode  4.3W
 Sleep Mode  1.93W

 Specifications are subject to change without notice.
