Description |

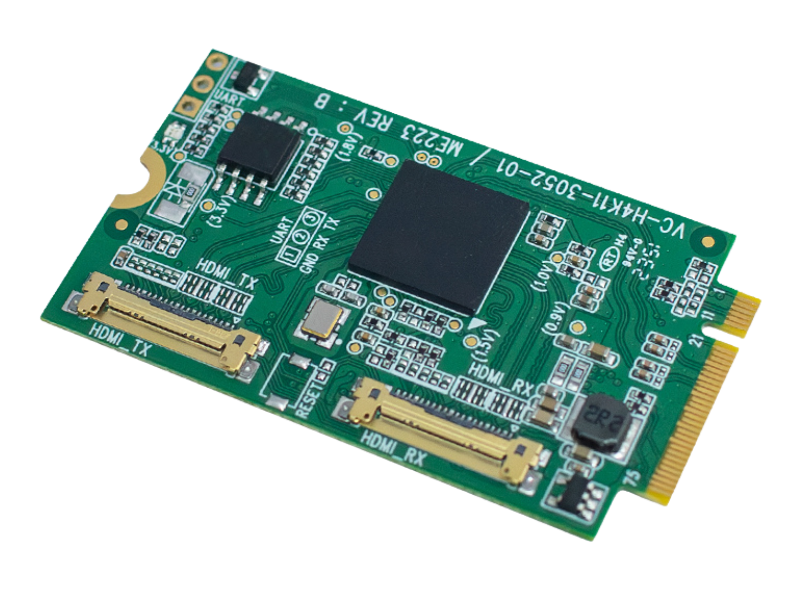

The EVC-H411-3052-U1 is a professional video capture device with a stan- dard M.2 3052 form factor. It features Scaler/De-interlace/Frame rate conver- sion, HDMI 2.0 loop-out, and HDR10 to SDR conversion. It supports up to 4K2KP60 resolution and allows users to capture Ultra HD (4K2KP30) RAW data or (4K2KP60) MJPEG data with realistic color rendition. The device utilizes large-volume image buffer technology to prevent from video tearing and ensures high sharpness, rich details, and minimal color edges in captured videos.![]() |
I/O Connectors |
![]() |
Ask an Expert > |
|
Acrosser Academy |
![]() ![]() ![]() ![]() |
Features |
• M.2 3052 B key USB 3.1 gen 1 HDMI 2.0 capture card • Support 1 channel HDMI2.0 input and l channel HDMI 2.0 passthrough • Supports Hardware 3D de-interlace & scaler & Frame rate converter • Supports HDR to SDR conversion • Support for RGB , YUY2 , NV12 , P010 color sampling • Support for 10 bit color depth • Works on multiple operating system platforms (Windows 7/8.1/ 10/11, Mac and Linux OS) • Support capture output image resolutions up to 3840x2160p30 SDR RAW or 1920x1080p60 HDR RAW • Support UVC/UAC • Support 4K2KP60 loop out (optional) • Support capture output image resolutions up to 3840x2160p60 MJPEG |
![]() ![]() ![]() ![]() |
Technical |
Input Video Resolution (max) | 3840x2160P60 |
Loop Out Video Resolution (max) | 3840x2160P60 |
Output Bandwidth | USB 3.0 |
Capture Video Resolution (max) | 3840x2160P60 (MJPEG) or 3840x2160P30 (NV12) |
Audio Input | HDMI Embedded Audio PCM |
Recording Mode | Software or Hardware Compression |
Video Format | RGB/YUY2/NV12/MPEG |
Audio Sampling Rate | 32/44.1/48KHz |
Color Depth | 10 bit |
Safety Certification | CE/FCC |
Resolution table |
SDI In |
3840x2160P60/30, 2560x1440P144/60, 1920x1080P240/120/60, 1920x1080i60/50, 720P60/50, 480P, 576P, 480i, 576i, 640x480P60 |
Capure | 3840x2160P60/30, 2560x1440P60/59.94/50/30/29.97/25, 2560x1080P60 1920x1080P120/60/59.94/50/30/29.97/25, 1280x720P60,720x480P60 640x480P60 |
RAW Formats | YUV422 8 bits: YUY2 YUV420 8 bits: NV12,I420 RGB444 8 bits: RGB24 YUV420 8/10 bits: P010 |
Board Dimension |
Form Factor | M.2 Type 3052 B |
PCB Size | 30mm x 52mm |
PCB Thickness | 0.8 mm +/- 0.08mm |
Thermal Specification |
Operating Temp. | 32°F ~ 104°F (0°C ~ 40°C) |
Storage Temp. | 14°F ~ 176°F (-10°C ~ 80°C) |
Power consumption |
Working Mode | 2.36W |
Specifications are subject to change without notice.
![]() ![]() ![]() ![]() |
