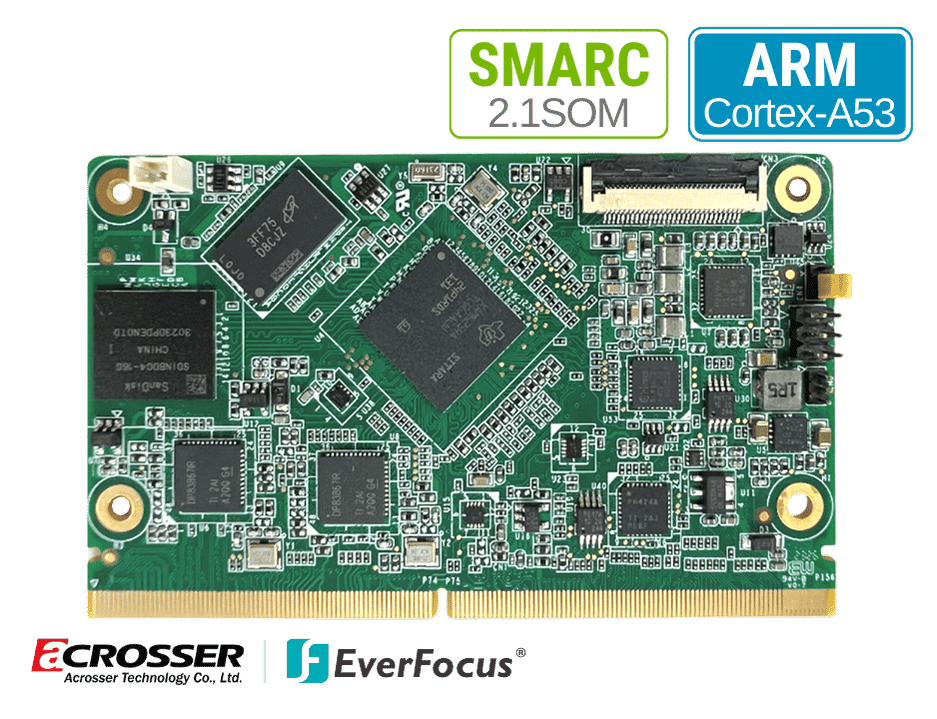

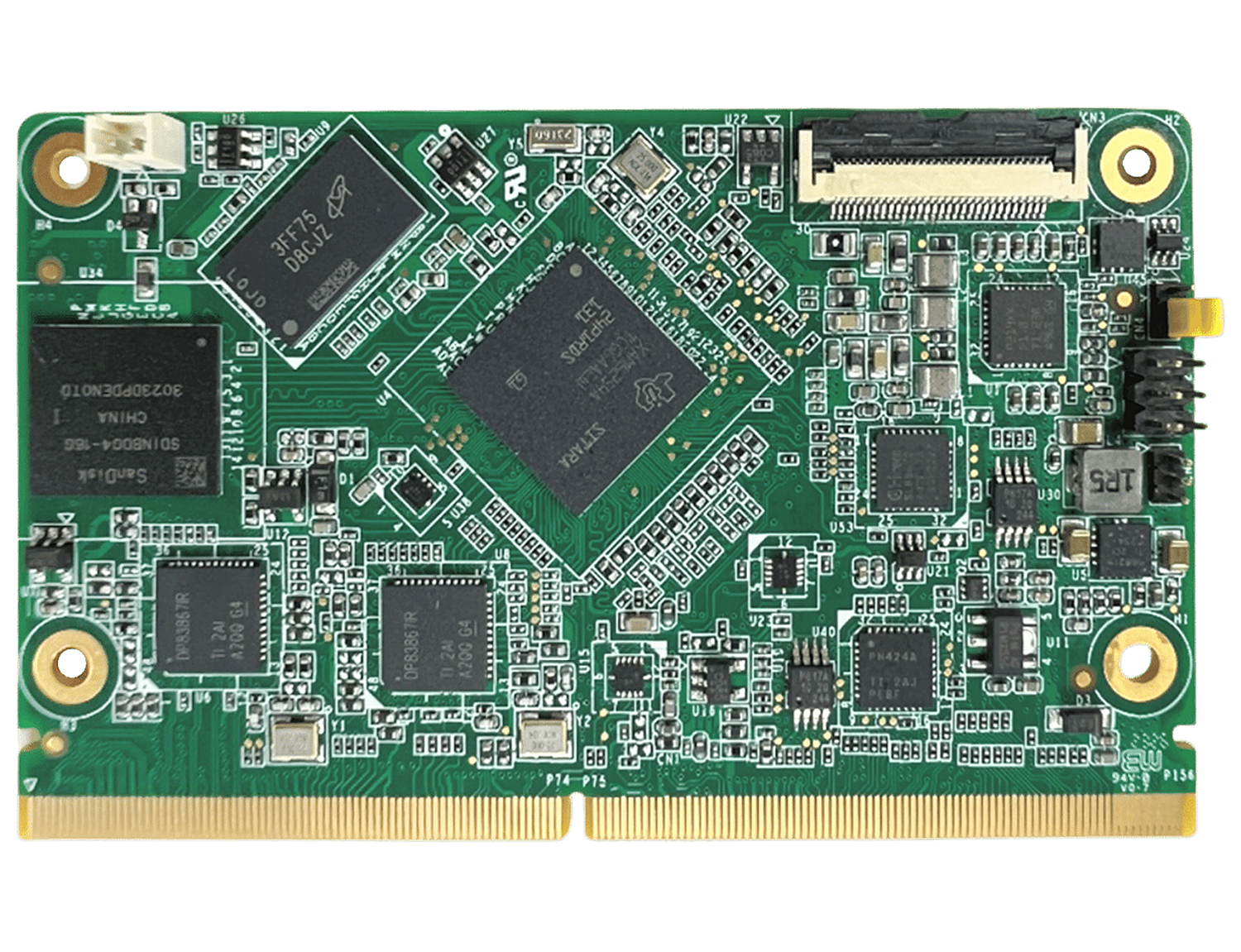

The ACM-AM62E is a powerful and compact SMARC 2.1 System on Module (SOM) with the TI AM625 SoC. With up to 1.4GHz quad-core ARM Cortex-A53 processor, this SOM delivers high-performance computing for a wide range of applications. Measuring at a short size of 82 x 50mm and featuring an MXM3 connector, the ACM-AM62E is designed to fit into space-constrained environments without compromising performance. It supports up to 2GB of LPDDR4 memory and 16GB of eMMC storage, providing ample space for data storage and processing. The ACM-AM62E also features double display support with HDMI 1.4a and LVDS interfaces, enabling versatile display options. It operates in an industrial temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments. The ACM-AM62E supports Android and Linux operating systems, making it easy to integrate into existing systems. Overall, the ACM-AM62E is a feature-rich and reliable SOM that can meet the demands of various industrial applications.



 I/O Connectors

 Acrosser Academy


Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

● Up to 1.4GHz Quad-core ARM Cortex-A53
● Short-sized SMARC (82 x 50mm) with MXM3 connector
● Up to 2GB LPDDR4, 16GB eMMC
● Double display: HDMI 1.4a, LVDS
● Industrial operating temperature: -40°C ~ 85°C
● Android and Linux support

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 Form Factor  SMARC (82 x 50 mm) with MXM3 connector
 Processor  AM625 Quad-Core CPU:
 Storage  16GB eMMC
 Network  Ethernet 2-port 10/100/1000
 Display  1 x HDMI 1.4a 1080P@60
 1 x 4 Lane LVDS
 Video input  MIPI CSI 1.3 + MIPI D-PHY 1.2 4 Lane
 Serial interfaces  2 x 2-Wire + 2 x 4-Wire
 USB  2 x USB 2.0
 PCIe  No
 Audio  No
 Power supply  5V
 Environmental  Operating temperature: -20°C ~ 85°C
 Dimensions  82 x 50 mm
 Ordering Information
 ACM-AM62E1  SOM, TI AM625, 1.4GHz, 2G RAM, 16GB eMMC
 Block Diagram

 Specifications are subject to change without notice.
