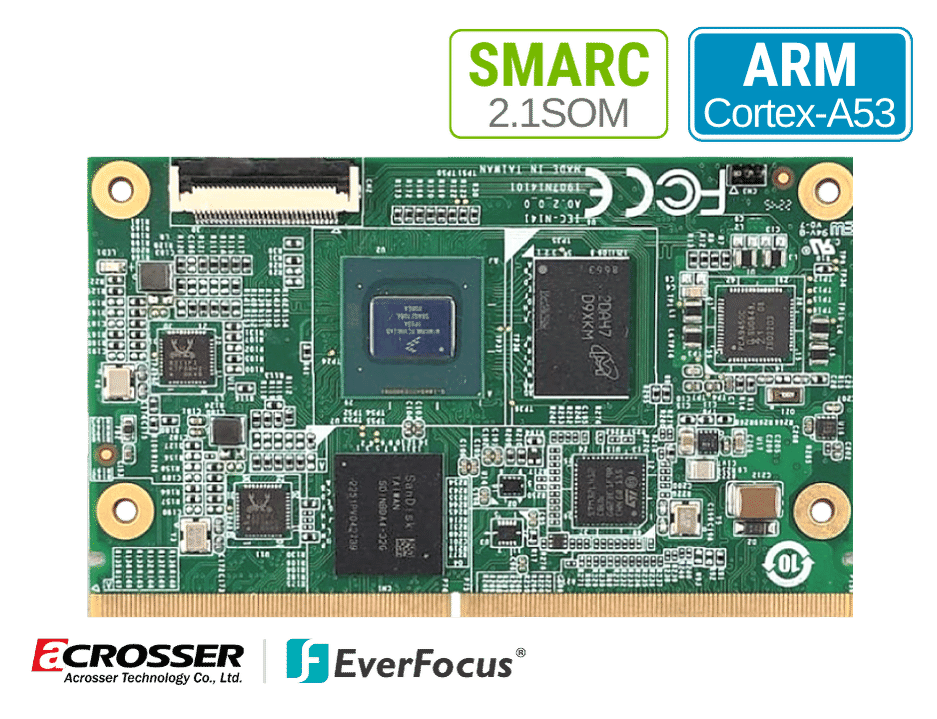

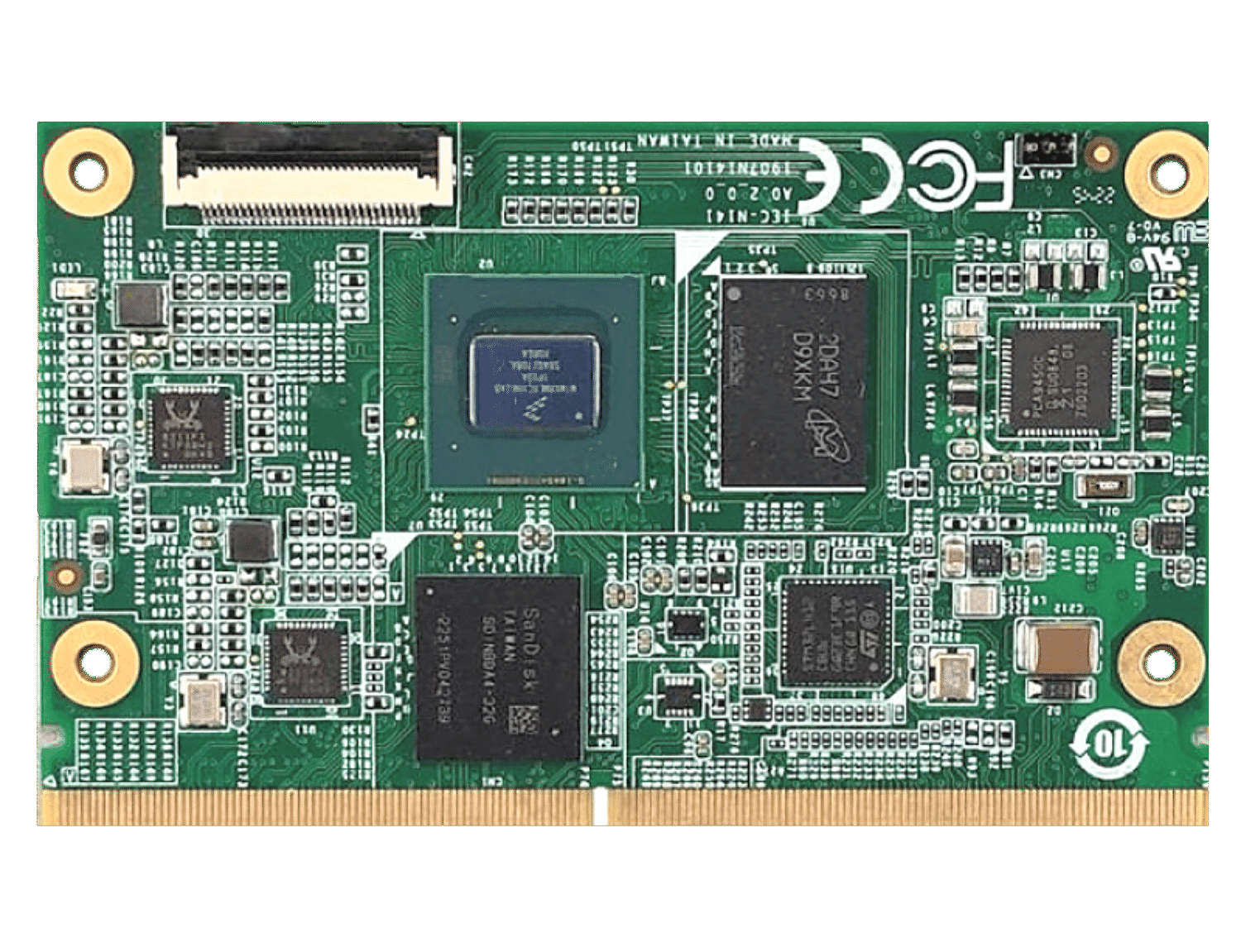

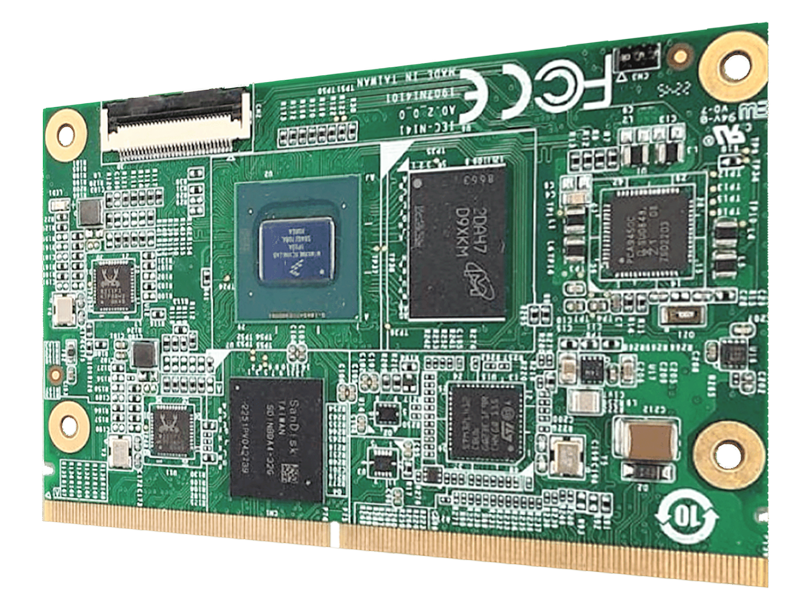

The ACM-IMX8E is a powerful and compact SMARC 2.1 System on Module (SOM) with the NXP i.MX8M Plus SoC. With up to 1.6GHz quad-core ARM Cortex-A53 processor, this SOM delivers high-performance computing for a wide range of applications. Measuring at a short size of 82 x 50mm and featuring an MXM3 connector, the ACM-IMX8E is designed to fit into space-constrained environments without compromising performance. It supports up to 8GB of LPDDR4 memory and 32GB of eMMC storage, providing ample space for data storage and processing.The ACM-IMX8E also features triple display support with HDMI 2.0a, LVDS, and MIPI-DSI interfaces, enabling versatile display options. Additionally, it boasts up to 2.3 TOPS of neural processing unit (NPU) performance, making it an ideal choice for AI and machine learning applications. This SOM also includes a range of scalable building blocks such as USB 3.0, CAN bus, and PCIe Gen3 interfaces, providing flexibility for various use cases. It operates in an industrial temperature range of -20°C to 70°C, ensuring reliable performance in harsh environments. The ACM-IMX8E supports Yocto, Ubuntu, and Android operating systems, making it easy to integrate into existing systems. Overall, the ACM-IMX8E is a feature-rich and scalable SOM that can meet the demands of various industrial applications.



 I/O Connectors

 Acrosser Academy


Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

● Up to 1.6GHz Quad-core ARM Cortex-A53
● Short-sized SMARC (82 x 50mm) with MXM3 connector
● Up to 8GB LPDDR4, 32GB eMMC
● Triple display: HDMI 2.0a, LVDS, MIPI-DSI
● Up to 2.3 TOPS NPU performance
● Feature-rich, scalable building blocks:
USB 3.0 / CAN bus / PCIe Gen3 interfaces
● Industrial operating temperature: -20°C ~ 70°C
● Yocto, Ubuntu, and Android support

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 Form Factor  SMARC (82 x 50 mm) with MXM3 connector
 Processor  NXP i.MX8M Plus Cortex-A53, Quad-core, 1.6GHz
 NXP i.MX8M Plus Cortex-A53, Dual-core, 1.6GHz
(model variant)
 RAM  2GB/4GB/8GB LPDDR4 (model variant)
 Storage  16/32GB eMMC (model variant)
 Network  2 x Gigabit Ethernet
 Display  1 x HDMI 2.0a
 1 x dual channel 24-bit LVDS
 1 x MIPI-DSI 4-lane shared with second LVDS channel
 Video input  1 x 2-lane MIPI-CSI
 1 x 4-lane MIPI-CSI
 Serial interfaces  2 x UART
 2 x CAN bus
 3 x I²C
 1 x JTAG
 USB  2 x USB 3.0
 PCIe  1 x PCIe Gen3
 Audio  1 x I²S
 Power supply  5V DC
 Environmental  ● Operating temperature: -20°C ~ 70°C
 ● Humidity: 5 ~ 95% relative humidity, non-condensing
 Dimensions  82 x 50 mm
 Ordering Information
 ACM-IMX8E1  NXP i.MX8 Plus, 1.6GHz, 4GB RAM, 32GB eMMC
 ACM-IMX8E2  NXP i.MX8 Plus, 1.6GHz, 2GB RAM, 16GB eMMC
 ACM-IMX8E3  NXP i.MX8 Plus, 1.6GHz, 8GB RAM, 32GB eMMC
 Block Diagram

 Specifications are subject to change without notice.
