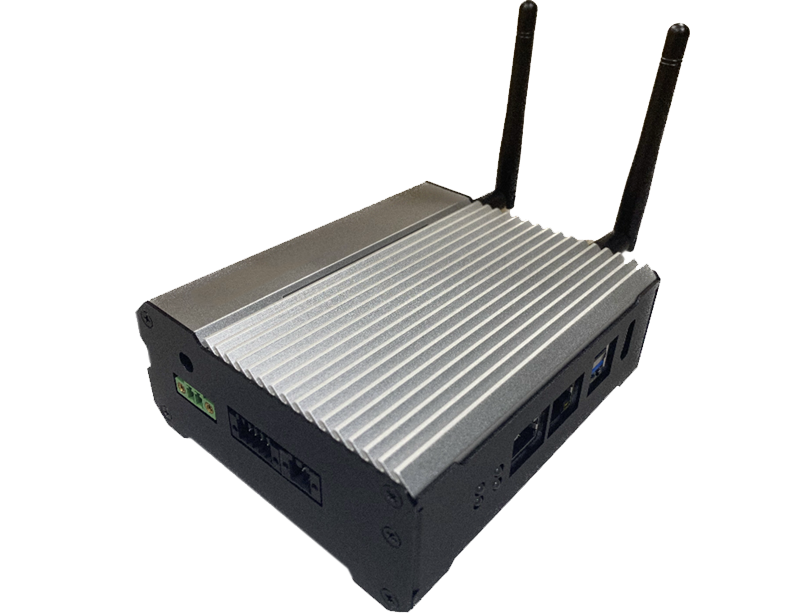

Introducing the AES-BC27: a powerful embedded system designed for IoT and edge computing applications. Featuring the Broadcom BCM2711 quad-core Cortex-A72 SoC running at 1.5GHz, this advanced device delivers exceptional performance. With 1GB DDR4L RAM and 8GB eMMC storage (with options for 2GB/4GB RAM and 16GB eMMC), the AES-BC27 offers versatility to meet your specific needs. Its rich interface includes 2 RS-232/485 ports, 1 isolated digital input (DI), 1 isolated digital output (DO), 2 Gigabit Ethernet ports, 1 CAN-FD interface, and 2 USB 3.0 Type A ports, ensuring connectivity for various applications. It operates reliably in harsh conditions, with a wide voltage input range of 9-36V DC and a temperature range of -20°C to 70°C. The AES-BC27 is the ideal choice for industrial automation, IoT devices, and edge computing, offering both powerful performance and adaptability to diverse environments.
 I/O Connectors
  Ask an Expert  >



 Acrosser Academy
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

● Support Broadcom BCM2711 quad-core Cortex-A72 SoC @ 1.5GHz
● Onboard DDR4L 1GB / eMMC 8G (optional 2/4G RAM/16G eMMC)
● 2 x RS-232/485, 1 x isolated digital input (DI), 1 x isolated digital output (DO)
● 2 x Gigabit Ethernet
● 2 x USB 3.0 type A, 1 x CAN-FD
● 9-36V DC, wide-range power input
●Wide-range operating temperature: -20˚C to 70˚C

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 Processor  Broadcom BCM2711 Quad-core Cortex-A72 1.5GHz
 Memory  1 /2/4 GB (model variant)
 Storage  8/16 GB (model variant)
 Real time clock  Yes
 Cellular  1 x B-key M.2 2280/3054 (USB signaling)
 Security  TPM 2.0
 Wireless LAN  WiFi 802.11 b/g/n/ac, BT 5.0 (varies with installed CM4 SOM)
 Operating System  Raspberry Pi OS
 LED indicators  3 x user definable LED indicators
 Power Supply
 9-36 VDC
 Environmental and Mechanical
 Dimension  130mm x 122mm x 57mm
 Weight  <600g
 Din Rail, Wall Mount
 Operating Temp.  -4 °F ~ 158 °F (-20 °C ~ 70 °C)
 Storage Temp.  -40 °F ~ 176 °F (-40 °C ~ 85 °C)
 Operating Humidity  10% ~ 95% relative humidity, non-condensing
 Regulations  CE, FCC
 Carrier  Planning
 Serial Port  2 x user selectable RS-232/485
 CAN bus  1 x CAN-FD, terminal block
 DI / DO  1 x Isolated digital input (DI); 1 x isolated digital output (DO)
 Ethernet  2 x GbE LAN, RJ-45
 USB  2 x USB 3.2 Gen 1, type A
 1 X USB 2.0 OTG
 Display  1 x HDMI 2.0
 Other Interface  1 x SIM card slot
 Expansion slot  M.2 B-Key 2280/3054
 Ordering Information
 AES-BC27E1  AES-BC27, Broadcom BCM2711, 9~36VDC

 Specifications are subject to change without notice.
