iEC-N321

Description

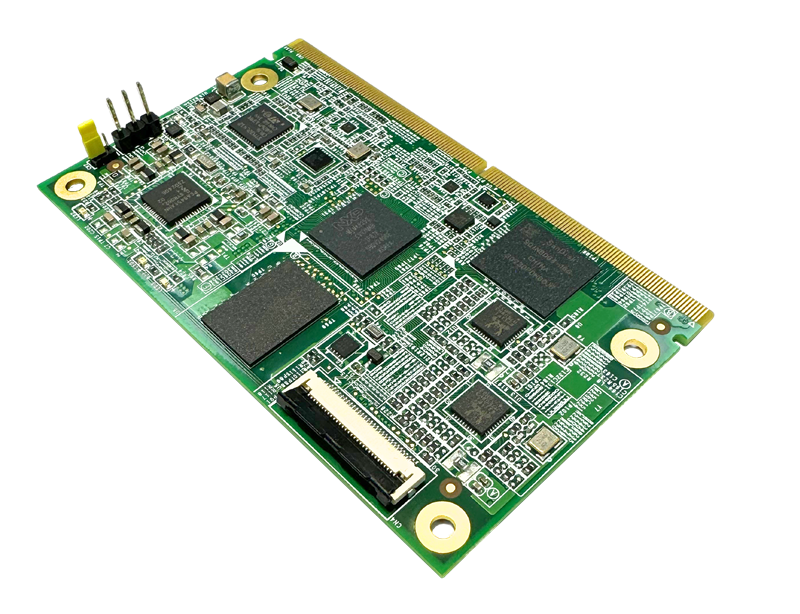

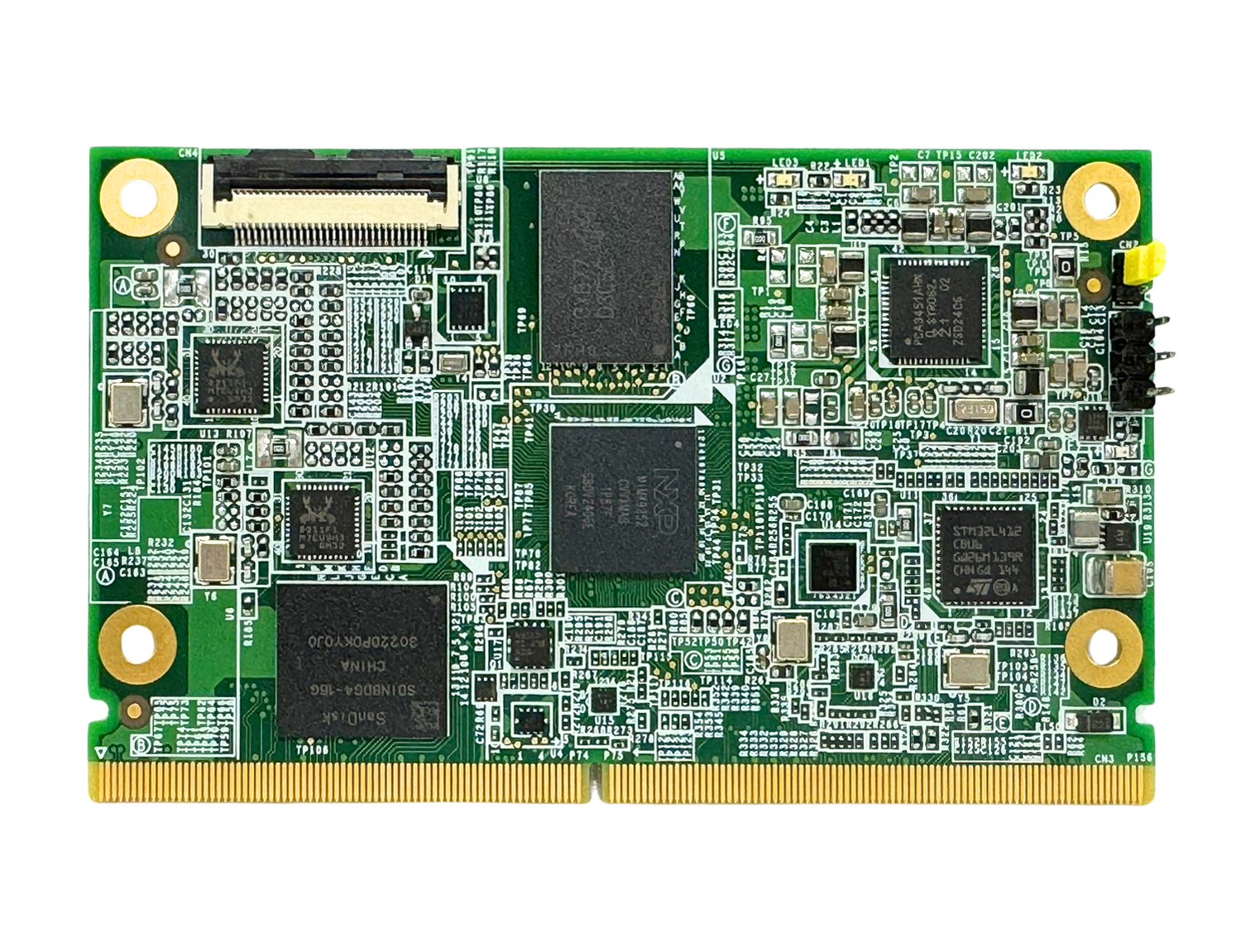

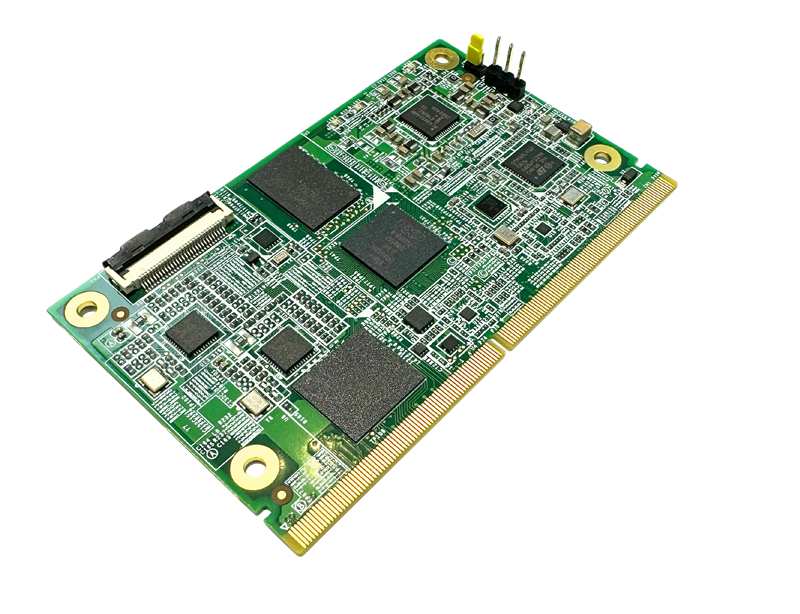

Acrosser proudly introduces the iEC-N321, a compact powerhouse designed for performance and versatility. Featuring a dual-core ARM Cortex-A55 processor running at speeds of up to 1.7GHz, this short-sized SMARC module (82 x 50mm) with an MXM3 connector packs a punch. With up to 2GB of LPDDR4 RAM and 16GB of eMMC storage, the iEC-N321 is ready to handle your computing needs.

Experience seamless connectivity with double display support through HDMI 1.4a and LVDS interfaces, allowing you to maximize your viewing experience. Designed for industrial applications, the iEC-N321 operates flawlessly in temperatures ranging from -40°C to 85°C, ensuring reliable performance in challenging environments.

Upgrade your industrial solutions with the iEC-N321 and unlock a new level of efficiency and performance. Acrosser is dedicated to providing cutting-edge solutions for your industrial needs.

I/O Connectors

Acrosser Academy

Features

● NXP i.MX 93 Daul Cortex-A55
● Short-sized SMARC (82 x 50mm) with MXM3 connector
● 2GB LPDDR4, 16GB eMMC
● Double display: HDMI 1.4a, LVDS
● Industrial operating temperature: -40°C ~ 85°C

Specification

CPU/MCU	NXP i.MX 93, dual Cortex-A55 @1.7 GHz Processor
Memory	2GB DDR4
Storage	16GB eMMC

Power Supply

Power Requirement

Environmental and Mechanical

Dimension	3.22“ x1.96“ (82 x 50 mm)
Weight	20 g
Operating Temp.	-40 °F ~ 185 °F (-40 °C ~ 85 °C)
Storage Temp.	-40 °F ~ 185 °F (-40 °C ~ 85 °C)
Operating Humidity	5% ~ 95% relative humidity, non-condensing

Certification

Carrier

Planning

Interface

Serial Port	2 x 2-Wire + 2 x 4-Wire
Ethernet	2 x Ethernet 10/100/1000
USB	2 x USB2.0
Display	1 x HDMI 1.4a 1080P@60 1 x 4 Lane LVDS

Ordering Information

2IEC-N321-01

SOM, NXP i.MX 93, 1.7GHz, 2G RAM, 16GB eMMC

Specifications are subject to change without notice.
