| Description |

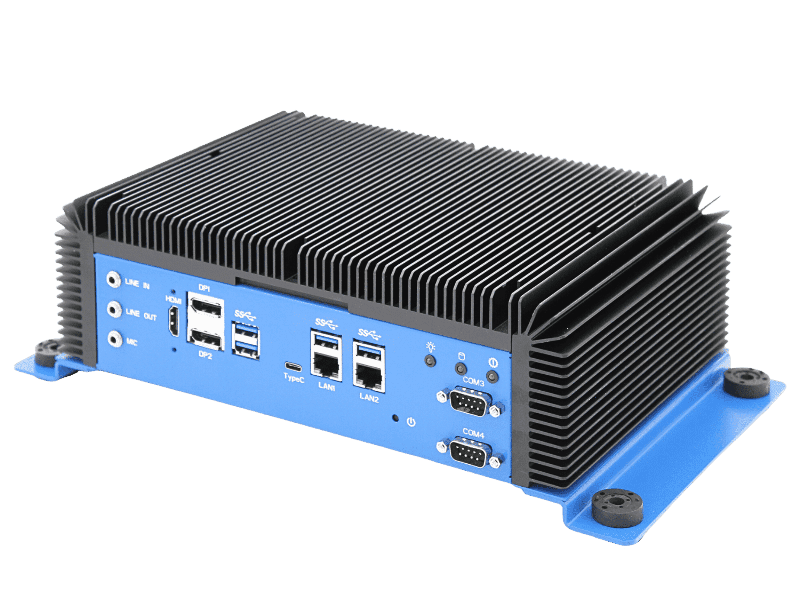

| Introducing the AIV-ADS7A1, a fanless design embedded computer from Acrosser. This device is powered by Intel® 12/13th Gen. i9/i7/i5/i3 Celeron Processor and supports 2 x DDR5 4800 MHz SODIMM, up to 32GB. With its Intel® 12/13th Gen. i9/i7/i5/i3 Socket Type Processor, this embedded computer provides high-performance computing capabilities suitable for various industrial applications.
The AIV-ADS7A1 comes with a durable aluminum die-casting enclosure that ensures reliable operation even in harsh environments. It also supports CANBUS and has a 9-32Vdc power input with power ignition, making it ideal for use in vehicles or other mobile applications. Furthermore, the fanless design of this embedded computer ensures silent operation and eliminates the need for maintenance. With its compact size and rugged design, the AIV-ADS7A1 is easy to install in narrow spaces and is suitable for a wide range of industrial applications. Upgrade your industrial computing capabilities with the AIV-ADS7A1 from Acrosser. |
|
|
| Ask an Expert > |
|

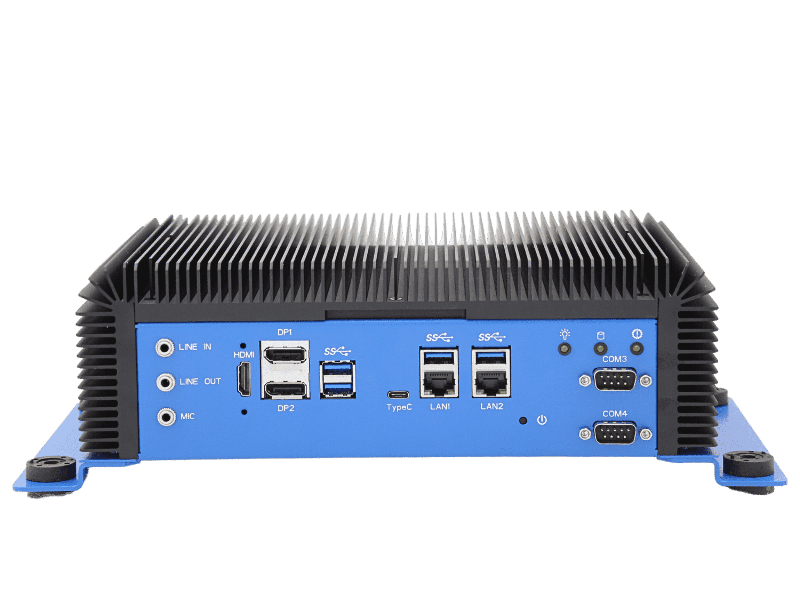

| I/O Connectors |
 |
| Acrosser Academy |
   3.gif) |
| Features |
| 1.Intel® 12/13th Gen. i9/i7/i5/i3 Socket Type Processor 2. Support 2 x DDR5 4800 MHz SODIMM, up to 32GB 3. Support CANBUS 4. 9-32Vdc with Power Ignition 5. Aluminum Die casting enclosure 6. Fanless design |
| |
| System |
| Processor | Intel® 12/13th Gen. Socket type Processor, LGA 1700, TDP is 35W |
| Chipset | Intel® Q670E |
| Memory | 2x DDR5 4800MHz Memory, up to 32GB |
| Display Interface | 1 x HDMI , 2 x DP |
| Storage Device | 2 x 2.5” SATA Bay |
| I/O connector | 1 x RJ45 Type Intel® I225 2.5GigE LAN 1 x RJ45 Type Intel® I229 GigE LAN 4 x Type A USB 3.2 Gen2 1 x Type C USB 3.2 Gen2x2 2 x DB9 Type RS-232/RS422/485 2 x DB9 Type RS-232 8 x DIO 1 x Mic-in, 1 Line-in, 1 Line-out 1 x DB9 CAN Bus 1 x Power Press Button LED Indicator |
| Expansion Slot | 1 x M.2 B Key(3052) for 4G/5G/GPS 1 x M.2 B Key(2230) for WiFI/BT 1x Nano SIM card slot |
| OS support | Window 10 64 bits, Ubuntu 22.04.1, 64 bit (Linux Kernel 5.15.0or above) |
| Mechanical |
| Mounting | Wall-mount |
| Dimension | TBD |
| Gross Weight | TBD |
| Net Weight | TBD |
| Power Supply |
| DC input | DC 9-32Vdc w/Power ignition |
| Environment Test |
| Operation Temp. | -25°C to 50°C |
| Humidity | 5~90% (non-condensing ) |
| Vibration | IEEE 60068-2-64, 5Grms/5~500Hz/3 Axis |
| Shock | IEEE 60068-2-27, 50G peak acceleration (11msec, Half-sine, w/SSD) |
| Certification | CE/FCC class A |
| Packing List |
| ● 1 x AIV-ADS7A1 ● 1 x 3-Pin Terminal block ● 1 x Wall mount bracket Set ● 1 x Screws Package |
| Ordering Information |
| AIV-ADS7A1 | AIV-ADS7A1- Intel 12/13 Gen. Socket Type Processor, 9-32Vdc |
| OthersOptional Accessories |
| DDR5 WiFI module 4G Module |
| CPU List |
| Series | CPU | Core | P-Core | E-Core | Thread | Frequency | TDP (W) |
| Intel | i9-12900TE | 16 | 8 | 8 | 24 | 4.8 | 35 |
| i7-12700TE | 12 | 8 | 4 | 20 | 4.6 | 35 | |
| i5-12500TE | 6 | 6 | 0 | 12 | 4.3 | 35 | |
| i3-12100TE | 4 | 4 | 0 | 8 | 4.0 | 35 | |
| G6900TE | 2 | 2 | 0 | 2 | 2.4 | 35 |
Specifications are subject to change without notice.
| |
