Description

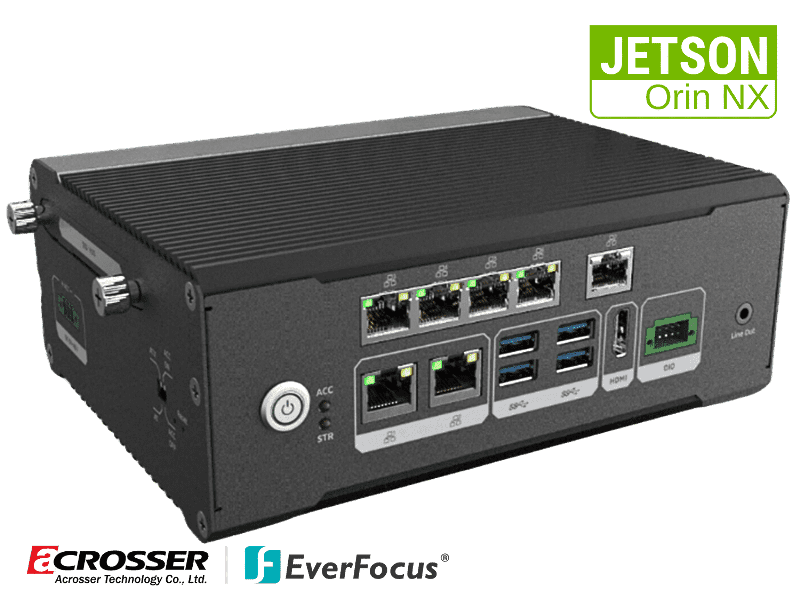

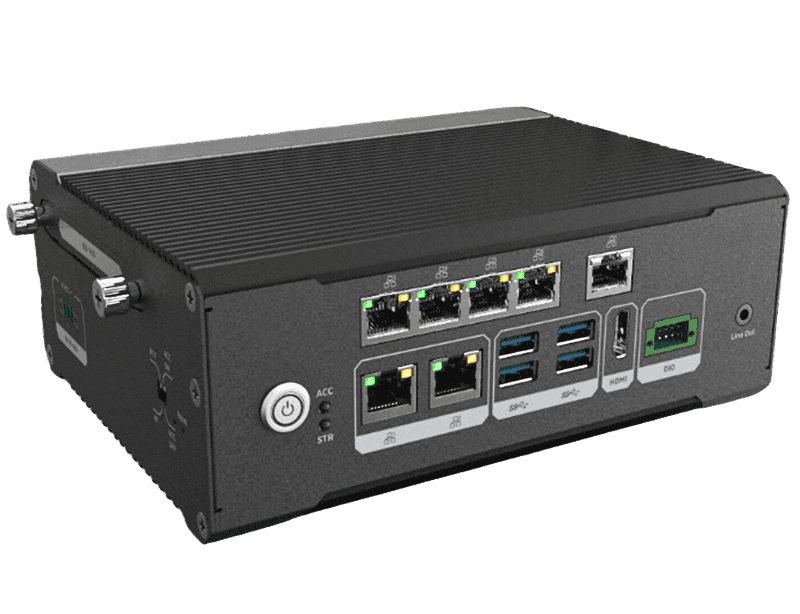

Introducing the AIV-ORNXE, powered by NVIDIA® Jetson Orin™ NX. This versatile device combines high-performance computing with robust connectivity options for seamless data collection. With its 16GB or 8GB 128-bit LPDDR5 onboard memory, the AIV-ORNXE delivers exceptional speed and efficiency. Equipped with Gigabit LAN, USB 3.1, Serial Port, and CAN-FD interfaces, this device offers multiple I/O connections to facilitate easy integration with various systems. Whether you need to transfer data, connect peripherals, or communicate with external devices, the AIV-ORNXE has you covered. Designed to withstand challenging environments, the AIV-ORNXE operates reliably in temperatures ranging from -20˚C to 60˚C. Upgrade your data collection capabilities with the AIV-ORNXE and experience the power of NVIDIA® Jetson Orin™ NX. Enhance your workflow and unlock new possibilities with this advanced solution.
  Ask an Expert  >





 I/O Connectors

 Acrosser Academy

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook



 Features
1. Powered by NVIDIA® Jetson Orin™ NX
2.Onboard 16GB / 8GB 128-bit LPDDR5
3.Multiple I/O interface connections for data collection
Gigabit LAN, USB 3.1, Serial Port, CAN-FD
4. Wide operating temperature range -20˚C to 60˚C
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 System
CPU/GPU  NVIDIA® Jetson Orin™ NX
 8/6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
 1024-core NVIDIA Ampere architecture GPU with 32 Tensor  Cores
 Memory  Onboard 16GB / 8GB 128-bit LPDDR5
 Storage  1 x M.2 M-Key 2280, support NVMe
 Real time clock  Yes
 Indicators  LED indicator x 1 (Power)
 Wireless  1 x M.2 E-Key 2230
 1 x M.2 B-Key 3052
 Operating System  Linux
 (NVIDIA Jetpack 5.1.1 and above)
  Power Supply
 Power Requirement  9 to 48 VDC
 Power Consumption  Max. 45W (with Fan, without 4x PoE)
 Ignition Power
Management
 12/24/48V Mode
 Environmental and Mechanical
 Dimension  192 x 154.8 x 70.4mm
 Weight  0.9 kg

 Mouting/
 Installation

 Din Rail, Wall Mount, VESA Mount
 Operating Temperature  -4 °F ~ 140 °F (-20 °C ~ 60 °C)
 Storage Temperature  40 °F ~ 176 °F (-40 °C ~ 85 °C)
 Operating Humidity  10% ~ 95% relative humidity, non-condensing
 Certification
Regulations  CE, FCC
Carrier  Planning
 Interface
Serial Port  CE, FCC
CAN Bus  Planning
Ethernet  1 x GbE LAN support PD 60W, RJ45
 1 x GbE LAN support PSE 15W, RJ45
 DC Mode:
 4 x GbE LAN support PSE Max 60W, RJ45
USB  4 x USB 3.1, Type-A
DI/DO  8x Alarm I/O
Display  1 x HDMI 2.0-Out
Power Connector  Terminal Block
Debug Port  1 x Micro USB for console
Expansion Slot  1 x SIM card slot
 1 x Micro SD slot
Other Interface  --
 Packing List
 ● AIV-ORNXE x1
 Ordering Information
AIV-ORNXE1  NVIDIA® Jetson Orin™ NX, 8GB, 9 to 48 VDC
AIV-ORNXE2  NVIDIA® Jetson Orin™ NX, 16GB, 9 to 48VDC
AIV-ORNXE3  NVIDIA® Jetson Orin™ NX, 8GB, 4 x PoE, 9 to 48VDC
AIV-ORNXE4  NVIDIA® Jetson Orin™ NX, 16GB, 4 x PoE, 9 to 48VDC
Optional Accessories
4170A000012  CPU Core P-Core
4B01XUD12060AS3  Cable,DC Jack to 2P,L=50
4K02X00000030AR  Power Cord EU
4K02X00000020AR  Power Cord US

Specifications are subject to change without notice.
