ANR-W480A, 1U Rackmount Network server Intel® 10th Gen Comet Lake-S Xeon W, Core™ i9, i7, i5, i3, 2 Exp. NIMs & 1+1 Redundant PSU.
This new generation 1U rackmount server ANR-W480A is equipped with 10th Gen. Intel Core i9/i7/i5/i3/Pentium/Celeron Processor and Intel Xeon W-1200 Processors. ANR-W480N2 supports Intel W480E chipset, up to 128GB DDR4 ECC/non-ECC SO-DIMM, in 4x 288-pin UDIMM DDR4-2666 Slots, SATA3, 2x 2.5in drive bays, 1x M.2 socket, and 9x GbE Copper port, and 2x SFP (1G Fiber) for Ethernet.
ANR-W480A, with powerful computing ability and outstanding network communication ability, is perfect to apply to UTM, vCPE of SDN/NFV structure, fog node of cloud computing, and IoT gateway.
| Acrosser Academy |
|
What is SDN/NFV?? SDN/NFV are two related technologies that are transforming the way networks are designed, managed, and operated. SDN is an architecture that separates the control plane from the data plane, allowing network administrators to centrally manage network traffic flows through a software-based controller. This means that network devices, such as switches and routers, no longer have to make complex decisions about how to handle traffic, as this is now done centrally. This approach provides greater flexibility, as it allows network administrators to quickly reconfigure the network to adapt to changing business needs. NFV, on the other hand, is a technology that virtualizes network functions, such as firewalls, routers, and load balancers, and runs them on standard servers, rather than dedicated hardware appliances. This approach reduces the cost of network infrastructure, as it eliminates the need for expensive hardware and enables network functions to be deployed more quickly. Together, SDN and NFV provide a more flexible, scalable, and cost-effective network infrastructure that can quickly adapt to changing business needs and enable more efficient use of network resources. |
   3.gif) |

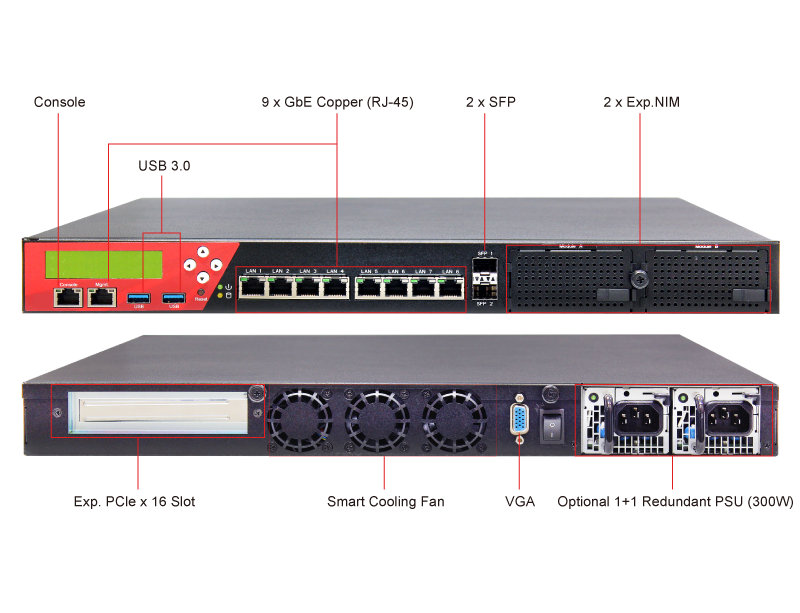

1. Intel® 10th Gen Comet Lake-S Xeon W, Core™ i9/i7/i5/i3
2. 4 x UDIMM DDR4
3. 2 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass)
4. 1 x Serial Console (RJ-45)
5. 2 x 1G Fiber
6. 9 x GbE Copper with 2-pairs LAN Bypass
7. 2 x 2.5" SATA-III
8. 1 x M.2
9. Optional for ATX 300W or 1+1 Redundant PSU (300W)
| System |
| CPU | Intel® Xeon® W-1290E Intel® Xeon® W-1270E Intel® Comet Lake-S Core™ i9-10900E Intel® Comet Lake-S Core™ i7-10700E Intel® Comet Lake-S Core™ i5-10500E Intel® Comet Lake-S Core™ i3-10100E |
| Chipset | Intel® W480E PCH |
| Memory | 4 x UDIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Ethernet |
| Ethernet port | 9 x GbE Copper (RJ-45) 2 x 1G Fiber |
| LAN Bypass | 2-Pair Bypass -1st LAN bypass by LAN[1:2] -2nd LAN bypass by LAN[3:4] |
| Storage |
| HDD Bay | 2 x 2.5"/3.5" SATA-III |
| M.2 | 1 x M.2 B key Socket 2242 or 2280 |
| I/O |
| Console port | 1 x Serial Console (RJ-45) |
| USB port | 2 x USB 3.2 Gen1.(Front-Side) |
| Expansion | ANR-W480A1 : 2 x NIM module.(PCIe x 8)(for) ANR-W480A2 : 2 x NIM module (PCIe x 8, PCIe x 4) 1 x PCIe x 8 slot |
| LCD Module | 16 characters x 2 lines with 4-key button(optional) |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Exp. NIM | 2 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass) |
| Video |
| Video Interface | VGA(Rear-Side) |
| Others |
| Battery | Lithium Battery, 3V 220mAH (CR2032) |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp. FAN Speeds |
| Security | TPM 2.0 |
| Power Requirement |
| Power Unit | BOM Optional For 1x ATX PSU(300W), 100-240V or 1+1 Redundant PSU(300W), 100-240V |
| Software |
| OS Support | Linux kernel 5.2 and above |
| Mechanical & Environment |
| Dimensions | 440(W) x 44(H) x 470(D)mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @40°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2, |
| Model Name |
| ANR-W480A1 | .1U Rackmount Network Server .Intel® 10th Gen Xeon W, Core™ i9/i7/i5/i3 .2 x Exp. NIM (1G/10G/40G, Fiber/Copper/LAN Bypass) .9 x 1G GbE .2 x 1G Fiber .2 x 2.5” SATA-III .1 x M.2 .1+1 Redundant PSU (300W) or ATX PSU (300W) |
| ANR-W480A2 | .1U Rackmount Network Server .Intel® 10th Gen Xeon W, Core™ i9/i7/i5/i3 .1 x Exp. NIM(1G/10G/40G/Copper/Fiber/LAN Bypass) .1 x Exp. NIM(1G/10G/Copper/Fiber/LAN Bypass) .9 x 1G GbE .2 x 1G Fiber .2 x 2.5” SATA-III .1x PCIe x8 slot .1 x M.2 .1+1 Redundant PSU (300W) or ATX PSU (300W) |
| Packing List |
| ● ANR-W480A-system x 1 ● SATA cable x 2 ● RJ45 console cable (RJ45 <-> DB9) x 1 ● Rack bracket x 1 ● Box packing x 1 ● Screw pack x 1 |
