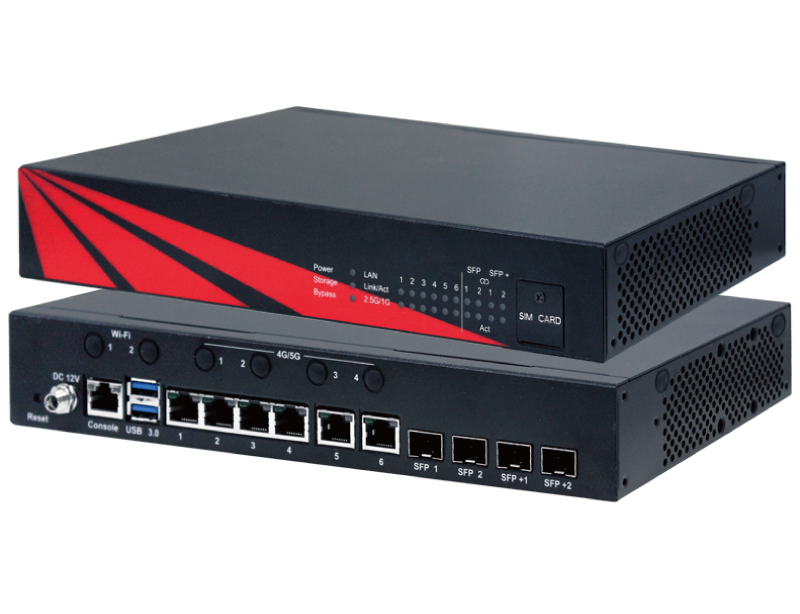

Acrosser Technology Co., Ltd. is launching the AND-DNV3B Series desktop network appliance device, designed for software-defined WAN (SD-WAN) and universal Customer Premises Equipment (uCPE). It comes with high-efficiency features and is powered by the Intel Atom C3338R/C3558/C3758 processor. The AND-DNV3B Series offers solutions from entry-level to high-performance edge security computing, featuring Intel® Virtualization Technology (VT-x), Intel® QuickAssist Technology (Intel® QAT), and Data Packet Development Kit (DPDK) to optimize processor utilization and network throughput.

The AND-DNV3B Series provides up to six copper 2.5GbE LAN ports, two copper SFP, and two SFP+ Fiber 10 GbE LAN ports, accelerating deployment of SD-security, QoS, and other SDN/NFV applications. It also provides flexible WAN connectivity options including dual 4G/LTE, Wi-Fi 5, Wi-Fi 6, and 5G configurations, and can include PoE+ and eMMC product functions upon request.

The AND-DNV3B Series is an ideal NFV-ready Whitebox uCPE Solution for the expanding uCPE market, including applications such as IoT and 5G. It provides faster and easier service provisioning, centralized control, and improved flexibility with Software-defined Security.

 I/O Connectors
  Ask an Expert  >



 Acrosser Academy
 SD-WAN (Software-Defined Wide Area Networking) simplifies the management and operation of wide area networks (WANs) using software and cloud-based technologies. It creates a virtual overlay network on top of the existing WAN infrastructure, enabling centralized management and control of the entire network. SD-WAN leverages multiple network paths and dynamically routes traffic based on application needs, improving network performance and reliability. It also provides enhanced security features such as firewalling, encryption, and VPN connectivity. Overall, SD-WAN provides a flexible and scalable solution for organizations looking to improve their WAN infrastructure.
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

1. Intel® Atom® C3338R/C3558/C3758 Processor
2. Support 1 x DDR4 ECC/Non-ECC SODIMM
3. Support 6 x 2.5GbE, 2 x 1GbE SFP, 2 x 10GbE SFP+
4. Support 1-pair Bypass
5. Optional 3G, 4G LTE, 5G, WiFi And WiFi 6


Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 CPU  Intel® Atom® C3338R, 2C2T, 1.89GHz
 Intel® Atom® C3558, 4C4T, 2.20GHz
 Intel® Atom® C3758, 8C8T, 2.2GHz
 Chipset  Intel® SoC
 Memory  1 x DDR4 ECC/Non-ECC SODIMM
 WatchDog Timer  Software programmable 1~255 sec.
 Chipset  Intel® I226, I210IS
 Connector   6 x GbE RJ-45 & 2 x SFP(B1)
 6 x GbE RJ-45 & 2 x SFP & 2 x 10GbE SFP+(B2&B3)
 LAN bypass  1-pair LAN Bypass
 Storage Device  1 x 2.5” SATA Storage
 1 x M.2 2242/2280 B key

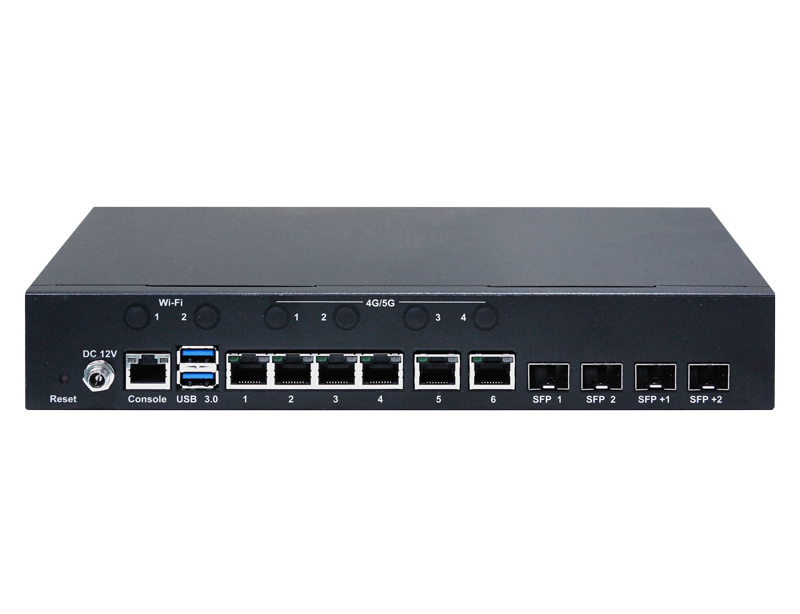

I/O connector  6 x GbE RJ-45 & 2 x SFP
 2 x 10GbE SFP+ (C3558 & C3758 SKU)
 2 x USB 3.0
 1 x RJ45 Type Console
 1 x DC-in DC Jack connectors(12V)
 10 x Antenna holes
 Reset Button

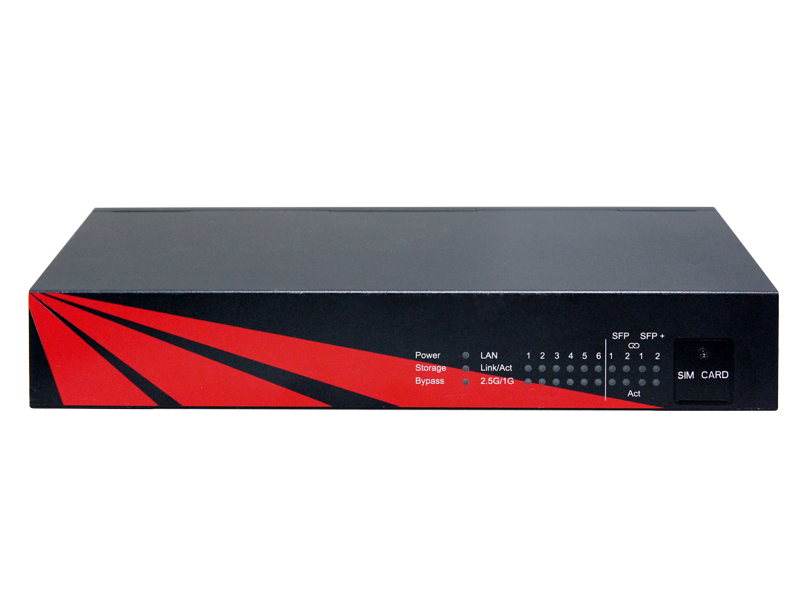

 LED Indicators
 2 x External Easy Access SIM Slots
 Expansion  1 x M.2 2230 E key(For Install WiFi Module)
 1 x M.2 3042/3052 B key(For Install 4G/5G Module)
 1 x M.2 2242/2280/3042/3052 B key(Could Install SATA Storage/4G/5G Module)
 * For B1, default signal is SATA signal, you could change to signal from SATA to USB under BIOS setting
 OS support  Linux Kernel 5.15 LTS & above, (64-bit)
 TPM  Support TPM 2.0
 Cooling  Fanless : C3338R, C3558
 System Fan : C3758
 Mechanical & Environment
 Dimensions  270 x 160 x 44mm (W x D x H)
 Weight  2.4Kg
 Power Supply
 DC input  DC Jack, 12Vdc 40W Adapter or
 DC Jack, 12Vdc 60W Adapter
 Packing List
 ● AND-DNV3B-system x 1
 ● Power Adapter(12V) x 1
 ● USA/EU/JPN/UK/AS/NZS/SA power cord x 1
 ● Screw Pack x 1
 Optional Accessories
 ● DDR4
 ● WiFI module
 ● WiFI6 module
 ● 4G Module
 ● 5G Module
 Ordering Information
 AND-DNV3B1  Intel® Atom® C3338R
 6x 2.5GbE Copper
 2x SFP
 Include 12V 40W Adapter
 AND-DNV3B2  Intel® Atom® C3558
 6x 2.5GbE Copper
 2x SFP, 2x SFP+
 Include 12V 40W Adapter
 AND-DNV3B3  Intel® Atom® C3758
 6x 2.5GbE Copper
 2x SFP, 2x SFP+
 Include 12V 60W Adapter

Specifications are subject to change without notice.
