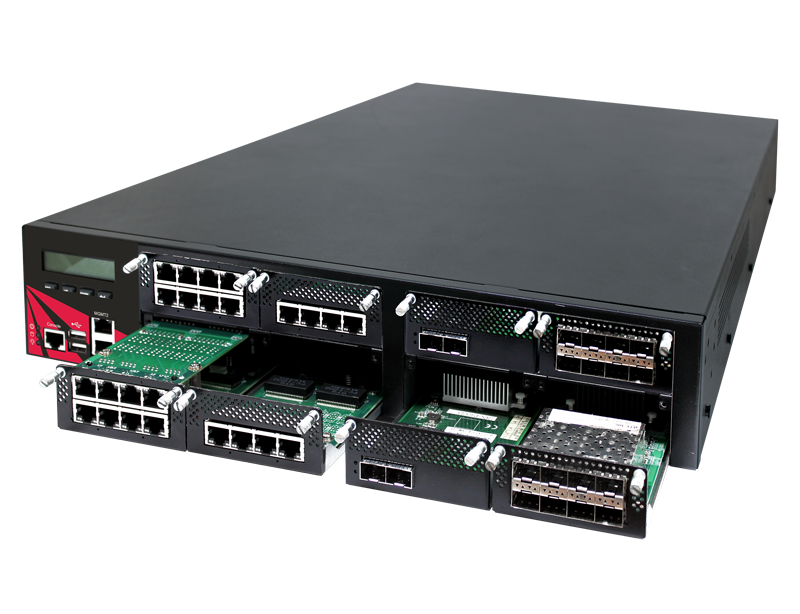

Acrosser has announced a new 2U rackmount edge network appliance named ANR-C621A1. This appliance is powered by dual Intel 3rd Gen Xeon Scalable Processors (Intel code name “Ice Lake-SP”). The processors from Intel are optimized for cloud, enterprise, HPC, network, security, and IoT workloads, with up to 40 powerful cores and a wide range of frequency, feature, and power levels. The ANR-C621A1 is infused with Intel Crypto Acceleration, which enhances data protection and privacy by increasing the performance of encryption-intensive workloads including SSL web serving, 5G infrastructure, and VPN/firewalls, while reducing the performance impact of pervasive encryption. The ANR-C621A1 also fueled by Intel SGX, which protects data and application code while in use from the edge to the data center and multi-tenant public cloud, making it an ideal product for UTM, SD-WAN, 5G MEC and IT/OT Cybersecurity.

The ANR-C621A1 provides up to 16 DDR4 RDIMM channels and has a maximum memory capacity of 512 GB with error-correcting code (ECC), which protects against undetected data corruption, reduces crashes and boost system performance for cybersecurity applications. To make expansion network slots easy, the ANR-C621A1 provides 8 high-speed networking interfaces module(NIM), including 8 copper 1GbE LAN ports, 8 SFP+ Fiber 10 GbE LAN ports, up to 66 LAN ports. It also provides 1 PCIe[x16] expansion slot for an add-in riser card, accelerating the deployment of networking security, UTM, and uCPE scenarios.

"The uCPE enables the use of a single platform for various functions, including routing, VPN, firewall, IPS/IDS, SD-WAN, UTM and IT/OT cybersecurity. Acrosser's ANR-C621A1 is an ideal NFV-ready uCPE solution that offers faster and easier service provisioning, centralized control, and improved flexibility with software-defined security," said Alan Chou, Head of Product Planning Division.

The ANR-C621A1 provides 1 x RJ-45 console, 1 x IPMI slot, and 1 x LCM with keypad, enabling operators to easily access the appliance for system configuration. It also provides 2 x 2.5” SATA type SSD/HDD for data backup, full range 1200W 1+1 redundant power supply design, and is equipped with Trusted Platform Module 2.0 for hardware-based data encryption to enhance data protection. The ANR-C621A1 delivers a perfect mixture of performance, flexibility, and security for cloud-scale computing, AI, 5G networks, HPC workloads, and multi-access edge computing (MEC) applications.

  Learn more  >



 I/O Connectors
  Ask an Expert  >



 Acrosser Academy
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook

1. Support Dual 3rd Gen Intel® Xeon® Scalable Processors (Intel IceLake-SP)
2. Support 16x DDR4 RDIMM, Max. 512GB
3. Support 8x NIM modules
4. 1x PCI-E x16 expansion slot
5. 1200-Watt 1+1 redundant power supply



Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 CPU  Support 2 x Intel® Xeon® Ice Lake-SP
 Processors Dual Socket,
 Socket Type: LGA4189
 TDP: Max. 165 Watts
 Chipset  Intel® C621A PCH Chipset
 Memory  16 x 288Pin DDR4 RDIMM, up to 3200 MT/s,
 Max up to 512GB
 1. Support 8 Channels per CPU; Total 16
 channels for Dual CPU, Max. Capacity:256
 2. Primary slot (black color) must be
 populated per CPU socket
 WatchDog Timer  Software programmable 0~255 sec.
 Connector  2 x GbE RJ-45(As MGMT Ports)(Intel I210-AT)
 Note 2:
 - 1 (MGMT-2) for LAN Function
 - 1 (MGMT-1) for MGMT ports (bottom)
 w/ LAN Function
 LAN bypass  N/A
 HDD Bay  2 x 2.5” SATA Storage(Internal)

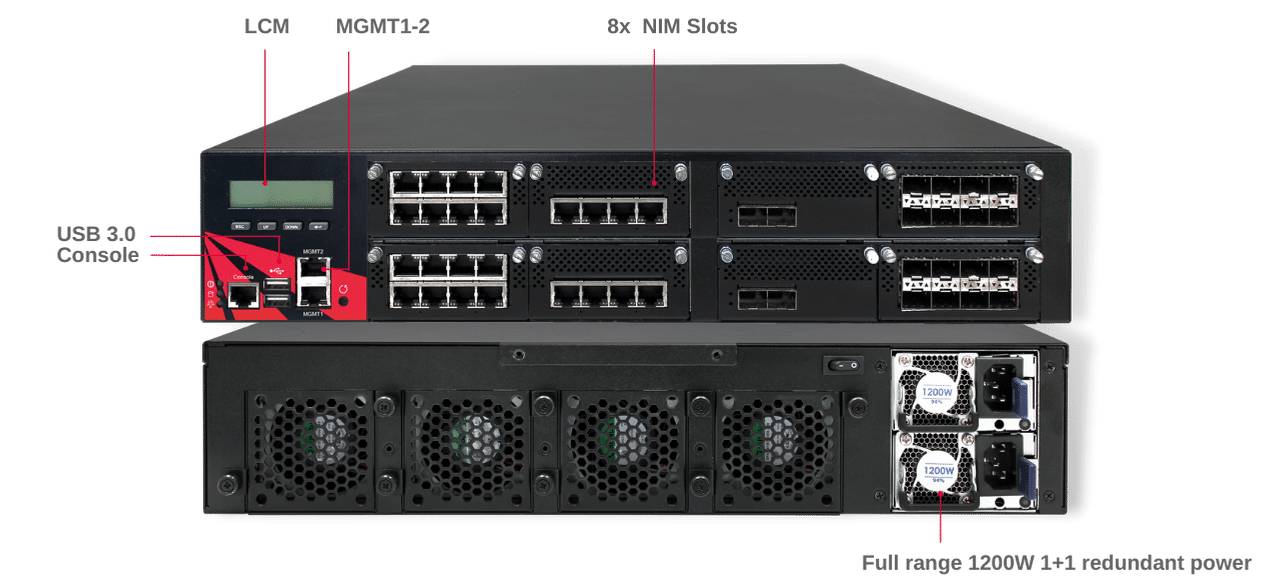

 Front I/O
 3 x LED Indicators
 2 x GbE RJ-45 (As MGMT Ports)
 1 x RJ45 Type Console
 2 x USB 3.0
 Reset Button
 8 x NIM Slots
 Back I/O
 Power Input
 Power Switch Button
 1 x VGA (Optional Kit By Expansion I/O Board)
 Expansion Slot  8 x NIM Slots
 1 x PCI-E x16 slot (8-lane)(Internal)
 1 x M.2 M Key 2280/2242
 (Support SATA 3.0 or PCIe signal)
 Video interface  N/A
 OS support  Windows Server 2016/2019 LTSC, Linux Ubuntu 20.04
 QAT&DPDK  Support 1 x LCM @ 2 x 16 characters
 CPU Volt.
 CPU & SYS Temp.
 FAN Speeds
 TPM  Support Infineon SLB9670VQ2.0
 Mechanical & Environment
 Dimension  438 (W) x 660 (D) x 88 (H) mm
 17.24" (W) x 25.98" (D) x 3.46" (H)
 Weight  21.0 kg (46.3 lbs)
 Operating Temp.  0°C to 40°C
 Storage Temp. -20°C to 70°C
 Relative Humidity  5 to 90% @40°C, non-condensing
 Certification  CE/FCC class A
 Power Requirement
 DC input  Full range 1200W 1+1 redundant power
 Packing List
 ● ANR-C621A1 System x 1
 ● Console cable, 160cm x 1
 Ordering Information
 ANR-C621A1  2U Network Appliance with Dual 3rd Gen Intel®
 Xeon® Scalable Processors With 8 NIM Slots,
 1+1 1200W Redundant power
 ACC-NM1ZB-01C8B  8 x RJ45 Type GbE w/ 4 pairs Bypass (2 x Intel i350-AM4)
 ACC-NM1ZB-01F8  8 x SFP type GbE(1x Intel® i350-AM4)
 ACC-NM1ZB-10F4  4 x SFP+ type 10GbE(Intel® XL710-BM1)
 Optional Accessory
 288 Pin DDR4 RDIMMs
 2.5" SATA Type SSD
 Rackmount rails

Specifications are subject to change without notice.
