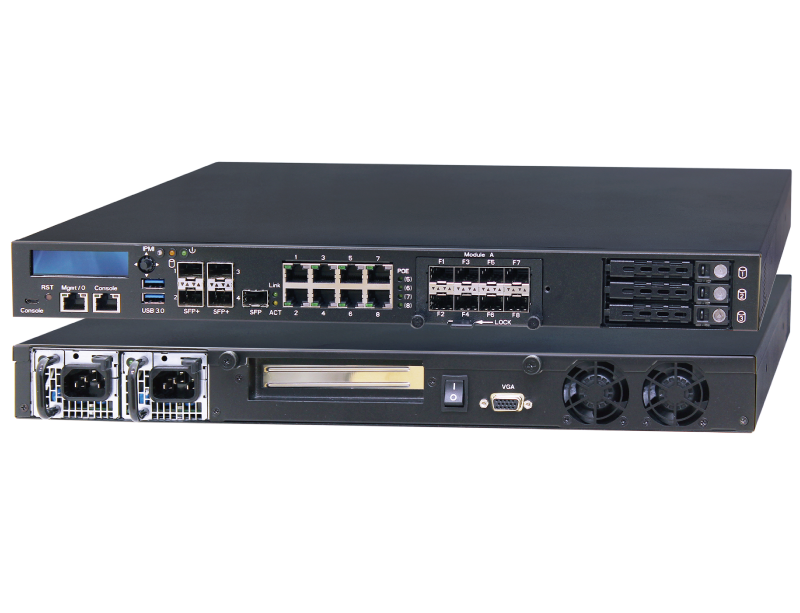

ANR-DNV3N3, 1U Rackmount IoT Gateway/Network Micro Server Intel® Denverton Platform, 1 Exp. NIM, & 1U Redundant PSU, is perfect for network server hardware, network security hardware, SDN/NFV, vCPE hardware, network appliances, and SD-WAN hardware solution. Product EONotie
-------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------Thismodel will be EOL after 2022/12/31)
1. Intel® Denverton C3000 Platform
2. 4~16 core SoC options
3. 4 x UDIMM DDR4
4. 1 x Exp. NIM (1G/10G/25G/40G Fiber/Copper/LAN Bypass)
5. 1 x Mgmt. port (Reserved)
6. 3 x 2.5" Hot-swappable(Drive Bay),1 x CFast
7. 2 x smart cooling fan
8. 1+1 Rendundant PSU
| System |
| CPU | Intel® Atom® C3958 Processor Intel® Atom® C3858 Processor Intel® Atom® C3758 Processor Intel® Atom® C3558 Processor |
| Chipset | Intel® Denverton SoC |
| Memory | 4 x ECC DIMM DDR4 |
| BIOS | AMI |
| WatchDog Timer | Software programmable 0~255 sec. |
| Video |
| Video Interface | VGA |
| Ethernet |
| Chipset | Intel® i210, X553 |
| Connector | 4x GbE Copper (RJ-45) 2x GbE Copper (RJ-45), Optional 2x GbE Fiber (SFP) |
| LAN bypass | 2-pair |
| Storage |
| HDD Bay | 3 x 2.5” SATA-III Hot-swappable(brive bay) |
| CFast | 1 x CFast socket |
| I/O |
| Console Port | 1 x Serial Console (RJ45) |
| USB port | 1 x USB console (micro-USB) |
| LCM | Graphic LCM |
| GPIO | 8-bit GPIO (4-In, 4-Out), on-board pin header |
| Exp. NIM | 1 x Exp. NIM Hot-swappable (Not for C3558) (1G/10G/25G/40G, Fiber/Copper/LAN Bypass) |
| Expansion | 1 x Exp. PCle Gen3 x8(FHHL)(Not for C3558) (Not available if NIM is used) |
| Others |
| Battery | Lithium Battery, 3V 220mAH (CR2032) |
| Hardware Monitoring |
CPU Volt. CPU & SYS Temp. FAN Speeds |
| Security | TPM 2.0 (Infineon chipset) IPMI 2.0 (Reserved) Chassis Intrusion Detection |
| QAT & DPDK | Support QAT & DPDK |
| Power Requirement |
| Power Supply Unit | 1+1 Redundant ATX PSU (280W) 100-240VAC |
| Software |
| OS Support | Linux Kernel 4.8 and above, (64-bit) |
| Mechanical & Environment |

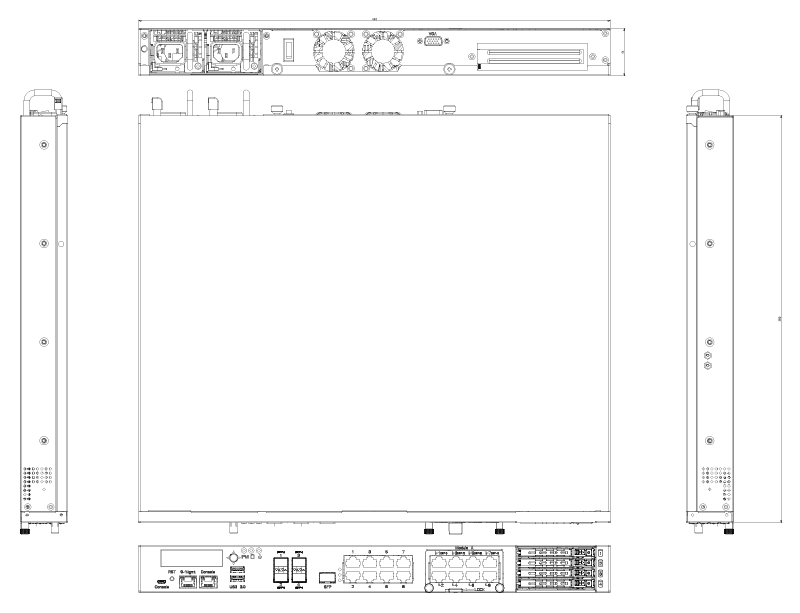

| Dimension | 430 (W) x 44 (H) x 400 (D) mm |
| Operating Temp. | 0~ 40°C (32~104°F) |
| Storage Temp. | -20~80°C (-4~176°F) |
| Relative Humidity | 0 to 90% @90°C, non-condensing |
| Certifications | CE, FCC Class A, RoHS 2, cULus |
| Model Name |
| ANR-DNV3N3 | 1U Rackmount IoT Gateway/Network Micro Server Intel® Denverton-NS platform 1 x Exp. NIM (1G/10G/25G/40G,Fiber/Copper/LAN Bypass) 9 x GbE, 2~4 x SFP+ ATX or 1+1 Redundant PSU |
| Packing List |
| ● 1 x ANR-DNV3N3 series system x 1 |
| ● 1 x Console cable (RJ-45 to Serial) x 1 |
| ● 1 x Rackmount bracket |
| ● 1 x CD with Driver and Manual |
| ● 1 x USA / EU / JPN / UK / AS / NZS / SA / India power cord x 1 |
| ● 1 x Screw Pack x 1 |
| ● 1 x Screw Pack |
| Ordering Information |
| ANR-DNV3N3-04 | 430 (W) x 44 (H) x 400 (D) mm |
| ANR-DNV3N3-08 | 0~ 40°C (32~104°F) |
| ANR-DNV3N3-08P | -20~80°C (-4~176°F) |
| ANR-DNV3N3-12R | 0 to 90% @90°C, non-condensing |
| ANR-DNV3N3-16R | Intel Atom C3958 (16-core) SoC, 9 GbE Copper (2-pair bypass), 1 SFP and 4 SFP+, 1 NIM/1 PCIe x8 Exp. Slot, 2 USB 3.2 Gen1, 1 VGA, 3x 2.5”SATA3 drive bay and 300W Redundant PSU. |
Specifications are subject to change without notice.
