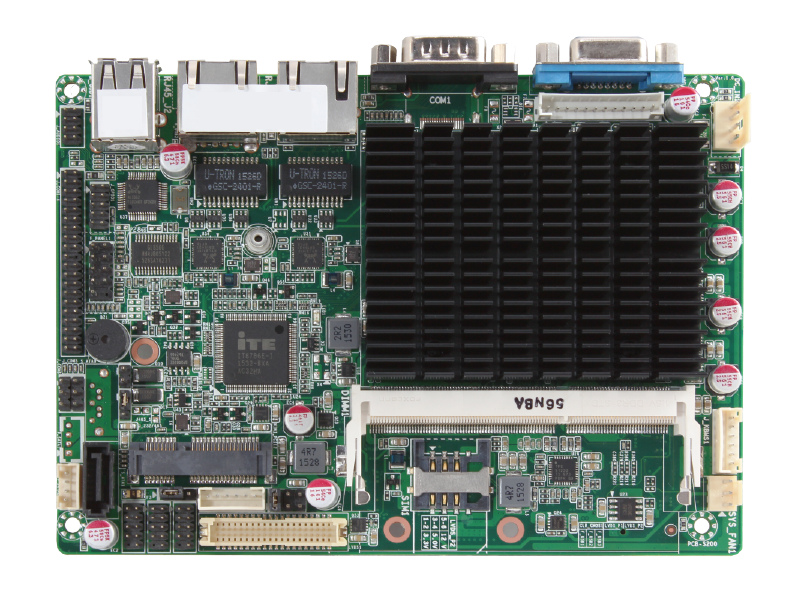

AMB-BT19S1, an embedded CPU board at a 3.5” form factor, is compact but comes with rich I/O ports for high flexibility and easy expansion capabilities.  Built-in Intel low power Bay Trail CPU, it could run in applications that demand reliable operation, consistent performance, and high quality in a harsh industrial environment. In other words, it is suitable for all sorts of industries like factory automation, medical instrument, digital signage, Kiosk, public information station, ATMs, M to M, IoT applications and entertainment equipment.



AMB-BT19S1:

3.5" single board computer(SBC) with Intel Bay Trail SoC, 1 x VGA,1 x LVDS, 2 x GbE, 6 x COM, 7 x USB 2.0, 2 x mini PCIe, 1 x SATA II, 1 x mSATA.



 I/O
 Ethernet  2 x GbE LAN(Optional)
 Expansion Slot  2 x mini PCIe
 Ethernet Chip

 2 x Realtek GbE LAN Chip
 Serial Port

 ● COM1(DB9 connector)
 ● COM1~COM5 x RS232 2.0 pitch pin header
 ● COM6(RS232/485)
 USB

 ● 8 x USB (2 x USB 3.0, 6 x USB 2.0)
 GPIO

 8 bit Digital I/O
 Audio  Realtek ALC888 5.1-channel High Definition Audio
 1 x Line in, 1 x Line out
 Keyboard/Mouse  1 x PS/2 Header for Key Board/Mouse
 SIM  1 x SIM slot



1. Intel Bay Trail SoC, low power consumption.
2. 1 x DDR3L-1333MHz, SO-DIMM, up to 8GB
3. 2 x USB 3.0, 6 x USB 2.0, 6 x COM
4. 2 x GbE LAN, 2 x mini PCIe, 1 x SIM slot
5. 1 x SATA II, 1 x mSATA
6. 12V Input
7. Fanless design



 System
 CPU  1. Intel® Celeron® J1800, Dual-Core, 1M Cache,
     2GHz (2.41GHz), 10W(AMB-BT18S1)
2. Intel® Celeron® J1900, Quad-Core, 2M Cache,
     2GHz (2.41GHz), 10W(AMB-BT19S1)
3. Intel® Atom™ E3815, Single-Core, 512K Cache,
    1.46GHz, 5W (AMB-BT15S1)
4. Intel® Atom™ E3845, Quad-Core, 2M Cache,
    1.91GHz, 10W (AMB-BT45S1)
 Chipset  Intel Bay Trail SoC
 Memory  1 x DDR3L-1333MHz, SO-DIMM, up to 8GB (AMB-BT19S1)
 BIOS  AMI UEFI BIOS
 Video
 Graphic Controller

 Intel® HD Graphics
 Video Memory

 Shared Memory
 Video Interface

 ● 2 x VGA (Resolution up to 2560 x 1600 @ 60Hz)
 ● 1 x LVDS (24-Bit Dual channel LVDS, Resolution  up to 1920x1200 @ 60Hz)



 Storage
 SATA

 1 x SATA II Port + 1 x mSATA



 I/O
 Ethernet  2 x GbE LAN(Optional)
 Expansion Slot  2 x mini PCIe
 Ethernet Chip

 2 x Realtek GbE LAN Chip
 Serial Port

 ● COM1(DB9 connector)
 ● COM1~COM5 x RS232 2.0 pitch pin header
 ● COM6(RS232/485)
 USB

 ● 8 x USB (2 x USB 3.0, 6 x USB 2.0)
 GPIO

 8 bit Digital I/O
 Audio  Realtek ALC888 5.1-channel High Definition Audio
 1 x Line in, 1 x Line out
 Keyboard/Mouse  1 x PS/2 Header for Key Board/Mouse
 SIM  1 x SIM slot



 Power Requirement

 Power Input

 4-Pin power connector

 Power Output

 1 x System FAN 3-Pin Power connector



 Software

 OS Support

 Windows 7 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), Linux (by request)



 Mechanical & Environment

 Dimension

 146 mm x 105 mm (5.7" x 4")

 Operating Temp.

 0~60°C

 Storage Temp.

 -20~75°C

 Safety

 RoHS



 Packing List
 ● 1 x AMB-BT19S1
 ● 1 x Quick User Guide
 ● 1 x Driver CD
 ● 1 x SATA Cable



 Ordering Information
 AMB-BT18S1  Intel Celeron J1800, Dual Core, 1M cache, 2GHz (2.41GHz),
 10W (2 x LAN, 6 x COM)
 AMB-BT19S1  Intel Celeron J1900, Quad Core, 2M cache, 2GHz (2.41GHz),
 10W (2 x LAN, 6 x COM)
 AMB-BT15S1  Intel Atom E3815, Single Core, 512K cache, 1.46GHz, 5W (2 x LAN, 6 x COM)
 AMB-BT45S1  Intel Atom E3845, Quad Core, 2M cache, 1.91GHz, 10W (2 x LAN, 6 x COM)
